Panel Meter, LCD Snap-in, AC Volts, 20Amps, 4.5KW

Panel Meter, LCD Snap-in, AC Volts, 20Amps, 4.5KW

32409-large.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 32409 ME
 Review Average:
 Number of Reviews: 5
 View ReviewsReview this item

Availibilty: In Stock   Units: 12

Email this to a friend

 Detailed Description
We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).

View PDF Data Sheet

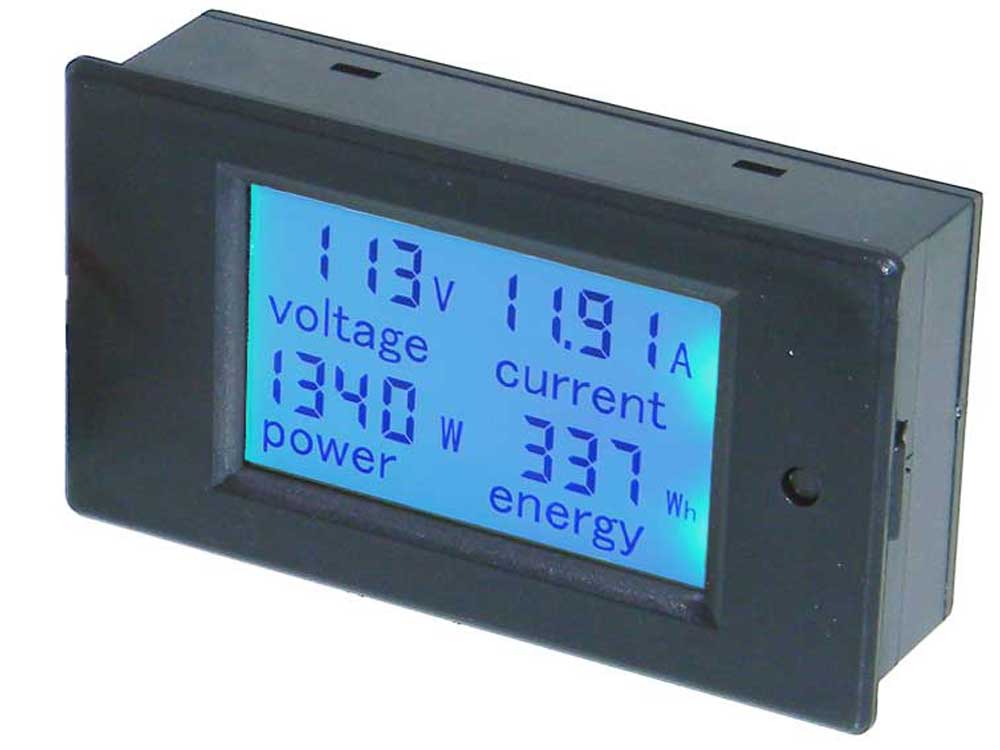

Blue back-lit, Snap-in LCD panel meter that measures
AC Volts, Amps, Watts, Watt hours..
Adjustable Overload function (over power alarm threshold Backlight Flashes.)
Ideal for submetering and monitoring. Terminal Strip for Connections & Back Cover.
Input Voltage: 80-260VAC
Resolution: 1V
Input Range Amps: 0-20A
Resolution: Amps: .01
Watts: 0-4500max
Resolution: <1KW=0.1W, >1KW=1W
Energy Used: 0-9999KWh
Resolution: <10KWH=0-9999WH
Accuracy: +-1% +-1LSD
Cutout: 84.6mm X 44.6mm
W: 3-9/16" H: 2" D: 1” WT: .2

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

 Product ReviewsClick here to review this item
For household use only?
Worked great at 115V. Watt meter readings were very much low at 208V.
- Richard Karlinski, CA
RE: Re: split phase power measurement
Correction to review by Hal Chamberlin: This particular meter does not use an external current transformer, so it can only be used to measure a single phase. If you check the 360 degree view, you will see that it has two terminals for current sense.
Hooman B
Re split phase power measurement
Actually one CAN measure total power in a typical domestic 120-0-120V split-phase power system. Wire up for single phase measurement per the instructions. Then thread the hot current-carrying wire from the other phase through the current transformer in the OPPOSITE direction. The current transformer will then respond to the sum of the two currents.
- Hal Chamberlin, TX
Great product
Used to monitor current changes in small fluorescent ballasts. Excellent item.
Does what it says, but theres a catch
This is a neat little meter, and it does what it says well. Heres the catch: the current metering is on one phase only, and if you intend to monitor a common household, you will only get half of the picture. Perfect for a load that pulls of both phases 220V, but not so much for watching you houses energy usage.
