Panel Meter, DC Snap-in, Multi Function, 300V, 200A, 90KW

Panel Meter, DC Snap-in, Multi Function, 300V, 200A, 90KW

37215-large.jpg  37215-1.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 37215 ME

Be the first to review this item
$21.95


Availibilty: In Stock   Units: 16
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description
We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).
View PDF Data Sheet
DATA SHEET

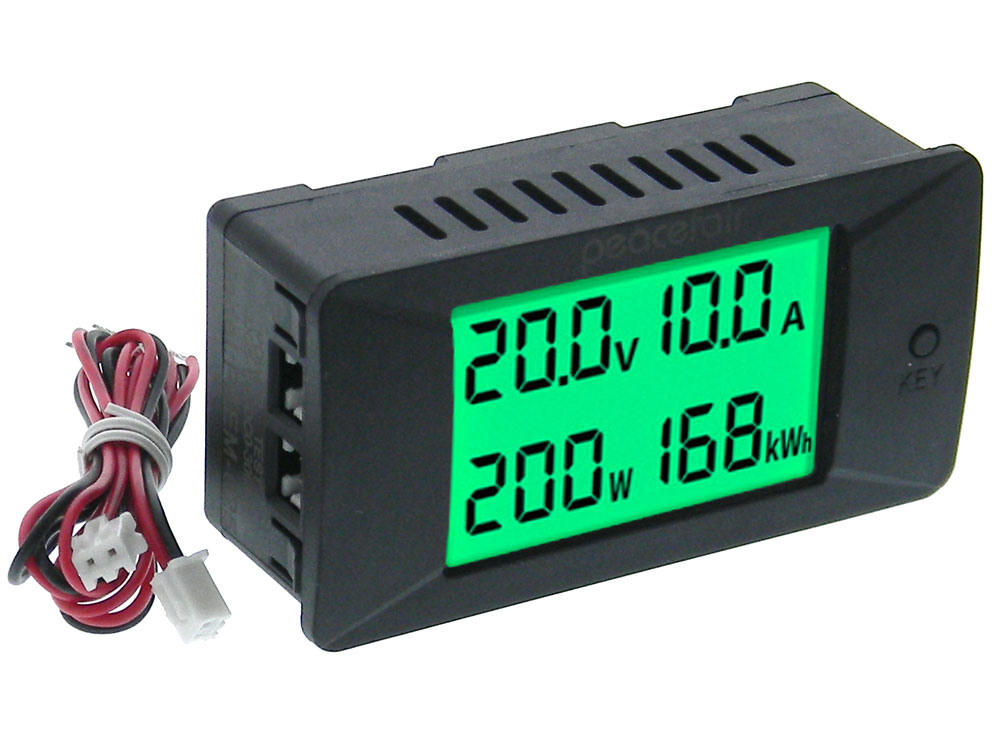

Back-lit, Snap-in LCD panel meter that measures
DC Volts, Amps, Watts, Watt hours.
Ideal for submetering and monitoring.

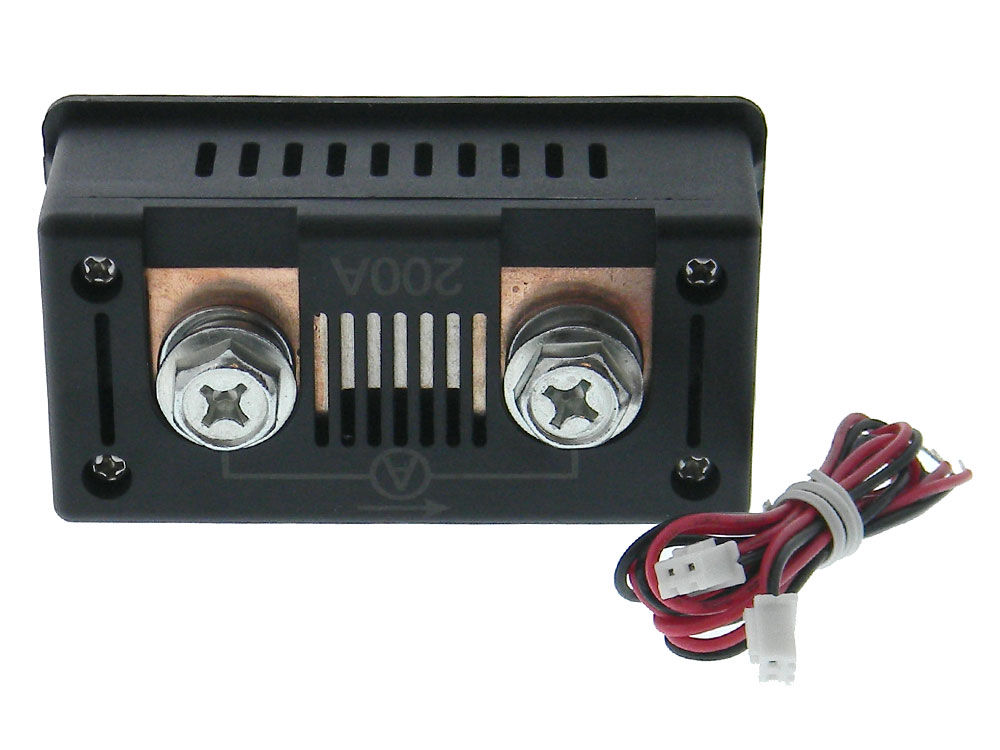

Built in 200A shunt fo easy connections
Terminal Strip for Connections & Back Cover.
Power Input Voltage: 5-12VDC
Test Input Voltage: 0-300VDC
Accuracy: +-1%
Volts Resolution:
.<10V : 10mV
<100V: 100mV
>100V: 1volt
Current Input: 0-200A
Current Resolution: Minimum Rate: 0.02A
<10A : 10mA
<100A: 100mA
>100A: 1Amp
Watts: 0-90KWmax
Watt Resolution: Minimum Rate: 0.1W
<10W : 10mW
<100W: 100mW
<1000W: 1W
<10000W: 10W
>10000W: 100W
Energy Used: 0-999KWh
<1KWh : 1Wh
<10KWh: 10Wh
<100KW: 100Wh
<1000KW: 1KWh
Energy Accrues unless you Reset!
Cutout: 81.7mm X 40.6mm
W: 3-5/16" H: 1-3/4"" D: 1-1/2” WT: .25
