Panel Meter, DC Snap-in, Multi Function, 100V, 20A, 2KW
Detailed Description
We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).

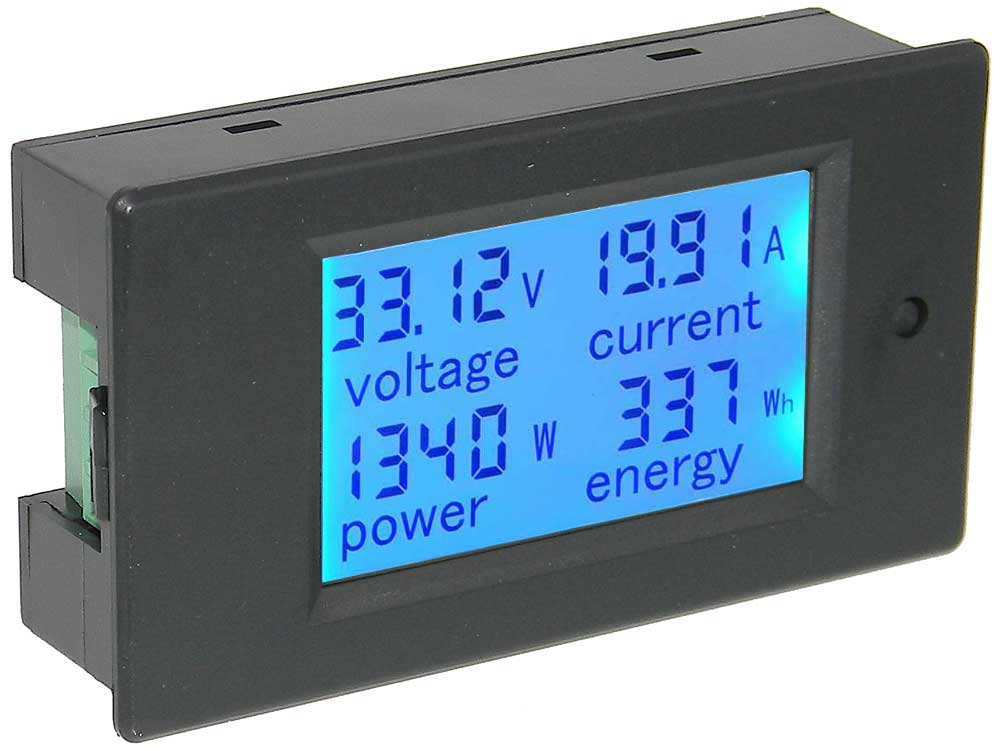

Blue back-lit, Snap-in LCD panel meter that measures
DC Volts, Amps, Watts, Watt hours.
Adjustable Over/Under voltage Alarm (Backlight Flashes)
Ideal for submetering and monitoring.
Terminal Strip for Connections & Back Cover.
Input Voltage: 6.5-100VDC
Resolution: .01V
Input Range Amps: 0-20A
Resolution: Amps: .01
Watts: 0-2KWmax
Resolution: <1KW=0.1W, <2KW=1W
Energy Used: 0-9999KWH
Resolution: <10KWH=0-9999WH, >10KWr=9999KW
Accuracy: +-1% +-1LSD
Shunt: Internal
Cutout: 84.6mm X 44.6mm W: 3-9/16" H: 2" D: 1” WT: .2
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
I have put together a number of meters for troubleshooting power chairs and electric scooters-- it is very handy to be able to see the voltage and charge current at the same time. A nominal range of 30v and 10A works well, but 24v power systems can go over this limit. This meters range of 100v and 20A gives a comfortable margin. A definite keeper!
- Charles T, GA
Nice meter for the price
Works well. Meter power consumption no load is flat at ~1ma back light off and ~2.6ma back light on. Will NOT register or accumulate reverse current no surprise, but does a good job with forward current. Only seriously tested at 12 and 14V with resistive load, no load tested to to 36V.
