Panel Meter, 500V & 20A - 99.9A AC Red LED

Panel Meter, 500V & 20A - 99.9A AC Red LED
Stock Number: 35280 ME
 Review Average:
 Number of Reviews: 2
 View ReviewsReview this item

Availibilty: In Stock   Units: 35

     Email this to a friend

Detailed Description

Not for use below 20Amps

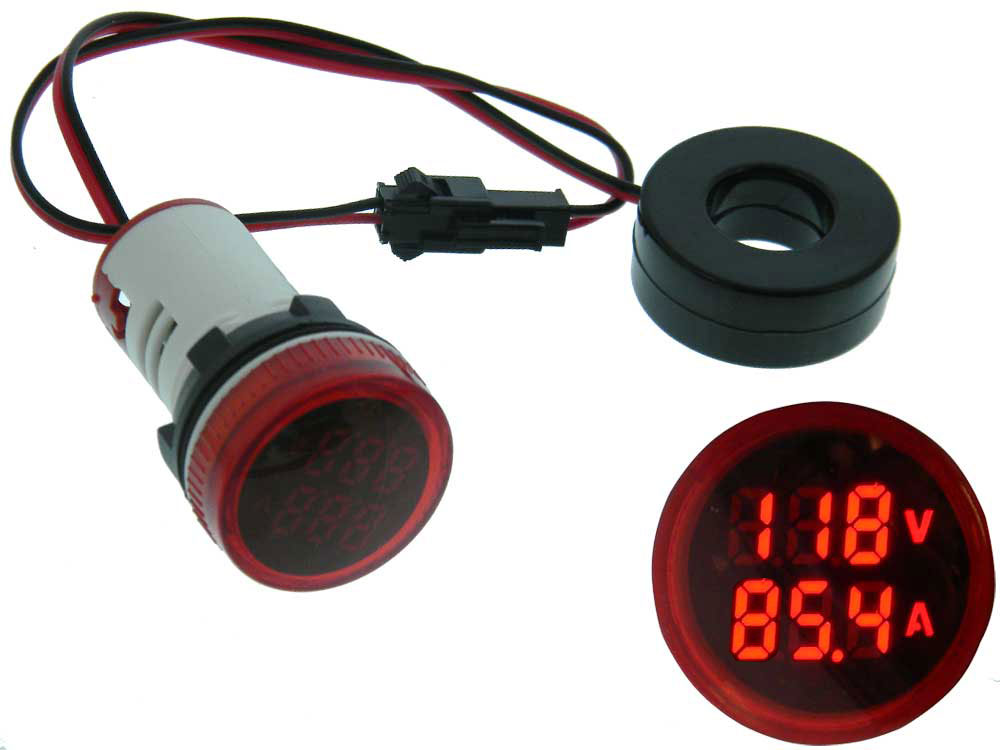

Dual Display AC Volt and Amp Panel meter

Round 3 digit color LED with color lens.
Character Height: 6.5mm
Voltage Range: 50-500VAC 50/60 Hz Sine Wave Only
Resolution: 1V
Amp Range: 20-99.9A
Resolution: .1A
Current Transformer:
I/D: 14.5mm
O/D: 33mm
C/T Pigtail: 170mm
Meter Pigtail to C/T: 140mm
Mounting Hole: 22mm
Temperature: -25"C"~ +65"C"
Humidity: <98%
DIA: 29.3mm L: 50mm WT: .09

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to

 Product ReviewsClick here to review this item
Be aware... 20-99.9A
The specs indicate 20A minimum and measures up to 99.9A. This meter is probably good for the range, but not for low current measurement.
Meter Mike
Inaccurate AC Current Display
I bought two of these meters and installed one of them in the power distribution panel for my shop so I could monitor the current draw of my power equipment and avoid blown fuses. The Voltage readout works well and agrees very closely with two other MPJA AC meter modules 32404 ME and 31496 ME I bought for other purposes. The Current readout however is very inaccurate at low currents. In particular, it reads 0.0A until the actual current is well over 2 amps and continues to read low at higher currents up to 12 amps, the highest I checked. This was the case with both 35280 ME modules I had.
- Hal Chamberlin, TX
