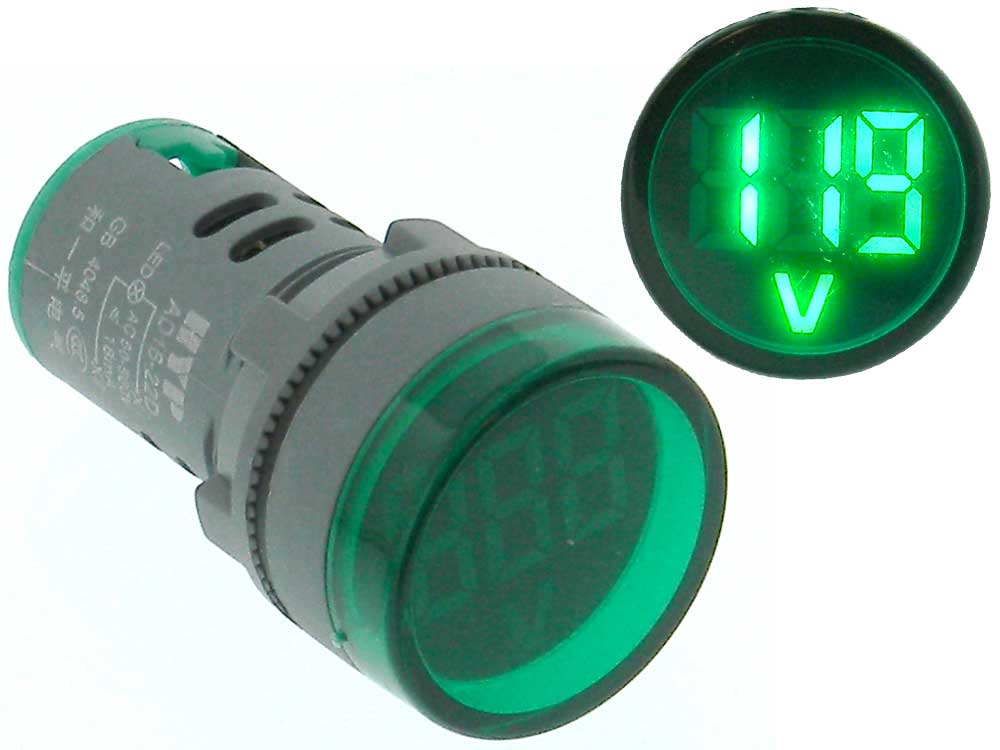

A different style of AC Voltage Panel meter
Round 3 digit color LED with matching color cover
Voltage Range: Sine Wave Only
Min/Max 50-500VAC 50/60Hz
Current: ~ 16mA
Character Height: 11mm (~0.43in)
Temperature: -25"C"~ +65"C"
Humidity: <98% Non Condensing

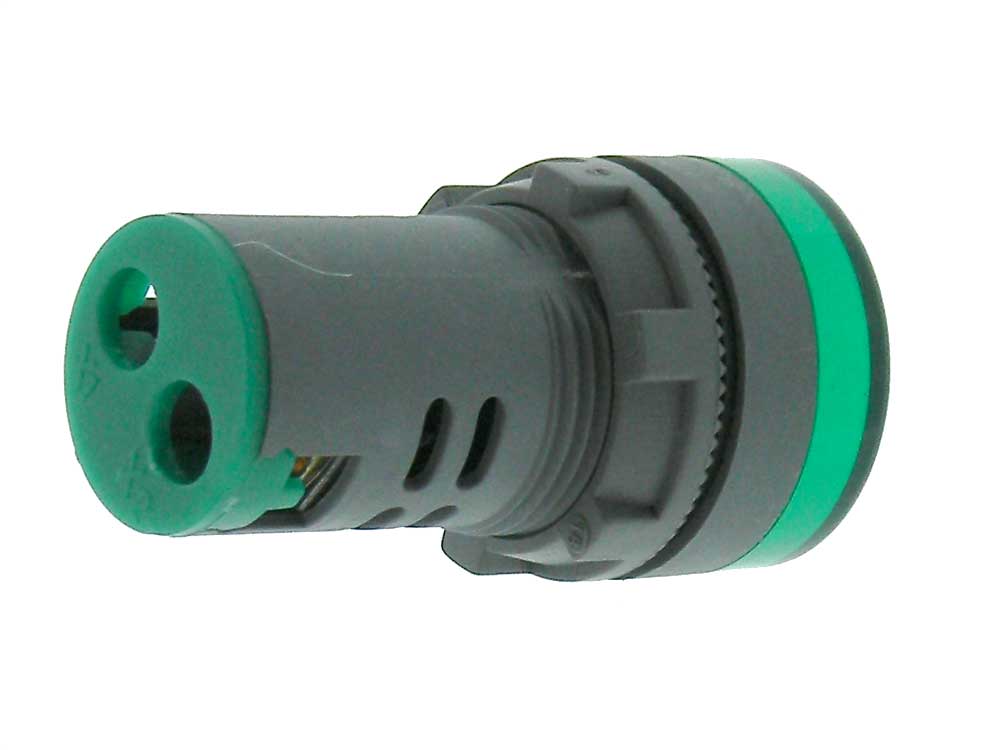

Mounting Hole: 22mm L: 2" Dia: 1-1/8" O/A WT: .04
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
Modification to a meter module running off of 5 volts
These meter module can be modified to run off 5 volts for the meter module when you remove the meter module from its case you see two or three resistors and a capacitor in series to the meter module just have to trace where the two or three resistors are hooked to meter module figure out which one is the meter power supply versus the meter measuring input
The amperage meter is the simplest one to do because you only have the meter module power supply wires are just make sure which connection is possible and which one is negative the current sensor transformer is wired to a connector
Poor quality, inaccurate
Poor build quality, display circuit board mounted at an angle to the front bezel. Compared meter reading to my DVM and it was .2 to .5 volts lower in reading from 6v to 30v output of lab power supply. No cal pot to adjust. Meter lights at about 4.5 volts, but isnt even close in reading til you hit 6.5 volts though input is speced for 6 volt min. Pos and Neg terminals not marked, need to guess which is which! MPJA #19600 works much better!
- Kenneth Scharf, FL
very accurate voltmeter
After testing, I can say that this voltmeter is very accurate, would definitely recommend to anybody in need of one.
