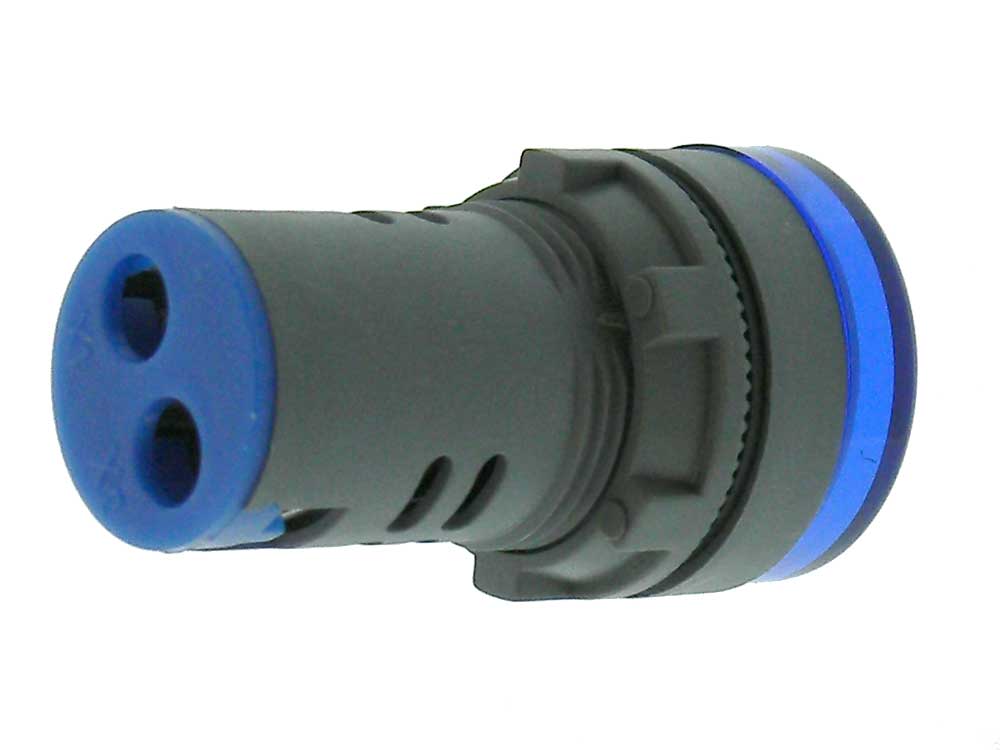

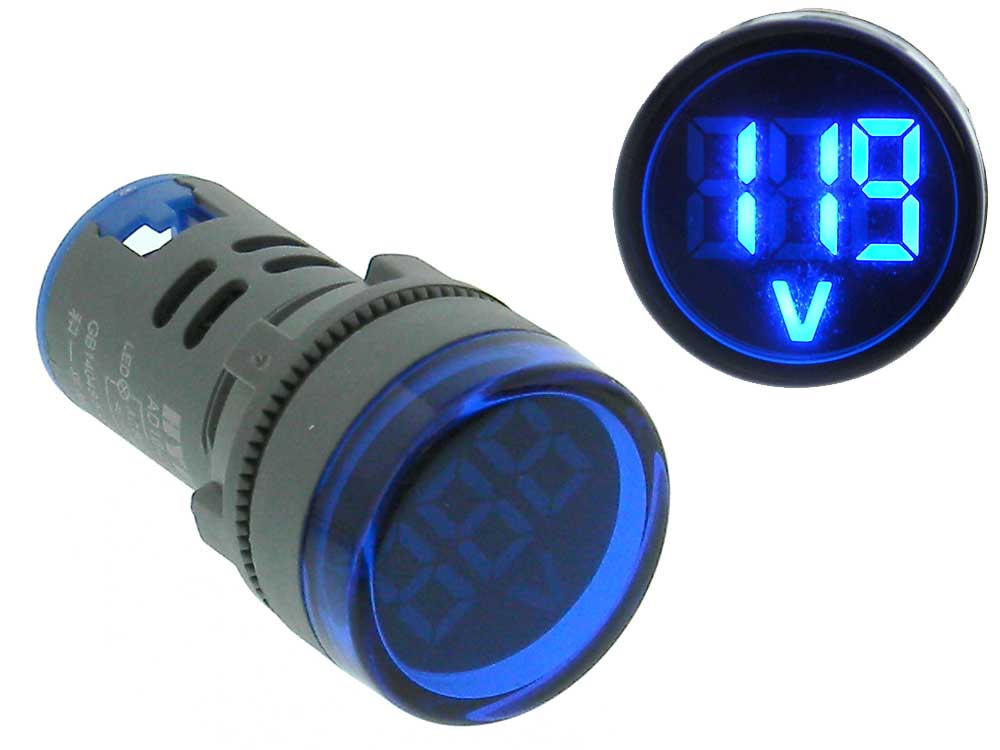

Panel 50-500VAC Voltmeter Blue

Panel 50-500VAC Voltmeter Blue

34660-large.jpg  34660-1.jpg    California Proposition 65 Warning
Stock No: 34660 ME
 Review Average:
 Number of Reviews: 3
 View ReviewsReview this item

Availibilty: In Stock   Units: 108

Email this to a friend

 Detailed Description
A different style of AC Voltage Panel meter
Round 3 digit color LED with matching color cover
Voltage Range: Sine Wave Only
Min/Max 50-500VAC 50/60Hz
Operating: 80-480VAC
Current: ~ 16mA
Character Height: 11mm (~0.43in)
Temperature: -25"C"~ +65"C"
Humidity: <98% Non Condensing
Mounting Hole: 22mm
L: 2" Dia: 1-1/8" O/A WT: .04

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

 Product ReviewsClick here to review this item
Green Is Really Bright
I have four of the five colors. They work as expected with Green especially bright because the human eye is more sensitive to green. Per calibrated DMM is within <1 volt. One is mounted on my computer monitor. My AC line is stable 120 V + 3 V, -2 V.
- Richard Nelson, AZ
Same as the last 2 units. Mounted on panel in open air. Accurate initially. Then after a couple weeks of drifting it was at 133-134 V when actual was 118 to 119. MAYBE if these are used for occasional monitoring they would be ok. NOT for 100% use...
- james schings, KY
For about the price of a pilot lamp assembly...
I bought three of these -- actually two in blue, one in white -- intending to install them in some rack-mount outlet fixtures. Before committing to punching holes, though, I gave them a quick test with a DMM and a variable autotransformer. All three tracked well with each other through the 140v range the autotransformer and within a volt or two of the DMM -- I cannot vouch for the calibration of the DMM but I like to think it is reasonably accurate. They give a readable indication down to around 6V and achieve full brightness at around 35v.
