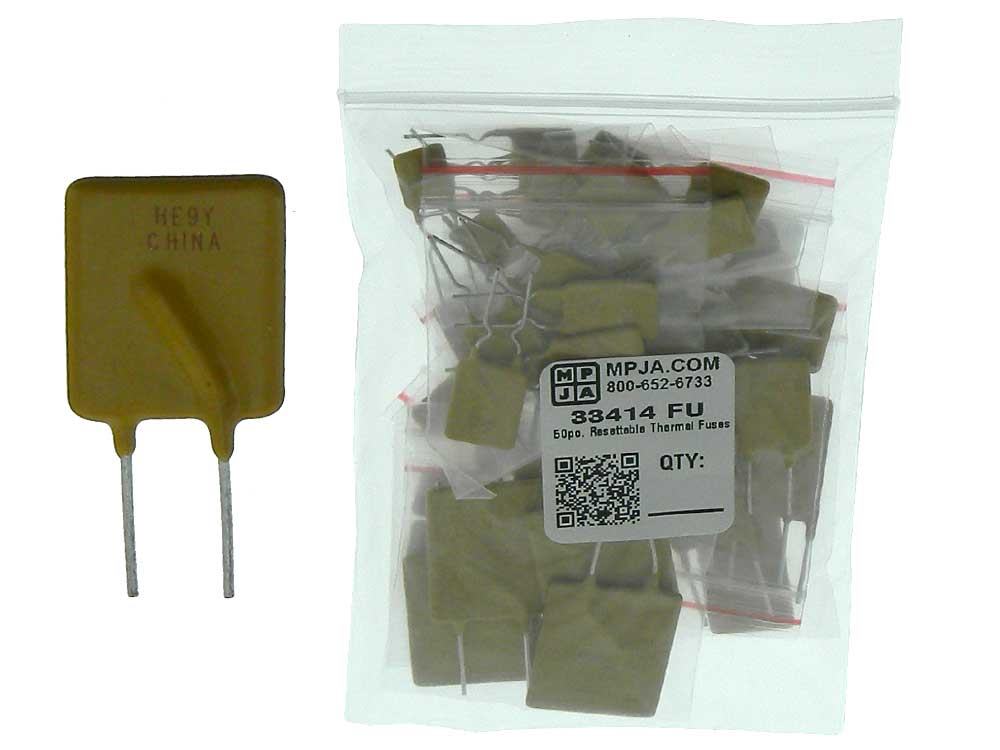

Assortment of 50 Tyco RUEF Series PPTC auto-reset thermal fuses. Thermistor-type devices that limit the flow of dangerously high currents during fault conditions. But unlike traditional fuses that work one time PPTC devices reset after the fault is cleared and power to the circuit is removed. UL listed, RoHS compliant
Rated: 30V
5ea. of 10 Values
Current:
HOLD: 0.9A, 1.1A, 1.35A, 1.6A, 1.85A, 2.5A, 3A, 4A, 5A, 8A
TRIP: 1.8A, 2.2A, 2.7A, 3.2A, 3.7A, 5A 6A, 8A, 10A 16A WT: .08
