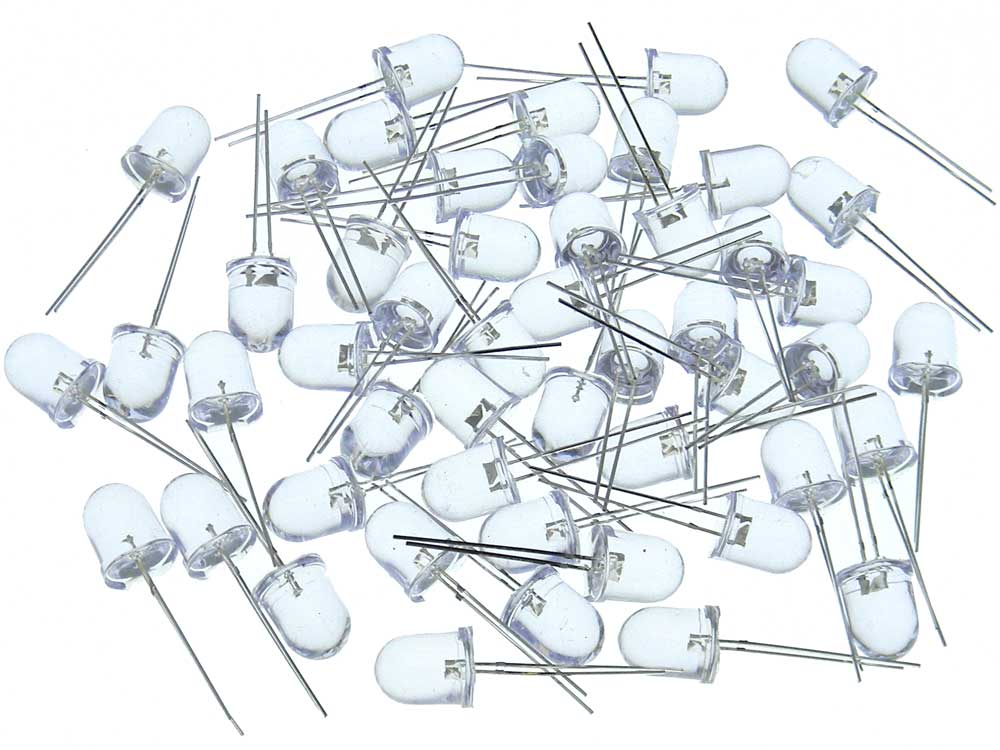

Pack of 50 - 10mm Super Bright White LED. 15000mcd


Pack of 50 - 10mm Super Bright White LED. 15000mcd
Stock Number: 35605 OP
 Review Average:
 Number of Reviews: 2
 View ReviewsReview this item
$4.95


Availibilty: In Stock   Units: 30
Quantity



SHARE

     Email this to a friend

Detailed Description

Sold in Packs of 50
Cool White,(5500K), 10mm Super Bright LED in a Water clear case. 15000mcd, typ. light output . Max forward current 30mA continuous, 20mA recommended.
5VDC Max reverse Voltage.
3.8VDC typ. 4.5V max. Forward voltage drop.
NOTE: Requires a series resistor to limit current to ~20mA
15deg. View angle.
1" leads.
WT: .004

View PDF Data Sheet
DATA SHEET


California Proposition 65 Warning WARNING: This product can expose you to chemicals including arsenic which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov



 Product ReviewsClick here to review this item
Not as bright as 8mm 55 lumen LEDs
The big boys have a "focused" spot beam (about 2 feet across from 5 feet). Sanding them with 600-1000 grit spreads the beam a little. These run cooler than the 8mm at 3 volts and 20mA vs: 3 volts and 200 mA for the 8mm guys. Both are easy to work with for plastic model interior lighting. The VALUE of both is SUPER! Do I wish MPJA could source us some "Hyper-brite" 5mm LEDs? But they wouldn't be less than a dime each, would they?
- Ricky Earp, OK

Do Not Stare Into Beam with Remaining Eye
These things are bright! But it pays to read the datasheet, as the MPJA description contains a typo: The typical forward voltage at 20 mA is 3.2 volts, not 3.8. Six in series driven by a 24-volt power supply means dropping 4.8 V across a 240-ohm ballast resistor, not 1.2 V across a 60-ohm!
- B H, NC
