Pack of 5 - 5.08mm Mating Connectors 2, 3, 4, 5 & 6 Position

Pack of 5 - 5.08mm Mating Connectors 2, 3, 4, 5 & 6 Position

36153-large.jpg  36153-1.jpg    California Proposition 65 Warning
Stock No: 36153 PL

Be the first to review this item
$3.95


Availibilty: In Stock   Units: 254
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description

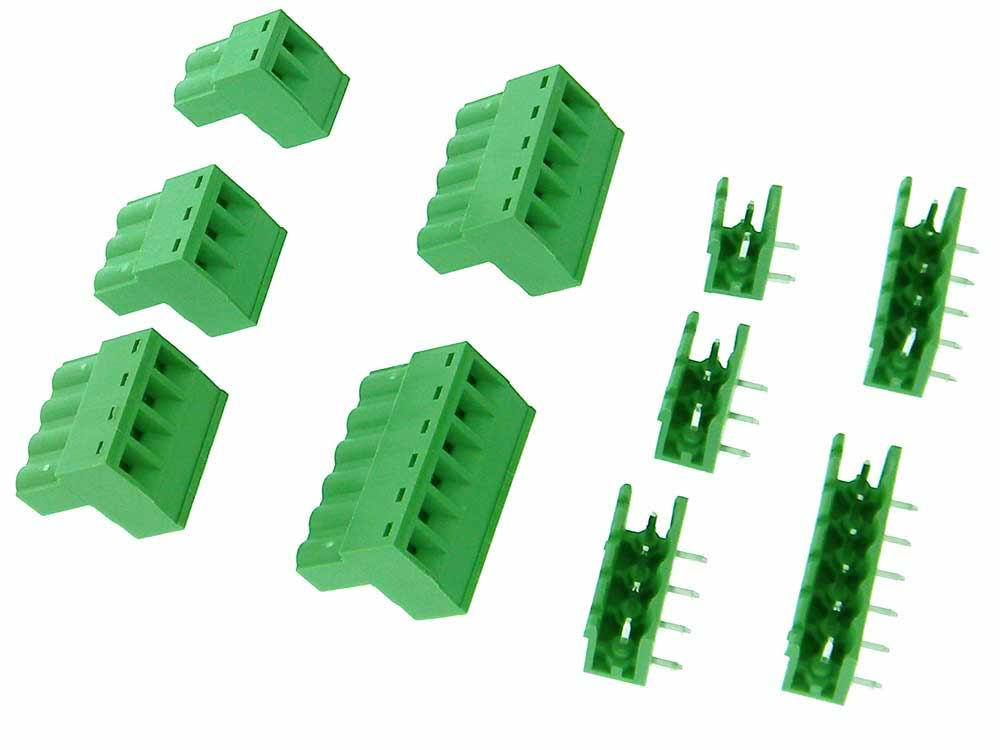

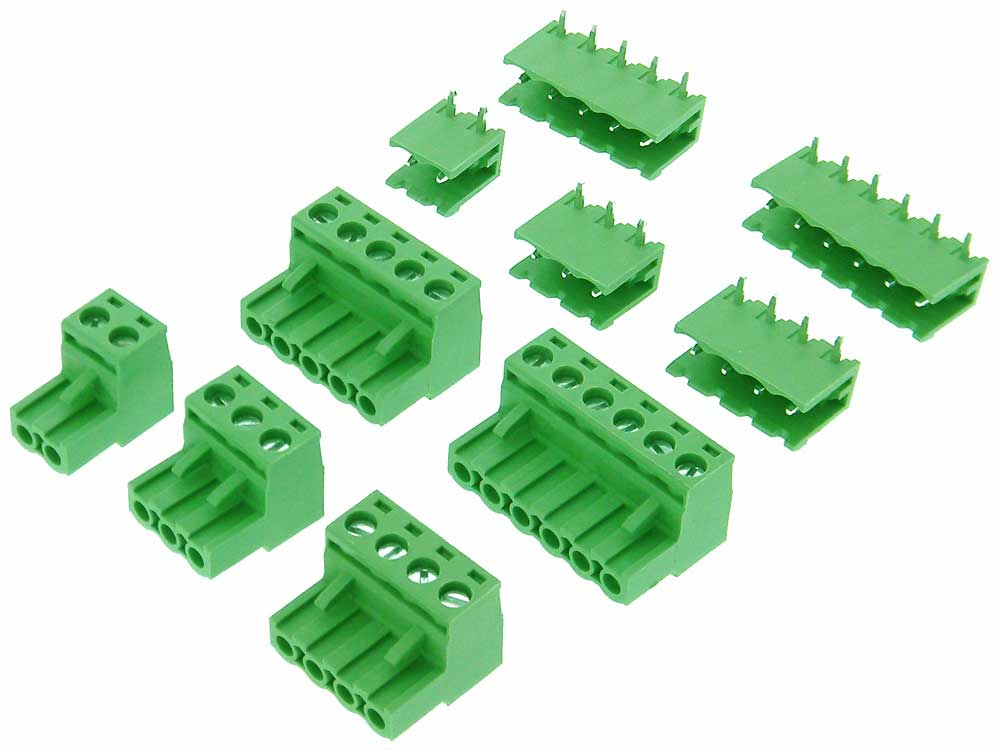

Kit Pack of PC mount board header and mating screw terminal Plugs.
1 Pair each 2,3,4,5 & 6 position
PC Mount Right Angle Header Pins,
Straight Screw Clamp Sockets for wires
Pin Pitch: 5.08mm C/C.
Wire: 12-28AWG
Rated:Voltage: 300V
Current: 10A
Contact: Nickel plated Phosphor Bronze
Strip Length: 7-8mm
SOLD AS SET Total 10pcs
WT: .06/Pack

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
