Pack of 4 - SPST Lighted 12V Toggle Switch Short Handle RGBY


Pack of 4 - SPST Lighted 12V Toggle Switch Short Handle RGBY
Images/36127-large.jpg Images/36097-1.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 36127 SW
 Review Average:
 Number of Reviews: 2
 View Reviews | Review this item
$3.95


This item is NO LONGER available. Please use our SEARCH feature and see if you can find an alternate item for what you were looking for.
This item is no longer available


SHARE

     Email this to a friend

Detailed Description

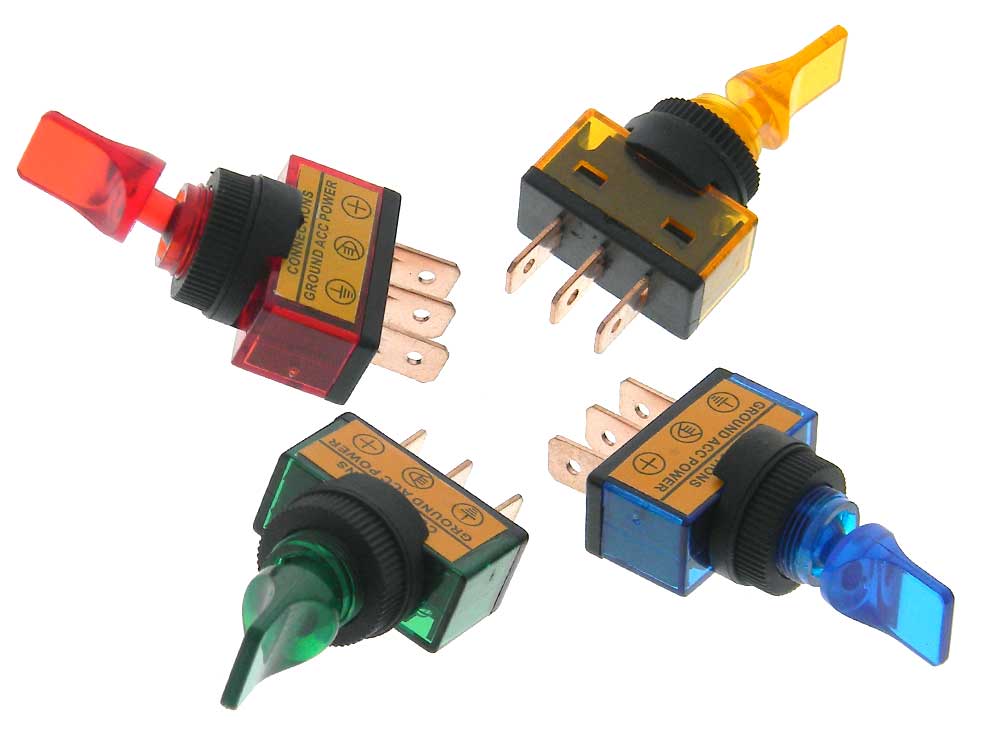

Pack of 4 pieces
1 each Red, Green, Blue and Yellow
SPST, 12VDC lighted standard sized toggle switches with Short-Flat handle.
Rated: 20 Amps @ 12VDC.
Contact Resistance:50m Ohm
Operating Temperature:-25º C to +85º C
Switch contact is between "ACC" & "POWER" terminals.
NOTE Lamp is internally connected between the load terminal (ACC) & and GND terminal.
Terminal "POWER" = +12V
Terminal "ACC" = Load
Terminal "GROUND" = Common
Mounting Hole: 12mm
Connection: .250" Quick Connect terminals.
L: 26.2mm W: 19mm H: 43mm (Body) WT: .09

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!


 Product ReviewsClick here to review this item
value for your money
The toggle lights were very visible and worked well for my application.
LA

incorrect description
The switch schematic drawing and description are not the same. One of them is wrong. Needs revision..
