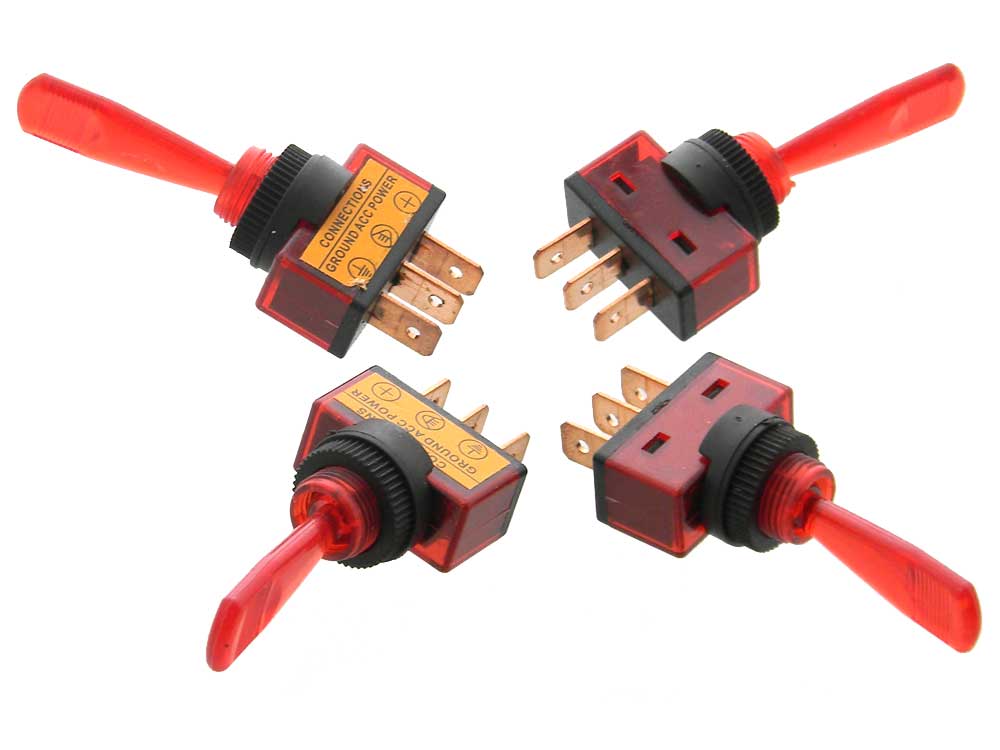

Pack of 4 - Red SPST Lighted 12V Toggle Switch Long Handle
Pack of 4 pieces
SPST, 12VDC lighted standard sized toggle switches with Long-Flat handle.
Rated: 20 Amps @ 12VDC.
Contact Resistance:50m Ohm
Operating Temperature:-25º C to +85º C
Switch contact is between "ACC" & "POWER" terminals. NOTE Lamp is internally connected between the load terminal (ACC) & and GND terminal.
Terminal "POWER" = +12V
Terminal "ACC" = Load
Terminal "GROUND" = Common
Mounting Hole: 12mm
Connection: .250" Quick Connect terminals. L: 26.2mm W: 19mm H: ~56mm WT: .09/Pack of 4
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
Nice long handle at a great price. Looks great in my panel.
- Bob, IL
Not really illuminated
There’s a small, dim led in the base, to the side. It does not I in any way light the toggle of the switch. If mounted, it’s entirely not visible since the led is under the mounting. Really strange configuration. Why light the side on the base of the switch but not the switch toggle itself? Rejects?
