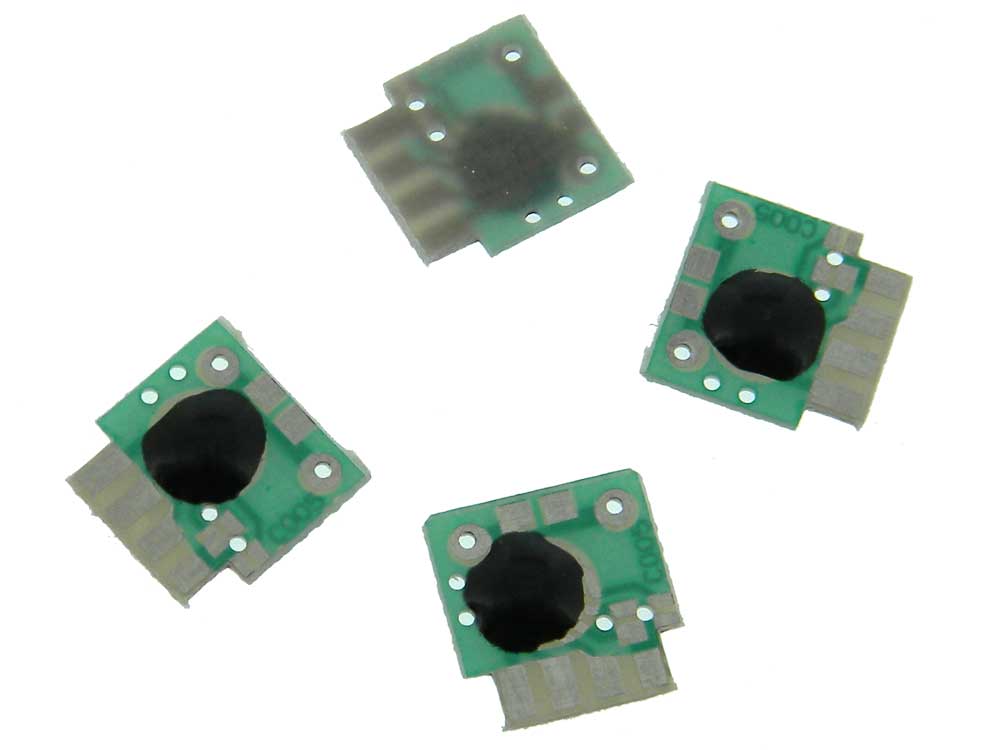

Sold as a Pack of 4 Mini Time Delay Board
Super board for generating long Time Delays.
Can use thru-hole or SMD timing resistor (RT) (Not Supplied)
Range: ~5.8sec. to 107min Basic
By using P-1& 2 Time can be extended to
~49min to >900hrs (X 8, 16 or 512)
Starts on the Falling Edge of the trigger pulse (TTL)
or SPST-NO switch (Not Included)
Does NOT retrigger until the next Falling Edge AFTER
Output: Current Sink: 30mA max. SQ:12mm H: 1mm WT: 002
