Pack of 100 -5mm Ultraviolet LED, 400nM

Pack of 100 -5mm Ultraviolet LED, 400nM
Stock Number: 35515 OP
 Review Average:
 Number of Reviews: 3
 View ReviewsReview this item

Availibilty: In Stock   Units: 16

     Email this to a friend

Detailed Description

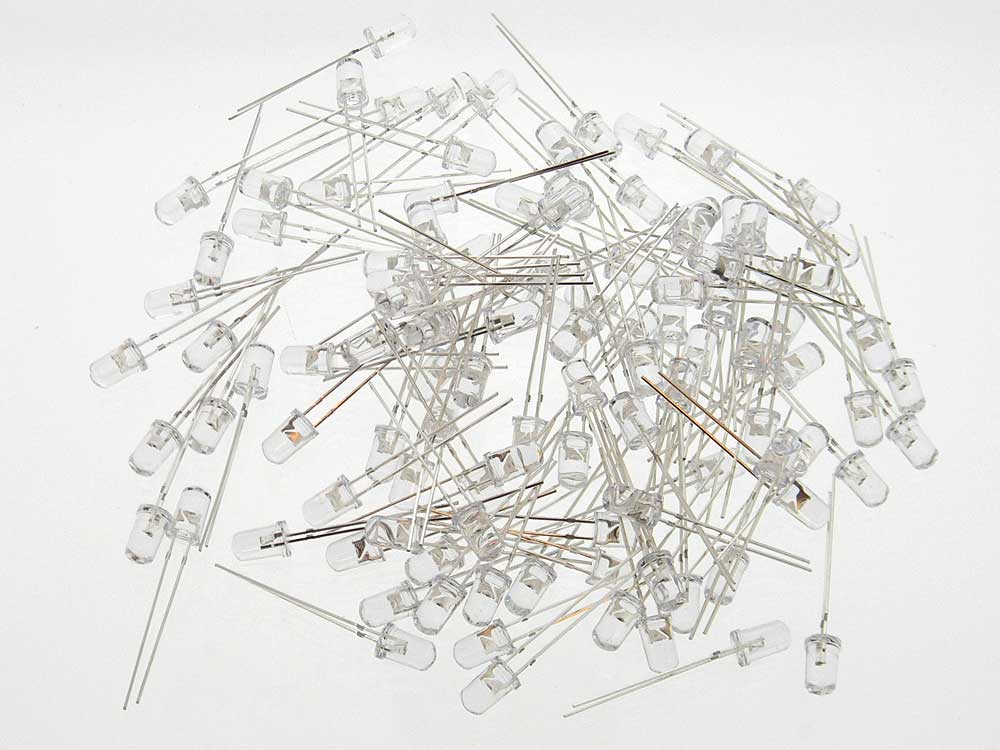

Sold in Packs of 100 Pieces
T1-3/4 (5mm) LEDs. Water clear transparent case. 400nM peak emission, 35nM spectrum1/2 width. 80mcd intensity min. Max forward current 20mA continuous, 5VDC Max reverse Voltage. 3.6VDC Forward voltage drop. Produces light in the near UV (super purple) & upper UV-A range. Causes fluorescence in dyes, inks, threads etc. Used in money, safety papers, leak inspection etc. 1" leads.
WT: .04

California Proposition 65 Warning WARNING: This product can expose you to chemicals including arsenic which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to

 Product ReviewsClick here to review this item
I'm cured!
I ordered these LEDs to experiment with UV Resin curing. THEY WORK ON THE "UV RESIN" I CURRENTLY USE (withholding product name out of Professional Courtesy)! Time to (try and) build a "Binford" UV Curing Lamp... :)
- Ken Simmons, WA
These LEDs perform better than I expected for curing UV glue. Came up with my own circuit to increase their mcd output and they work better than my friends UV flashlight that he paid $$ for.
Quality LEDs
These LEDs appear to be very high quality, I have had no problems with them so far.
