Pack of 10pcs

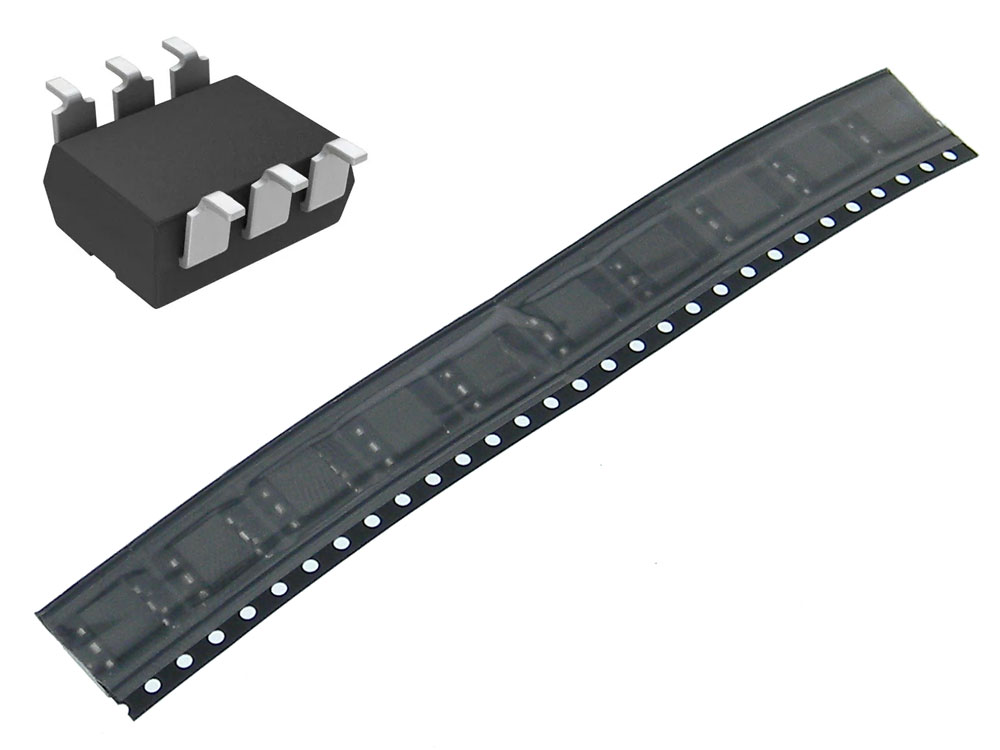

Surface Mount, 6 Pin DIP, Everlight 4N35 Opto coupled NPN Photo Transistor
Isolation Voltage: 5000Vrms
Input: I/R LED
Forward Voltage: 1.2V Typ. 1.5V Max
Forward Current: 60mA
Reverse Voltage: 6V
Output: NPN Photo Transistor
Collector Emitter Voltage: 30V
Transfer Ratio: 100 min %
Power Dissipation: 150mW WT: 0.01/Pack
