We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).

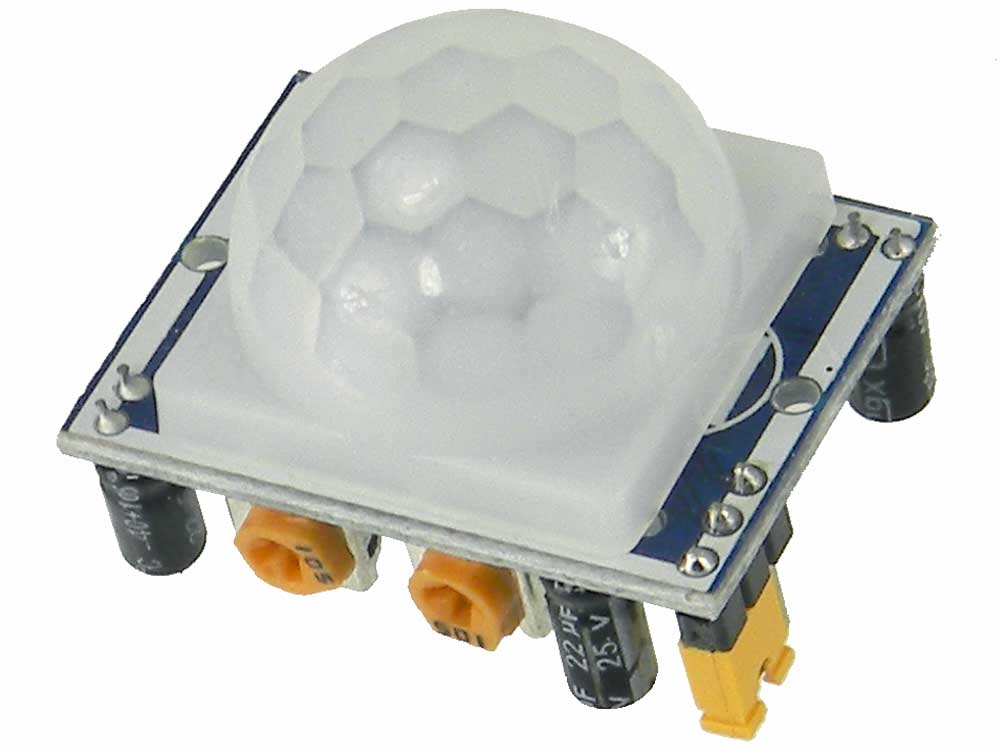

Latest Dual Element PIR Motion Detector for the human Body with adj. 3-10 lux light sensor. 3V digital output to drive Your external transistor & relay (not included)
5-20VDC Operation @ <1mA .
2 S-5min. Adj. delay
Adj. 3-7m range with <120 degree detection angle.
Selectable Retrigger/No Retrigger L: 32mm W: 23mm H: 25mm WT: .08
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
This is a really nice module to have if you want to learn how a Pyroelectric Infrared sensor works.
Due to the fact that this senses Infrared radiation, light shining directly on the module will cause it to send a signal as if a human were actually there when in reality it isnt.
It is best recommended if you position the sensor facing away from light for better results.
