Multifunction Component Tester


Multifunction Component Tester
Stock Number: 35795 TE
 Review Average:
 Number of Reviews: 4
 View ReviewsReview this item
$25.95


Availibilty: In Stock   Units: 10
Quantity



SHARE

     Email this to a friend

Detailed Description


View PDF Data Sheet
DATA SHEET

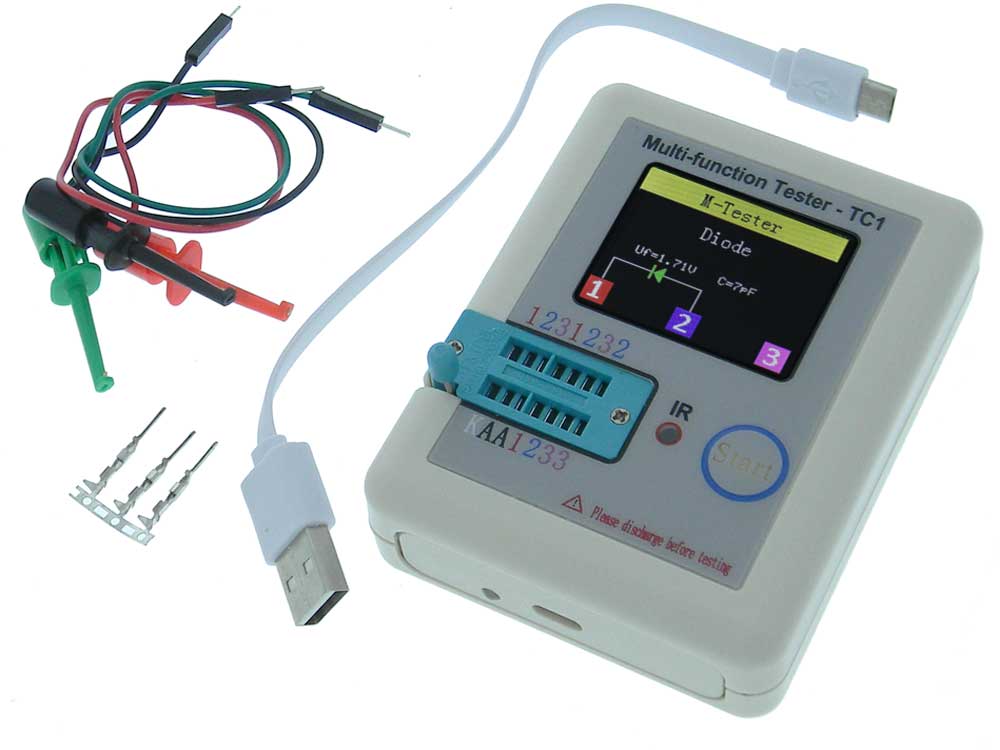

Handheld tester with a ZIF test socket used to identify & test capacitors, inductors, resistors, NPN/PNP, N and P-channel MOSFETs, IGBT & JFET transistors. Signal & rectifier, Zener Diodes, Triacs and battery cells.
It can also be used to detect infrared wave forms.
After detection, align the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form.
Display: 1.8inch TFT Screen
Diode Range: < 4.5V
Transistor Detect Range: 0.01-4.5V
Zener Diode Detect Range: 0.01-30V
Triac Range: IGT < 6mA
Capacitance Range: 25pF-100mF
Resistor Range: 0.01-50M Ohm
Inductance Range: 0.01mH-20H
Battery Range: 0.1-4.5V
Power: Internal Rechargeable Lithium Battery
Includes: 6" USB Charging Cable & Three 7" Micro Clip Leads
H: 3-1/2" W: 2-3/4" T: 1-1/8" WT: .3
