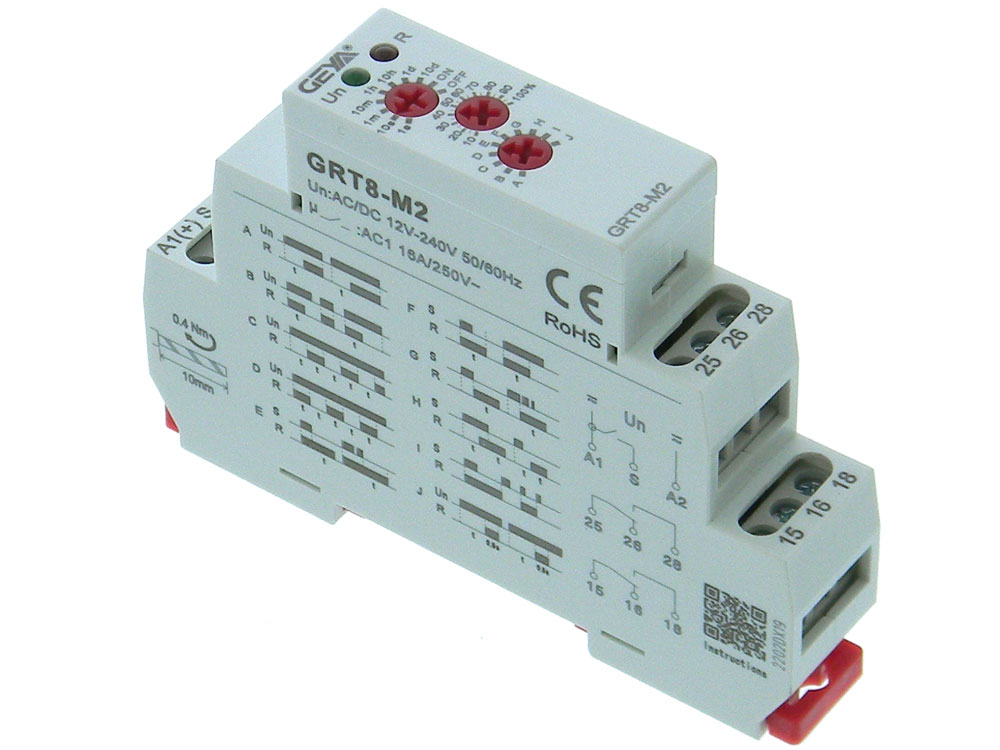

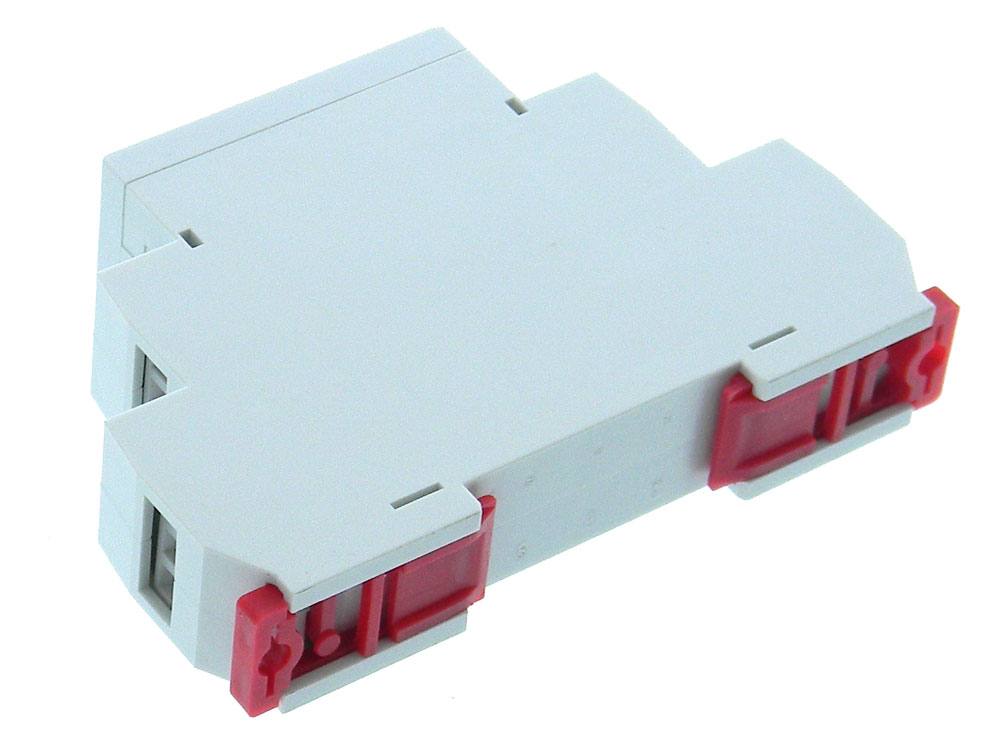

Multi-function Time Relay - DPDT - 12-240VAC/DC


Multi-function Time Relay - DPDT - 12-240VAC/DC
Images/37794-large.jpg Images/37794-1.jpg Images/360-3D.jpg   California Proposition 65 Warning
Stock Number: 37794 RL
  Be the first to review this item
$24.95


Availibilty: Out of Stock
Call 800-652-6733 for availability date
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

DIN Mount, Timed Relay features10 setable functions.
Used in lighting, pumps, HVAC, CNC tools etc.
Power: 12V-220V AC/DC
Contacts: DPDT
Rated: 16A @ 250VAC/24VDC
Time Range: 0.1Sec to 10 Days in 10 ranges
Functions: 10: Best You Download Data Sheet for Better Explanation
1: At Power ON: Delay on Make
2: At Power ON: Delay on Break
3: At Power ON: Repeat Cycle Start ON (ON/OFF/ON...)
4: At Power ON: Repeat Cycle Start OFF (OFF/ON/OFF...)
5: At Power ON : 1 Shot: 0.5sec Single Pulse After Time Delay. Once per Power ON
6: With Power ON Triggered Delay on Break (Retrigger Restarts)
7: With Power ON: Alternate Action. Each Trigger Reverses Contacts
8; With Power ON: Triggered Delay on Make Followed with Delay on Break
9: With Power ON: Delay on Make Trailing Edge Trigger
10: With Power ON: Delay on Break, Trigger Locked out for complete Cycle.
Compression Screw Trrminals.
CE/RoHS
L: 90mm (3-1/2") T: 18mm (11/16") H: 64mm (2-1/2") WT: .2
