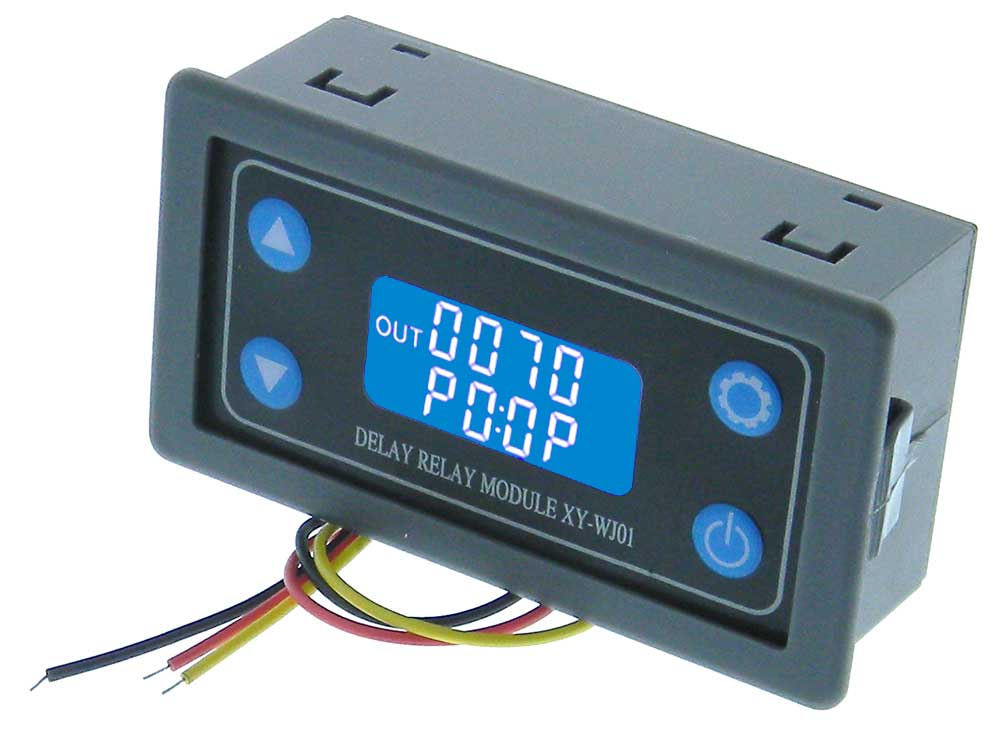

Multi Function Time Relay SPST-NO


Multi Function Time Relay SPST-NO
Stock Number: 35874 RL
 Review Average:
 Number of Reviews: 4
 View ReviewsReview this item
$9.95


Availibilty: In Stock   Units: 36
Quantity



SHARE

     Email this to a friend

Detailed Description


View PDF Data Sheet
DATA SHEET


Multi function Timer with multiple timing modes Liquid Crystal Display.
Delay OFF, Delay ON with Lock out, retrigger, Stop on retrigger
Recycle (Loop)
OFF, ON & # of Loops independently programmable.
Supports High & Low Level Triggering, Optocoupler isolation
Reverse Polarity Protected
Sleep mode. After enabling, if there is no operation for ~5 minutes, Backlight turns off (Any button wakes up)
All setting are automatically saved at power-off.
One-button pause function
Power: 6-30VDC
Quiescent Current: ~15 mA
Working Current: ~50 mA
Timing Range: 0.01 sec~9999 min
Trigger Signal: High-level: 3.0V~24V, low-level: 0.0V~0.2V
Relay: SPST-NO Isolated Contacts
Contacts: 10A/14VDC, or 5A/110VAC
Operating Temperature: -40~85 °C
Connections: Terminal Strip for Power & Relay
Trigger: Header on back with 8" Pigtail
W: 3-1/8" H: 1-7/16" D: 1" WT: .1
