Multi Function Time Relay SPDT


Multi Function Time Relay SPDT

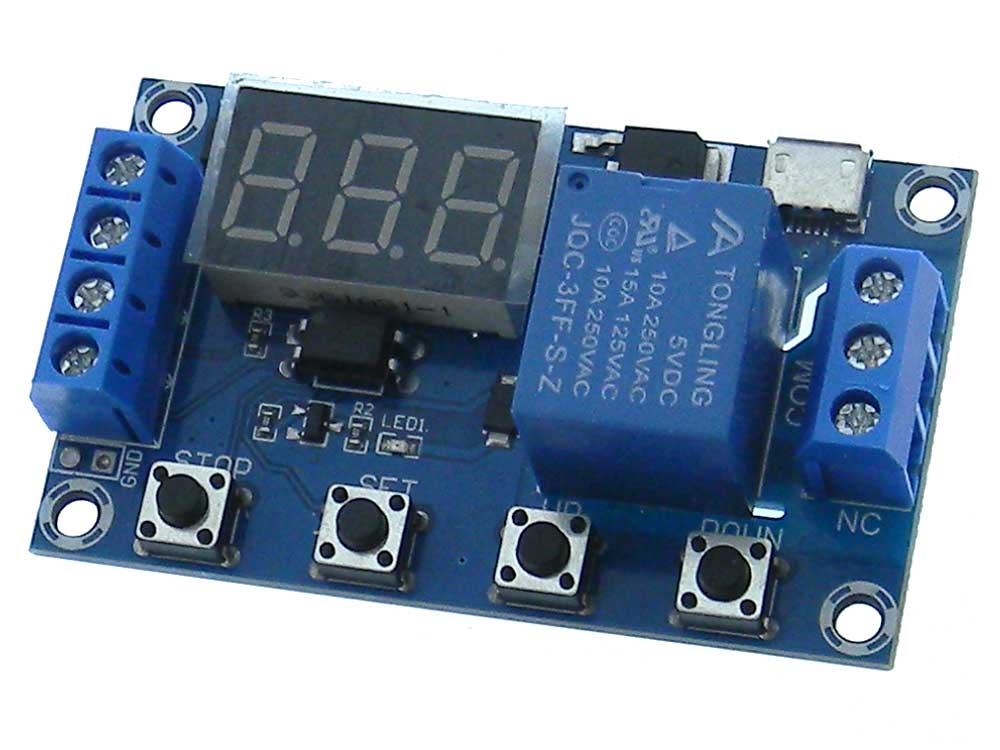

Images/38581-large.jpg   California Proposition 65 Warning
Stock Number: 38581 MP
  Be the first to review this item
$6.95


Availibilty: In Stock   Units: 12
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

Microprocessor based, programmable, triggered timing module. Opto-isolated trigger input starts timing.
Programming requires patience and practice.
Programmable as a Delay on Start, Delay on Stop or Recycling.
Programmable ON/OFF Times & Number of Recycles (Looping)
Time Ranges: 3
Range:0.1sec. to 999min.
0-999 Minutes 1 Minute Resolution
0-999 Seconds 1 Second Resolution
0-99.9 Seconds .1Second Resolution
Power: 6-30VDC
5V Only on the USB input
Current: Standby: <20mA <60mA Relay energized
Trigger Voltage; 3-24VDC
Relay: SPDT
Contacts: 10A 125/250VAC/30VDC
Terminal Strip for Relay Contacts
Terminal Strip for Power & Trigger
USB Micro B for 5V only Power.
L: 2-1/2" W: 1-1/2" H: 3/4" WT: .06
