Multi Function DC Panel Meter - 100Volts - 10Amps - 1KWatts


Multi Function DC Panel Meter - 100Volts - 10Amps - 1KWatts
Stock Number: 37899 ME
  Be the first to review this item
$14.95


Availibilty: In Stock   Units: 49
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

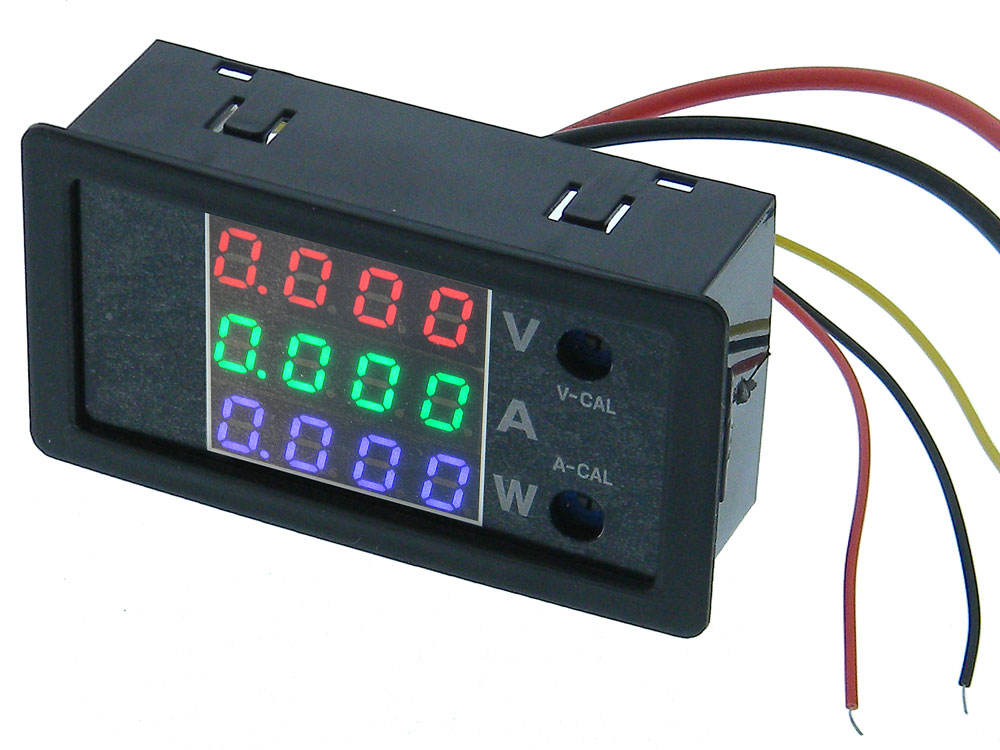

Snap-in panal meter with 0.28" Character Height, 3 line LED display.
Operating Voltage: DC 8~24V (Separate Power required if measured voltage is <8 or > 24VDC)
Operating Current: <30mA
Measured Voltage: 0.000~100.0V (Red LED Display)
Measured Current: 0.000~9.999A (Green LED Display)
Measured Power: 0.000W~1000W (Blue LED Display)
Volt and Amp calibration pot on meter face.
Refresh Rate: ~300ms
Accuracy: 1% (1 digit)
Operating Temperature: -10 to 65C
Operating Humidity: 10 to 80% (non-condensing)
Cutout: 72.0mm x 39.0mm
W: (3-1/8") H: 42.25mm (1-21/32") T: 27mm (1-1/8)
WT: .06
