Motor Speed Control, DC 20A Surge, 6-24V

Motor Speed Control, DC 20A Surge, 6-24V
Stock Number: 31566 MD
 Review Average:
 Number of Reviews: 6
 View ReviewsReview this item

Availibilty: In Stock   Units: 17

     Email this to a friend

Detailed Description

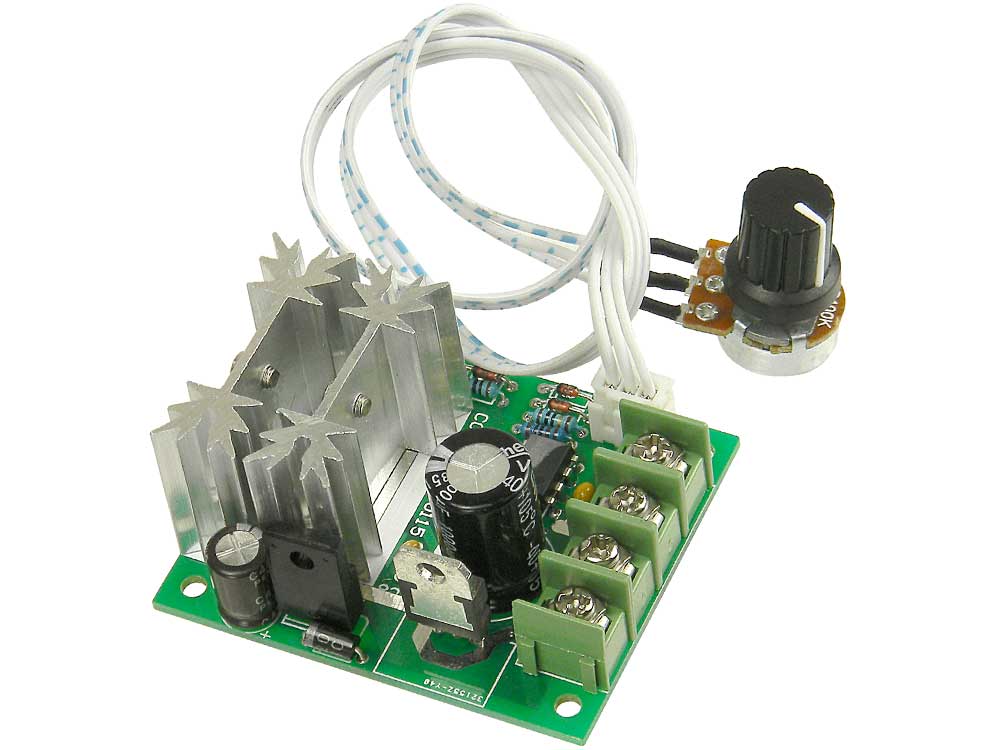

Wide range control uses PWM to vary the speed of DC motors. Remote adjustment pot (included) connects to board by a 12” cable to header pins. Terminal strip for power & Motor connections.
Input: 6/12 or 24VDC
Output: 20A max surge.
Recommended: 6V/60W, 12V/120W, 24V/200W
Range: 5%-99% of rated motor RPM
Max. Frequency: 21KHz.
L: 2-3/8 W:H: 1-1/8” O/A WT: .15

View PDF Data Sheet

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to

 Product ReviewsClick here to review this item
nice controller
works really well doesnt seem to reduce torque that bad. good cheap solution for dc speed control
Great Motor Controller.
What can I say. Great motor controller for DC motors. It is now deployed as a sub assembly in our product. Fuse protected to our specifications.
Test First
After two 12 volt 12 amp power supplies fried, 20 amp fuse in ammmeter blew checking input load.
Hints in use
Nice variation is to use an audio taper or log taper pot instead of the linear for smoother control. You would do well to run the pot wires inside a shield if you go very far or near the motor leads. You dont want any switching trash to get back in. If youre mechanical, make it into a foot control.
Great Deal!
Exactly what I wanted. Used it to control the speed of a 12 volt motor driving the table on my metal mill. Extended the control pot wires about 3 feet to mount in an easy to reach location. Speed adjusts smooth across the range. Good quality construction and parts. Connections were clearly and correctly marked. Not much else to say, it just works.
Good Control
Does exactly what it said it would do and worked great .
