We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).

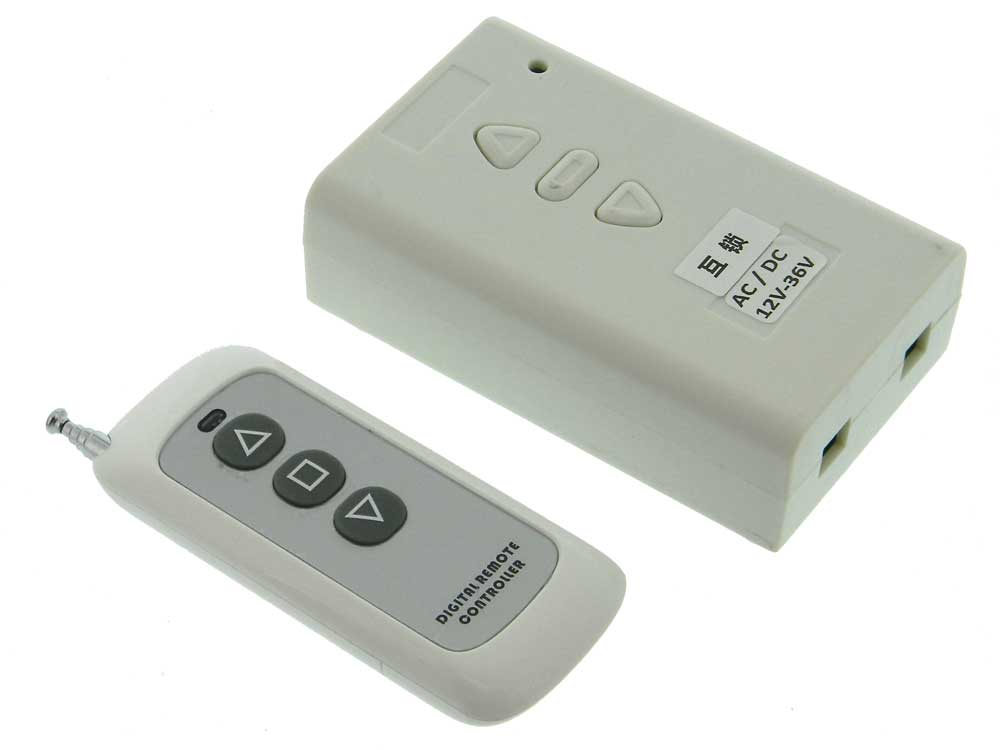

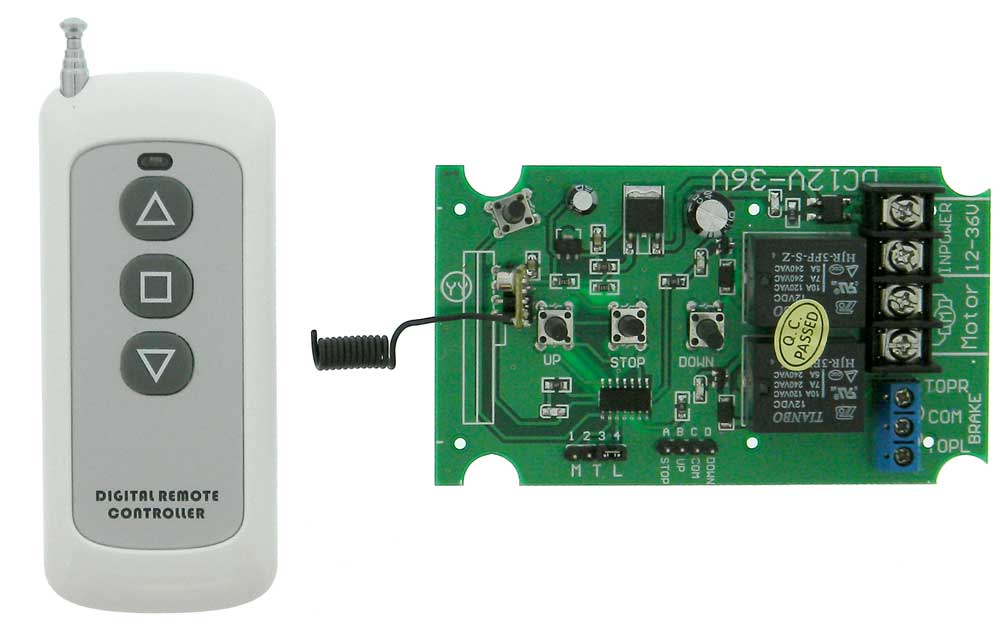

Motor reversing remote controller for DC motor up to 60Watts with inputs for Limit Switches (Not included) and Brake Switches (Not included). Includes 3 button Remote Control. Controls direction by reversing the polarity on the 2 motor output terminals.
Ideal for Gates, Overhead doors etc.
Power: Controller: 12-36VDC
Remote: A23 12V Battery (Not Supplied)
Modes: Jog & Cycle (Set By Jumper)
Range: >50ft. Depending on Antenna location/extension and
Output: 12-36VDC 60W/Max 5A (10surge) Fwd/Off/Rev
Connections: Terminal Strips Motor & Power
0.1Pitch header for Limit Switches & External Wired
Direction Switches L: 4 W: 2-3/8 T: 1-3/16 Ship WT: .3
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the Prop 65 law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
I just set this up to remotely open and close a dust collection blast gate at my table saw. I used a DC gear motor with lead screw and its working perfectly in this application. Important tip: When programming the remote, tap the LEARN button a very quick dit. Do the same with the remotes 3 buttons. Then tap LEARN button again to complete programming. It was frustrating initially, as I was pressing the buttons too long and the programming kept failing.
