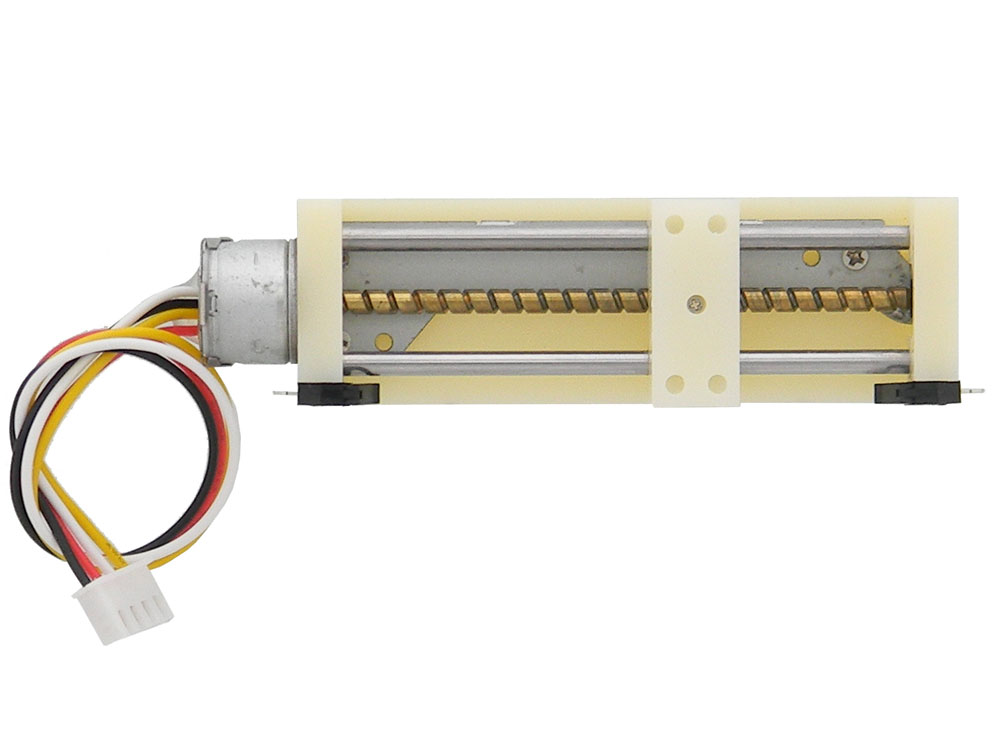

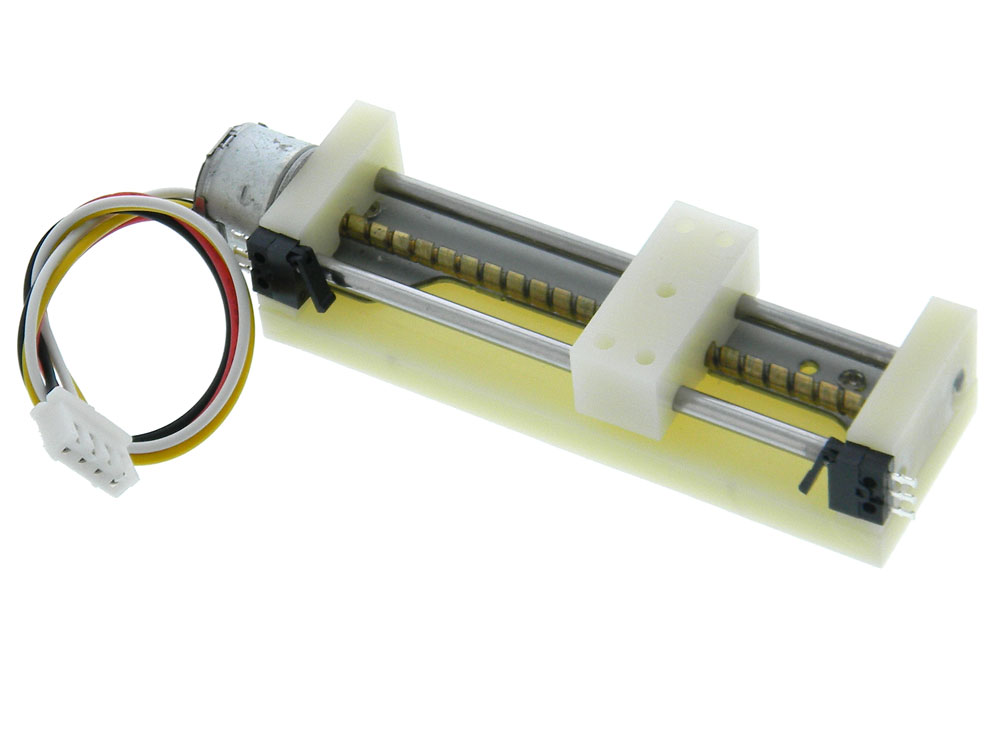

Mini, Non-Precision, hobby grade, light duty, Linear Slide assembly generally used for the the "X" or "Y" axis. SPDT micro limit switches at both ends.
Nylon base & slider with steel glide rails
Motor: Pancake 2 Phase 4 lead
Step Angle: 18deg.
Coil: 5VDC/8 Ohms
A+: Yellow
A-: White
B+: Red
B-: Black
Leadscrew: 3mm Dia. 1 start 3mm Pitch
Travel Length: ~42mm
Ratio: 1 Rev = 3mm slide movement
1 Step= ~0.166mm slide movment
Max Rate: ~5 steps/sec

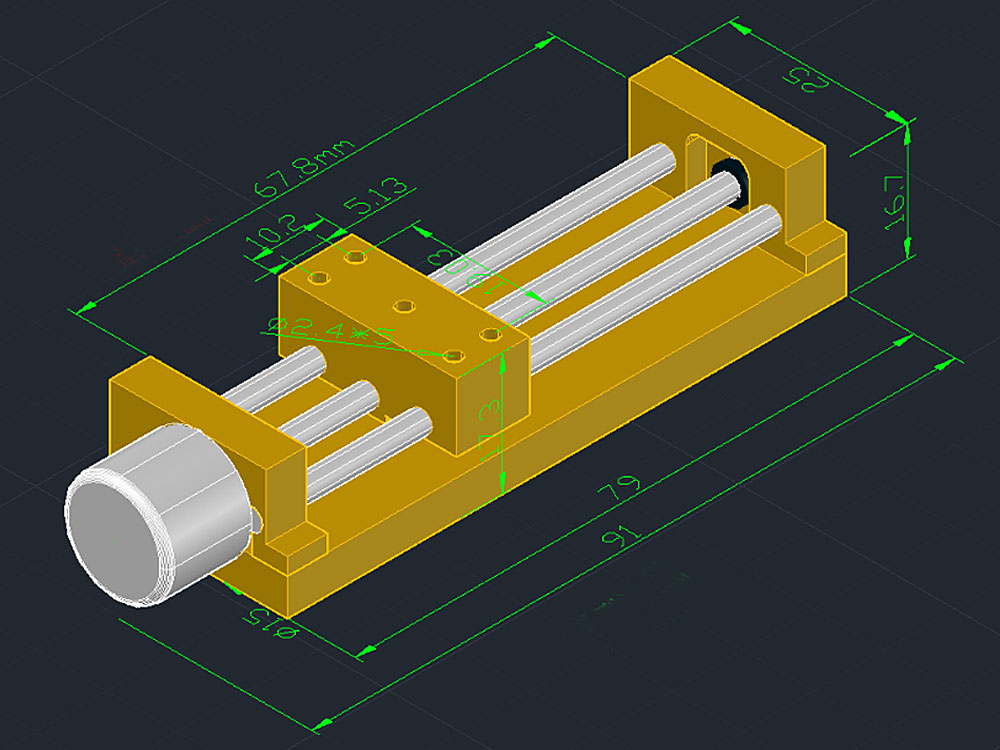

Base Plate: L: 80mm W: 25mm
Nylon Travler Slide: L: 25mm W: 10mm with 4 2mm dia. untapped holes
Motor Leads: 5 with 4 Pin XH2.54 connector L: 3-3/4 O/A W:: 1 O/A H:: 3/4 O/A WT: .15
