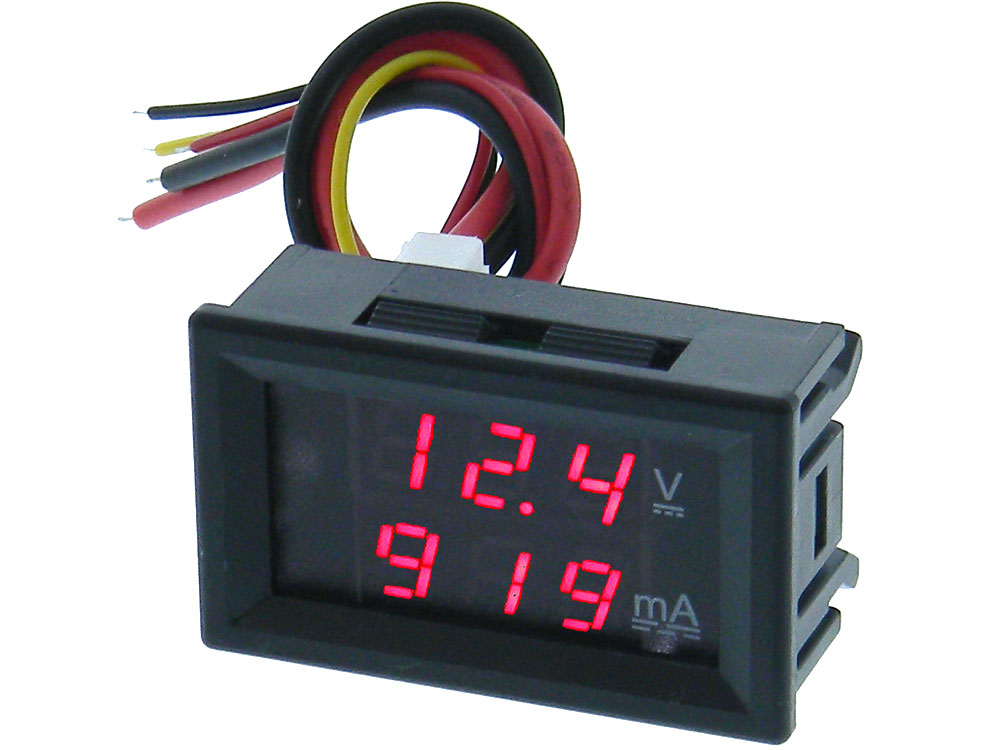

Mini Panel Meter Red LED Display 0 to 99.9 Volts & 1 Amp

DATA SHEET

Mini snap-in LED panel meter contains both a 3-digit Digital DC Volt Meter and a 3-digit Amp. meter.
Operating Voltage: 4.5 to 28VDC
Separate Meter Power required if Measured Voltage is <4.5 or > 28VDC
Measured Voltage: 0.00 to 99.9V
Operating Current: <30mA
Measured Current: 0.00 to 999mA
Refresh Rate: 300ms
Accuracy: 1% (±1 digit)
Operating Temperature: -10 to 65°C
Operating Humidity: 10 to 80% (non-condensing)
Cutout: 45mm X 27mm
Connections: 5" Leads
Ammeter Connects in the return side of Load
Cutout: 46x 27mm
W: 1-7/8" H: 1-1/8" D: 1-1/2"(inc. Con.) WT: .06
