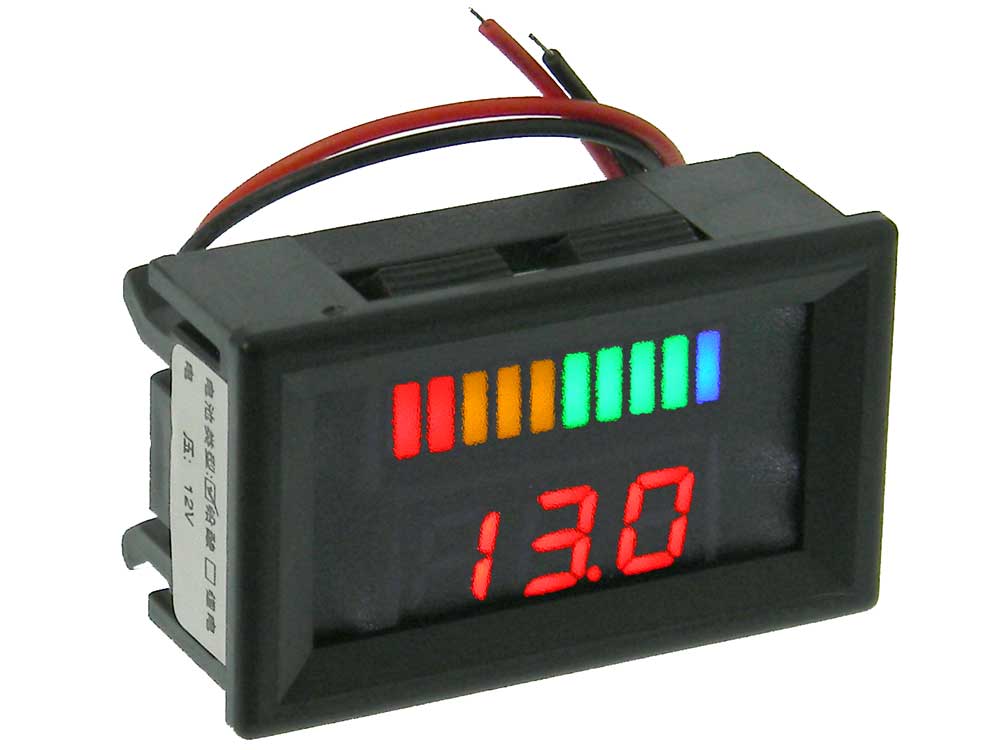

Mini snap-in 12VDC Charge Monitor, 3 digit Red LED Voltmeter with a 10 segment Bargraph. Self contained for source monitoring in 12V systems.
Response Rate is Damped: ~ 5second/Sample
Operating Voltage: 12VDC
Input Range: 10-13V
Meter Resolution: .1V
Character Height: .28"
Bargraph: 10 Segment LED
<10.8V 1 Red Flash
~10.8V 2 Red
~ 11.0V 2 Red +1 Yellow
~ 11,3V 2 Red + 2 Yellow
~ 11.6V 2 Red + 3 Yellow
~ 11.9V 2 Red + 3 Yellow + 1 Green
~ 12.1V 2 Red + 3 Yellow + 2 Green
~ 12.4V 2 Red + 3 Yellow + 3 Green
~ 12.7V 2 Red + 3 Yellow + 4 Green
~ 12.9+V 2 Red + 3 Yellow + 4 Green + Blue
Bargraph Accuracy: ~1%
6 wire leads.
Cutout Size: 45.5mm X 27mm W: 1-7/8 H: 1-1/8 D: 7/8 WT: .04
