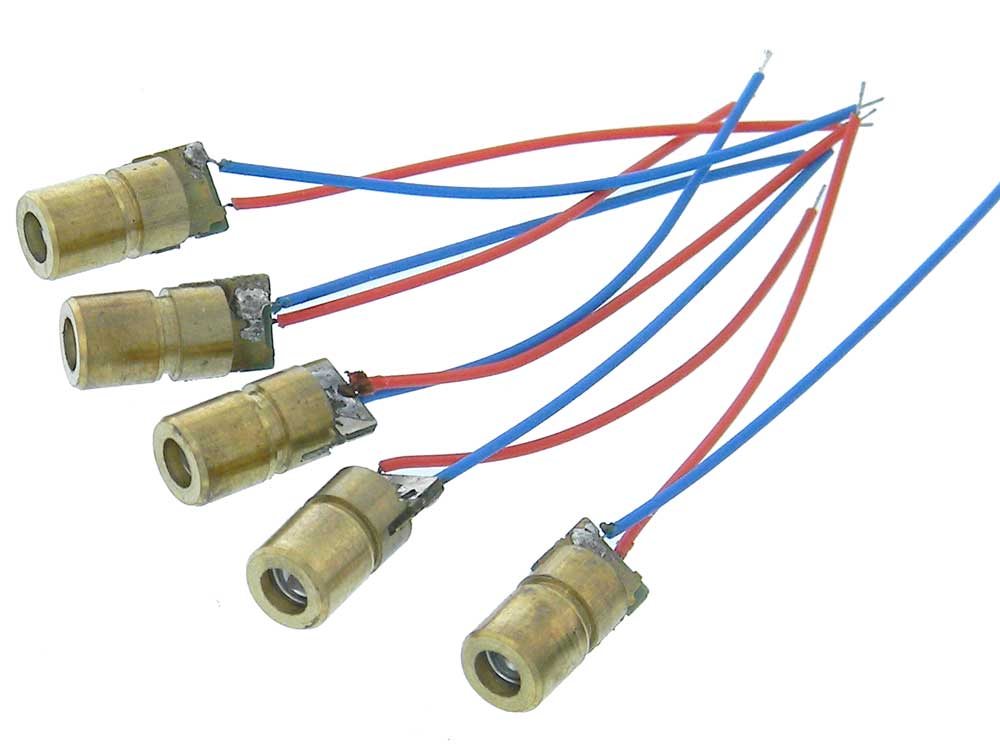

Mini LAZER - <5mw, 635nm Red Laser Diode head for aiming, alignment or other uses.
0.8m Radians Divergence
3.0VDC operation, Forward current <40mA.
5V max Reverse Voltage.
6mm Dia. Brass Body, 2in Leads Dia: 6mm L: 15mm WT: .001
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
I mounted one to the head of my laser cutter/engraver to line up the laser head when setting up projects. It eliminates the need to energize the laser tube and waste material. Works great!
Not for long hours of use.
These work well for maybe 100 hours and the die.
Plan your project with this in mind.
- Charles, WA
Easy to transmit voice over this laser beam.
Feed the red wire with 9 volts thru a 200
Ohm resistor. Feed audio at 1 volt P-P thru a 4.7 UFD cap to the red wire. Positive cap lead to red wire audio ground to battery negative. Receiver is just a solar cell feed into high gain amplifier. Range easily 300 feet!
