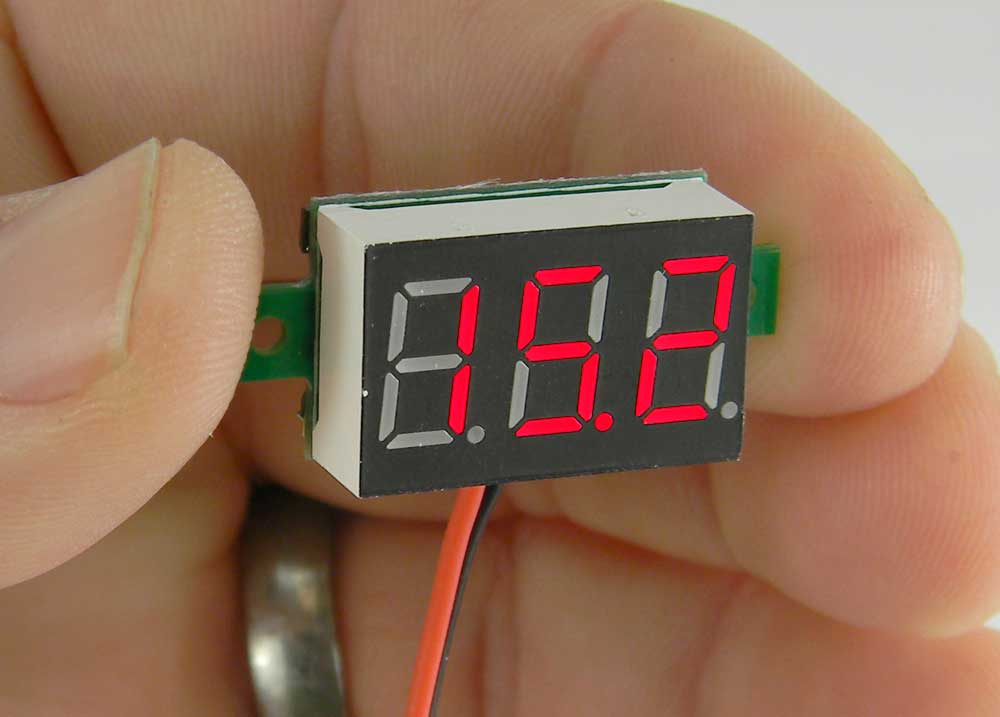

Mini 3 Digit LED Battery meter, Input Powered, Red

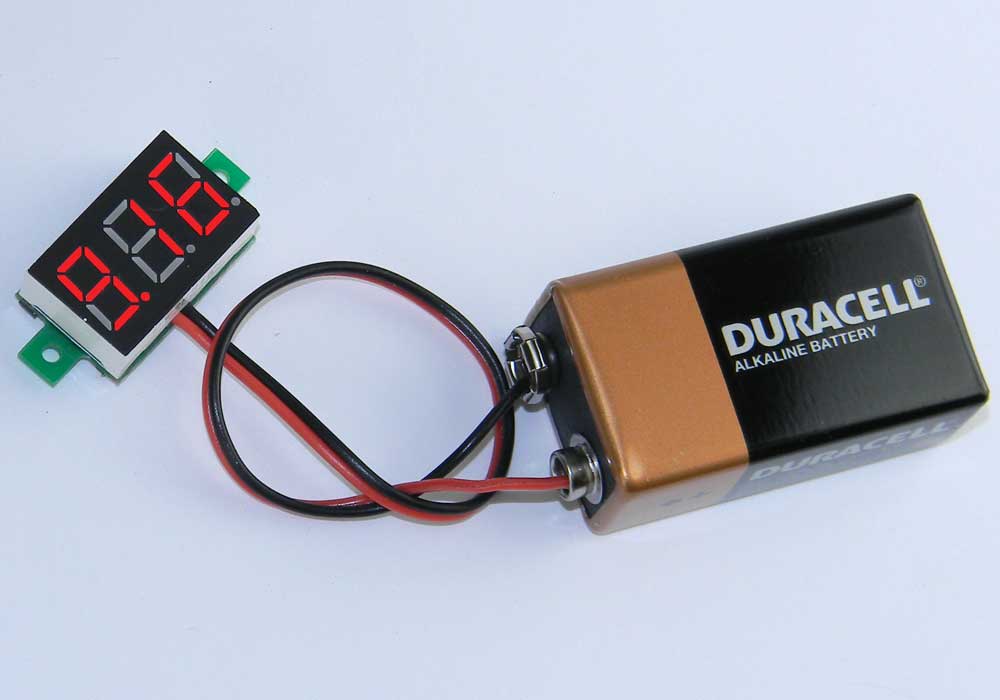

Input powered, 2 leaded Battery Monitor
Compact, LED meter with 5in. Red & Black leads
Input: 4.5-30VDC Max, <25mA.
3 Digit, .375" character height Red LED/Black Face Display
Auto range 3.5-9.99/10.0-30.0V
2 readings/sec., 1.0% accuracy+-1LSD.
2 screw mounting. W: 33mm O/A H: 15mm D: 11mm WT: .011
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
Great meter for the price - I keep finding more uses for them
This is a great meter especially for the sale price. I keep finding more uses for them. The small size is great and needing no separate power supply is a plus. I have added them to several test setups to easily monitor the voltages of interest. I added a set of alligator clips to a few and can stick them on any test point to monitor a voltage.
Great for Model Planes to !!!!
I use these meters to monitor battery voltages in my Model Airplanes. I have bought many of these meters and ALL worked perfectly and accurately !!
- Bill LIFlyer, NY
This meter draws about 15mA, most for display itself. There is small adjuster on back to calibrate, if necessary. Must protect exposed back from moisture!! Great little unit!
Bought 4 of these, went and purchased 4 more, perfect for monitoring voltages on PSU - bench supply - installing several on my server - work perfectly and are as accurate as my VOM, the price is great!
