Mini 3 Digit LED Battery meter, Input Powered, Green
Detailed Description

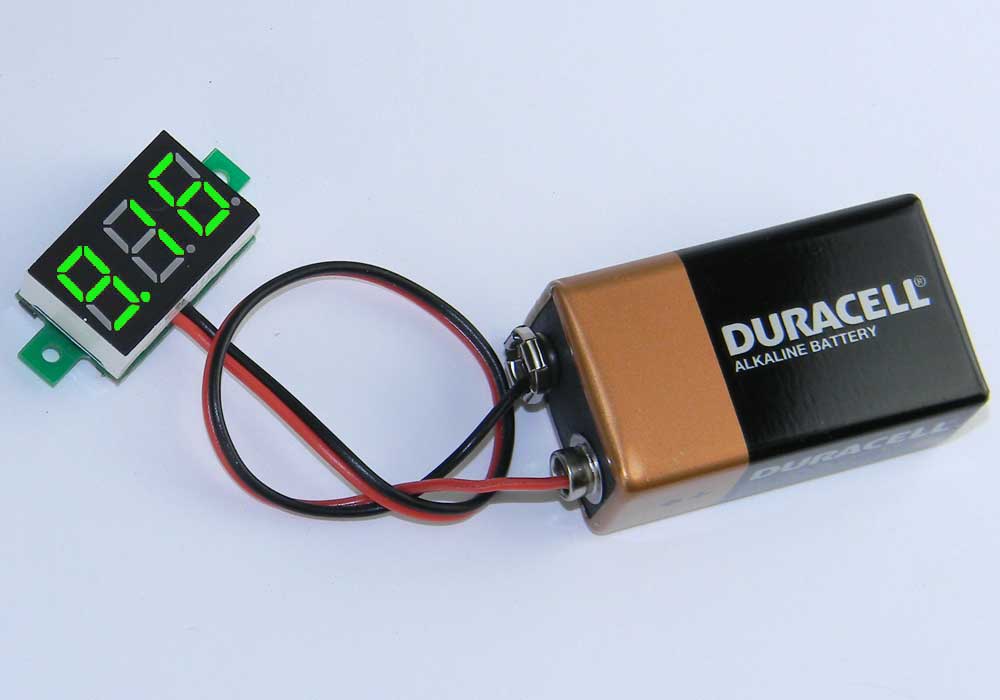

Input powered, 2 leaded Battery Monitor

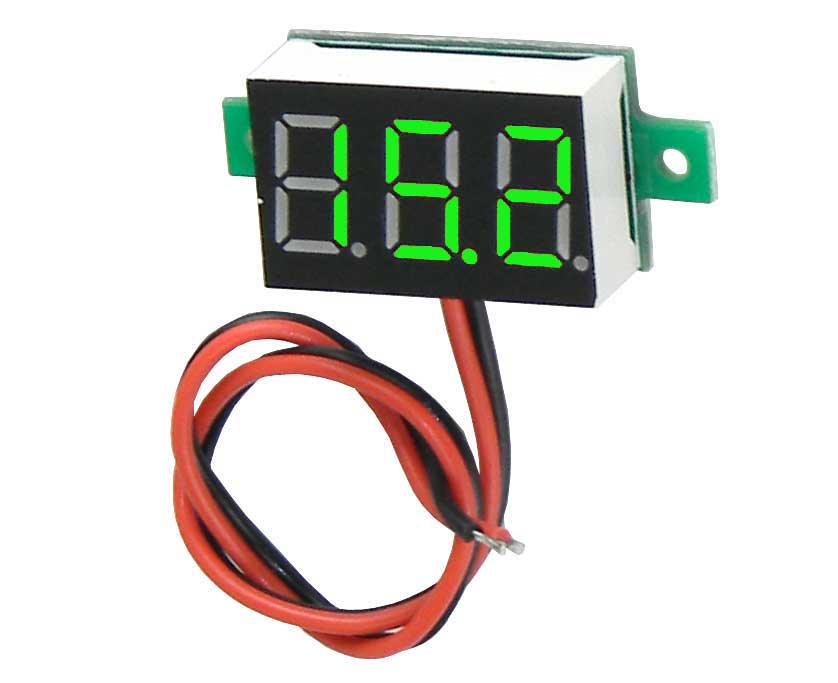

Compact, LED meter with 5in. Red & Black leads
Input: 3.5-30VDC Max, <25mA.

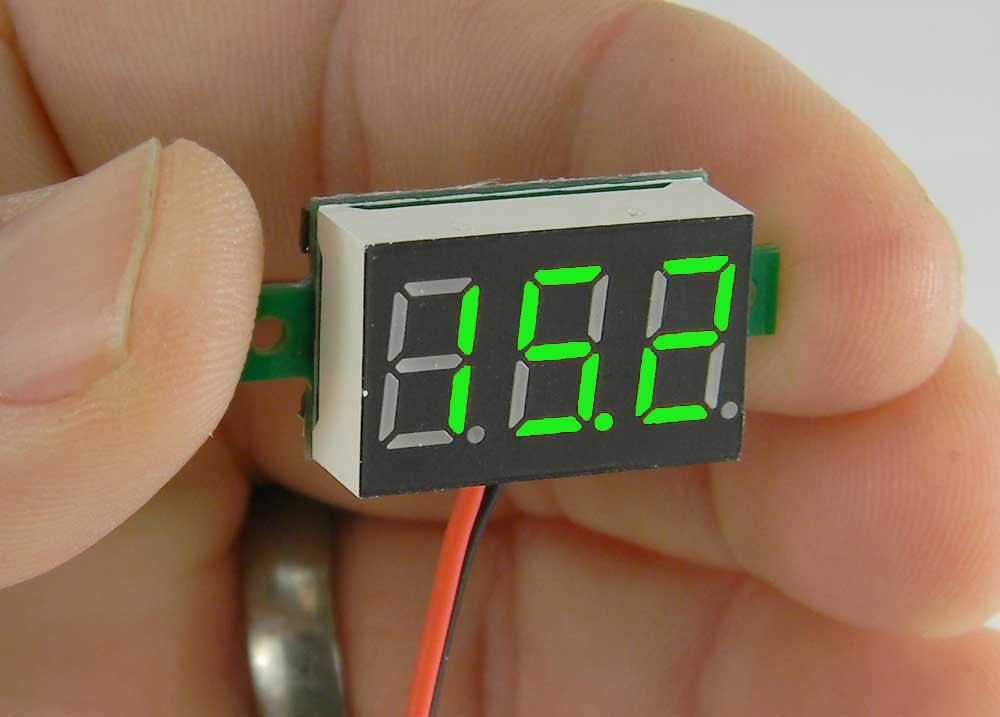

3 Digit, .375" character height Green LED/Black Face Display
Auto range 3.5-9.99/10.0-30.0
2 readings/sec., 1.0% accuracy+-1LSD.
2 screw mounting. W: 33mm O/A H: 15mm D: 11mm WT: .011
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
I just got 4 of these little gems! They are very bright, and will measure down to about 2.5V, with the display getting very dim at that point. The auto-range function from 9.99v to 10.0v is nice, but apparently only truncates the last digit, not rounding. You see 10.0v until you are between 10.1 and 10.19v, where it will show 10.1 Still, this is a minor thing. These are great little modules, and will find their way into various power supply projects, homebrew battery testers, etc.
