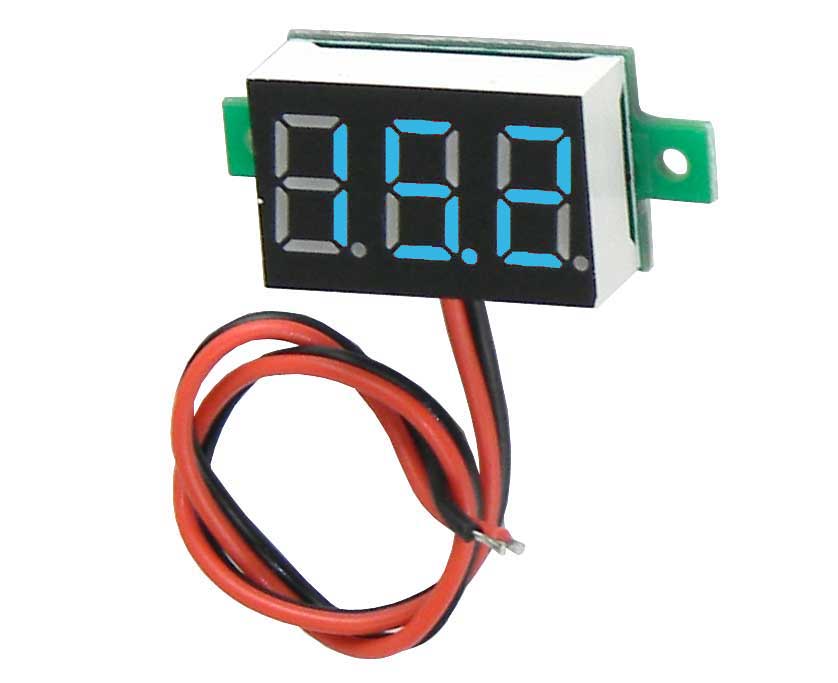

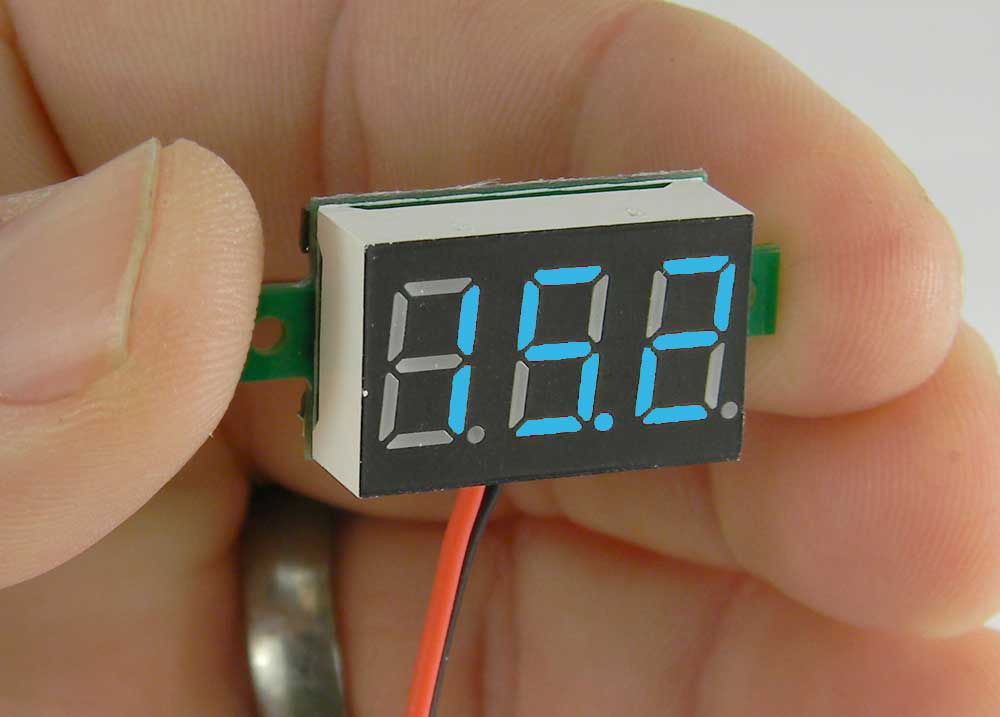

Mini 3 Digit LED Battery meter, Input Powered, Blue

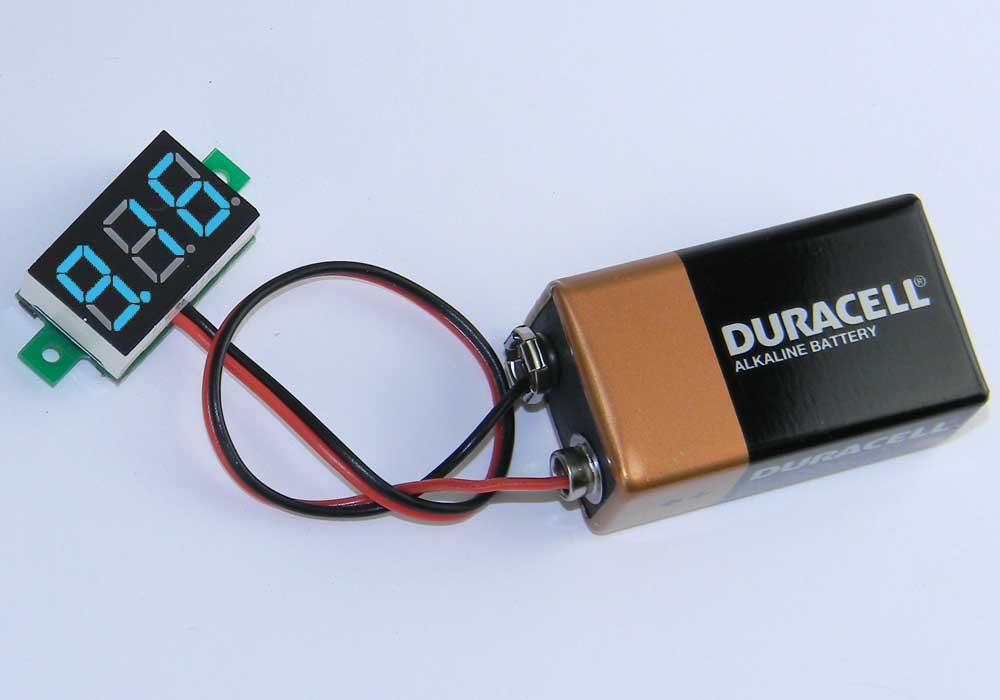

Input powered, 2 leaded Battery Monitor
Compact, LED meter with 5in. Red & Black leads
Input: 4.5-30VDC Max, <25mA.
3 Digit, .375" character height Blue LED/Black Face Display
Auto range 3.5-9.99/10.0-30.0
2 readings/sec., 1.0% accuracy+-1LSD.
2 screw mounting. W: 33mm O/A H: 15mm D: 11mm WT: .011
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
Ive used four of these to monitor batteries in an electric vehicle. They work fine, look great, and the current drawn seems so low, I just leave them connected 24/7.
Of course on 200 amp/hour batteries, I will have to charge eventually...20,000 hrs ?
