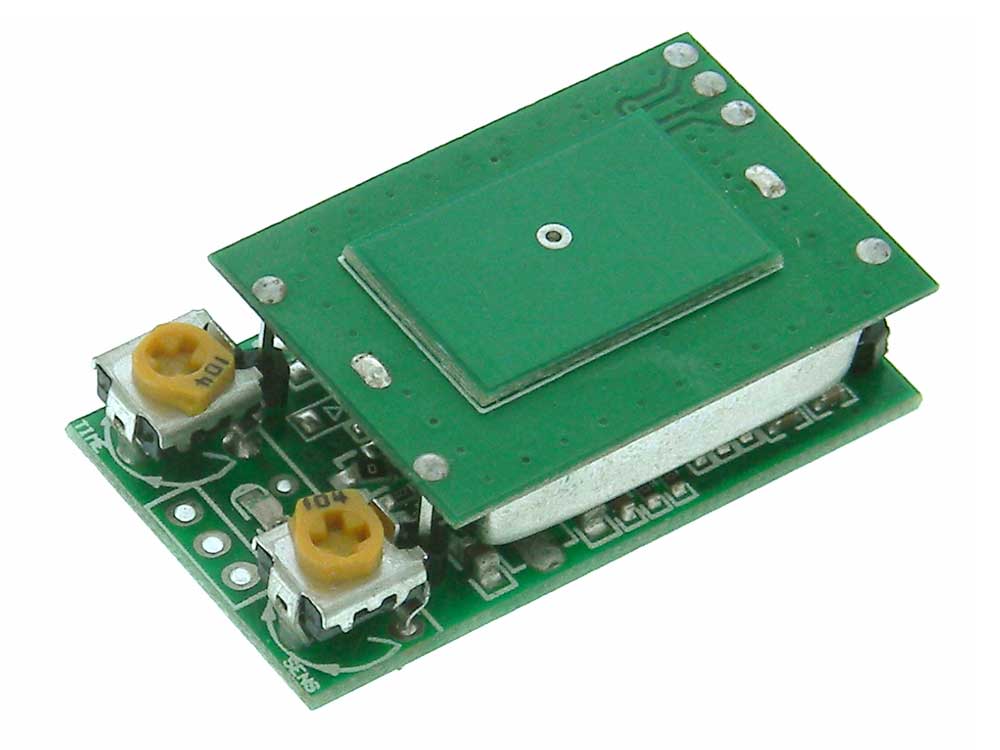

Microwave / Radar Motion Sensor Module, 5V


Microwave / Radar Motion Sensor Module, 5V
Stock Number: 36114 MP
 Review Average:
 Number of Reviews: 3
 View ReviewsReview this item
$7.95


Availibilty: In Stock   Units: 47
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET


Compact, Microwave motion detector operates at 5.8GHz offers high stability and strong anti-interference to minimize interferece with others.
Input: 5VDC (Regulated +- 0.3V) @ > 40mA
Frequency: 5.8GHz. ISM Band
Output: 5V Logic signal (Output goes high when triggered)
Output Pulse Width; 2-120Sec. (Factory Default:2sec.)
Output Active LED
Sensing Distance: 0.5-12M Adjustable
Sensing Angle: 360Deg. Frontal Cone
Mounting Height: 2-6M depending on Area (Centered is Best)
Connections: Solder Holes
Vcc: +5VDC
OUT: Output
GND: Common (Output is referenced to Gnd)
Operation:At initial power-on module will output a high level, after 2 seconds, it will change to a low level, then there will be 8 seconds of self-testing, during which no external signal will be accepted, after the 8 seconds module will be in the normal operating mode.
L: 40mm W: 22mm H: 11mm WT: .02


California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov



 Product ReviewsClick here to review this item
Not very directional
Wanted to use this as a driveway sensor in a sealed plastic box. It is way too sensitive off the back side. It will sense motion in my neighbor's driveway. I was hoping the antenna would be more directional. Works well otherwise.
- Michael Chwojdak, NY

Perfect application
The need arose to control the next door neighbors dog visiting and leaving presents. I used this module in conjunction with an ultrasonic dog control device to trigger when the animal was in the vicinity of the sensor. Havent seen him since I set it up. Great product. Many uses.
- Chadwick Pryson, TN

Great little motion detection module
Good sensitivity that matches the datasheet: Set to low requires fast movement close in at about 4 feet and set to mid range the required target speed and size in proportional to the distance. Full body at about 1 FPS at 20 feet but just a hand at about 0.1FPS at 4 feet.
- John Taylor, CA
