MR30 Mating Pair, 30Amp. Battery Connectors for RC Models


MR30 Mating Pair, 30Amp. Battery Connectors for RC Models
Stock Number: 38372 PL
  Be the first to review this item
$1.95


Availibilty: In Stock   Units: 101
Quantity



SHARE

     Email this to a friend

Detailed Description

View PDF Data Sheet
DATA SHEET

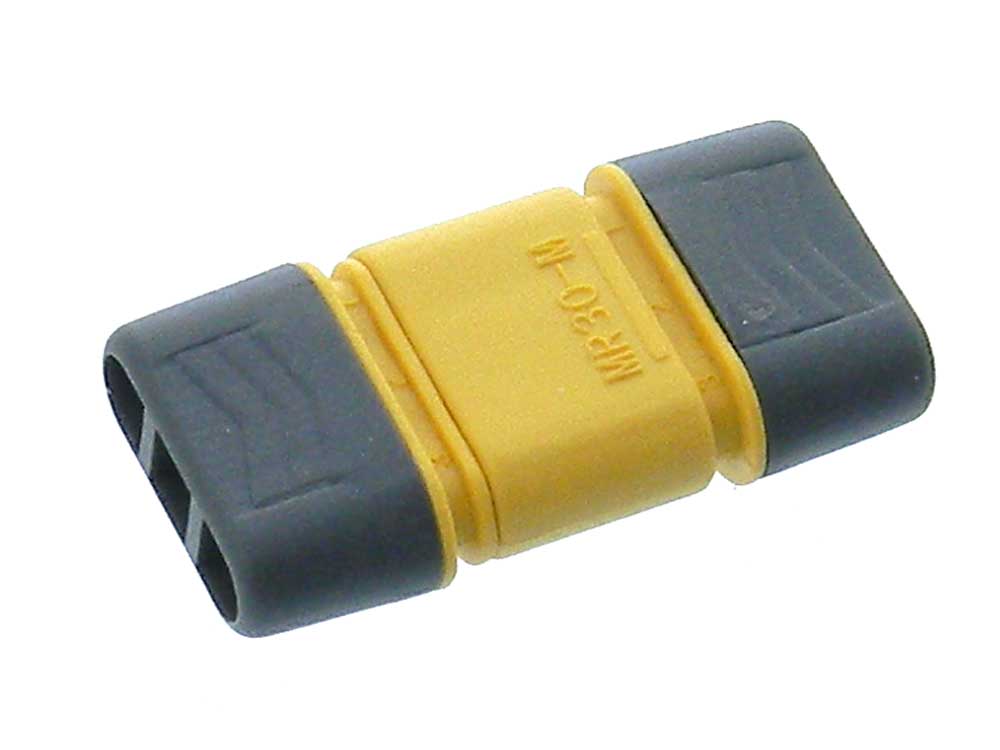

Mating Pair of MR30 Power Connectors for RC Models.

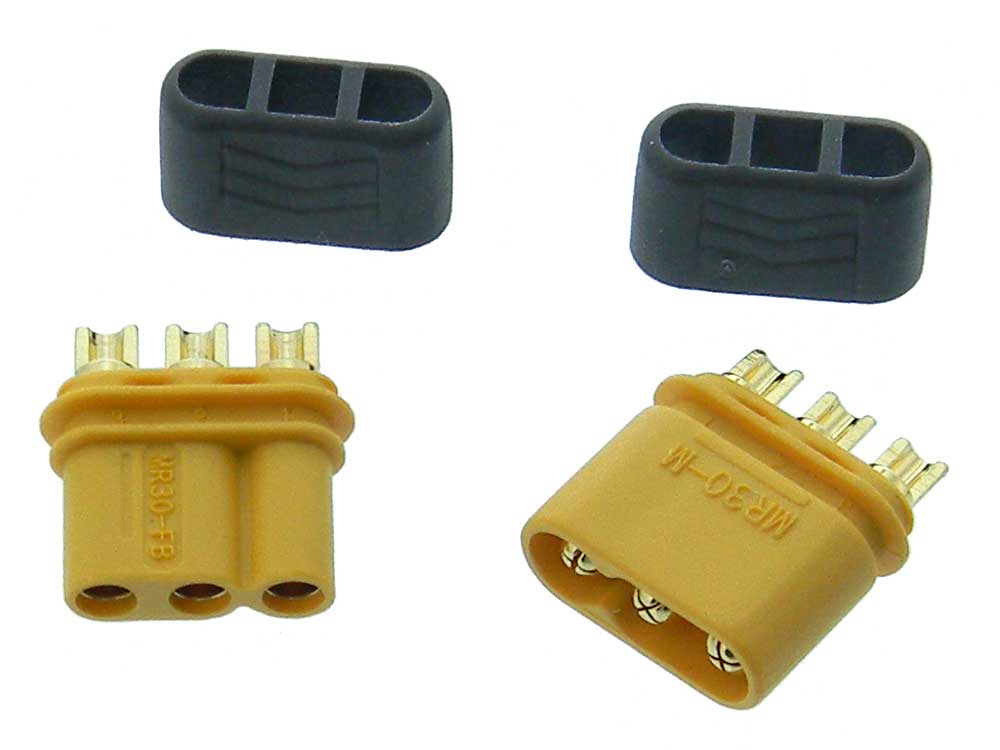

Amass Style MR Male & Mating Female connector
with snap on sheath (backshell) for the wire side of the connector.
Pins: Gold Plated Brass
Pitch: 3.5mm
Body: PA nylon (polyamide)
Continuous Current: 15A Max
Instantaneous Current: 30A
Max Voltage: 500V
Initial Resistance: ~.3m Ohm
Connections: Solder Cup
Wire: 16AWG
Operating Temp: -20C to 120C

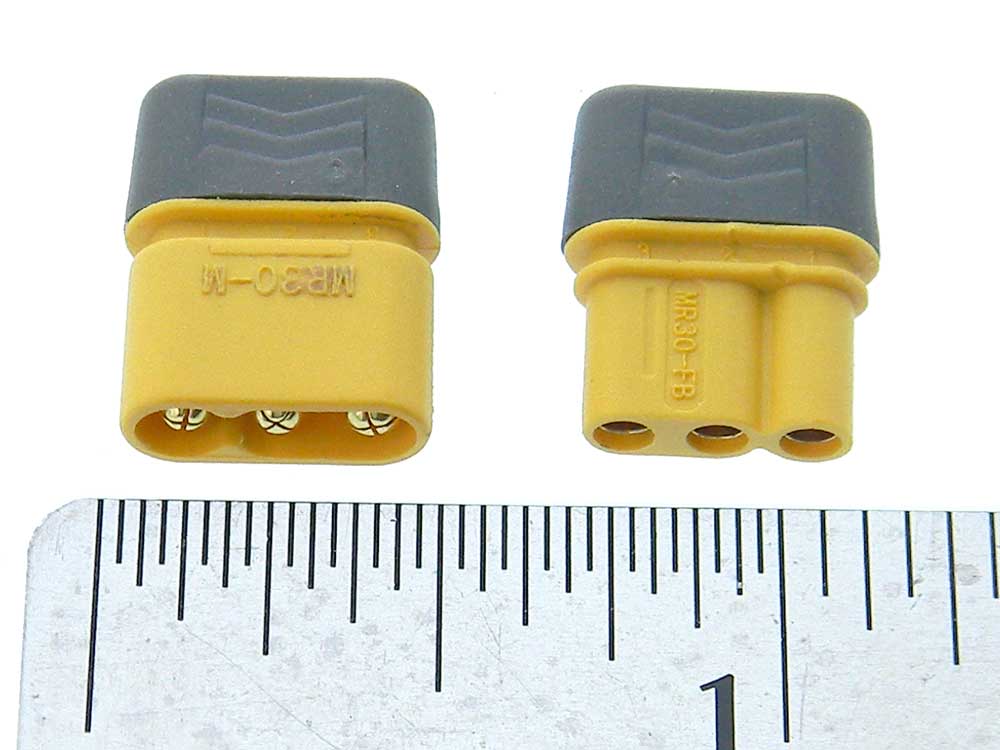

Female
L:
14.4mm W: 11.9mm H: 4.9mm
Male
L:
15.4mm W: 11.9mm H: 4.9mm
WT: .02/pair


California Proposition 65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
(This item was manufactured prior to August 31st, 2018)
