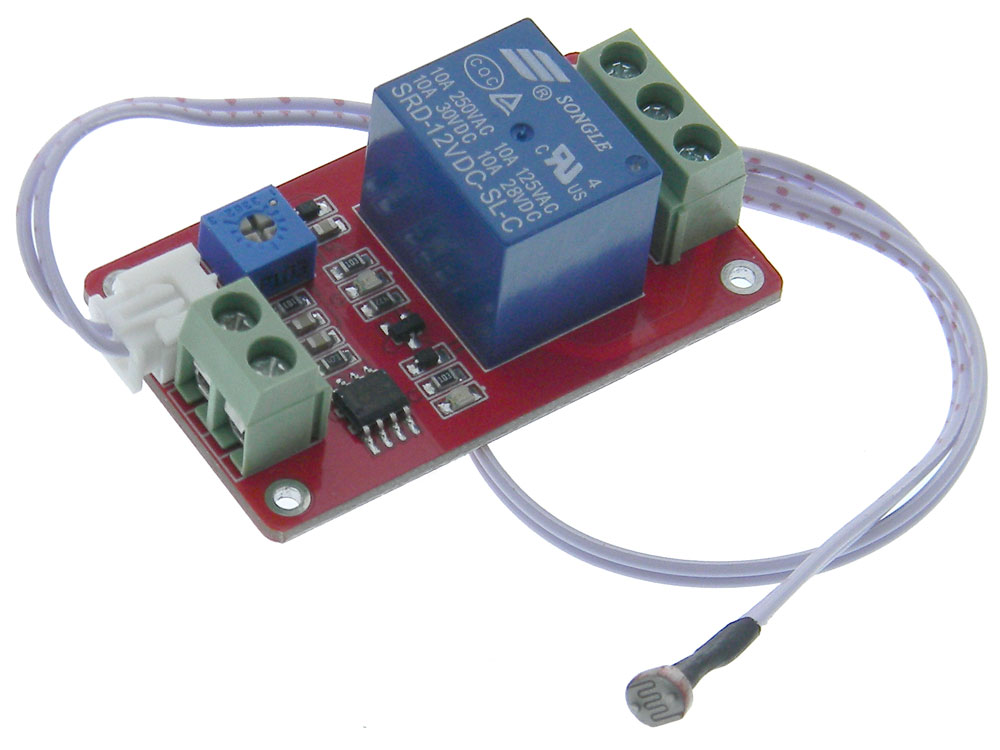

The module can be used as light detector to control lighting.
Dark: Relay ON COM connected to NO
Light: Relay OFF COM connected to NC
SPDT Isolated contacts.
Power: 12VDC @ ~40mA energized
Contacts: 10A@ 250/125VAC/30VDC
Red LED Power Indicator
Blue LED Relay active indicator
Detector: CdS Photoresistor with 11in lead L: 2" W: 1-3/16" H: 3/4" WT: .04
