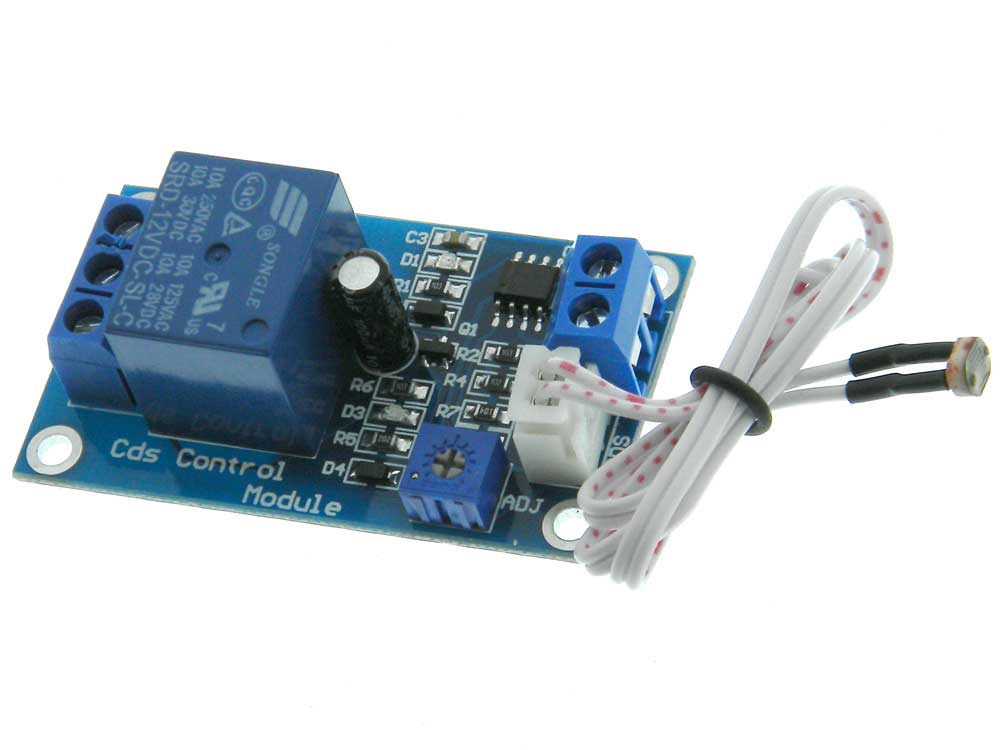

The module can be used as light detector to control lighting.
SPDT Isolated contacts.
Power: 12VDC @ ~ 40mA energized
Contacts: 10A@ 250/125VAC/30VDC
Red LED Power Indicator
Blue LED Relay active indicator
Detector: CdS Photoresistor with 11" lead L: 2-1/8" W: 1-3/16" H: 7/8" WT: .04
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
I built a solar lighting system for my back gate. I needed a on at nite off in the day circuit. I saw this one and installed it into my system and it works fine. I have ran it for a week so far and no problems. Saved me the labor of building one of my own.
- Donald Kellenbarger, CO
Failed after one week
Nice little module. I used it to control some yard landscaping lights. It quit after one week of operation. Traced it to a bad CDS photocell failed. Not sure why. It is very tiny 1/8 dia It was mounted carefully in a hole and RTV to hold it. Beware
