LM2596 Step Down Adjustable 1.5-37V DC/DC Converter

LM2596 Step Down Adjustable 1.5-37V DC/DC Converter

30148-large.jpg    California Proposition 65 Warning
Stock No: 30148 PS
 Review Average:
 Number of Reviews: 7
 View ReviewsReview this item

Availibilty: In Stock   Units: 123

Email this to a friend

 Detailed Description
We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).

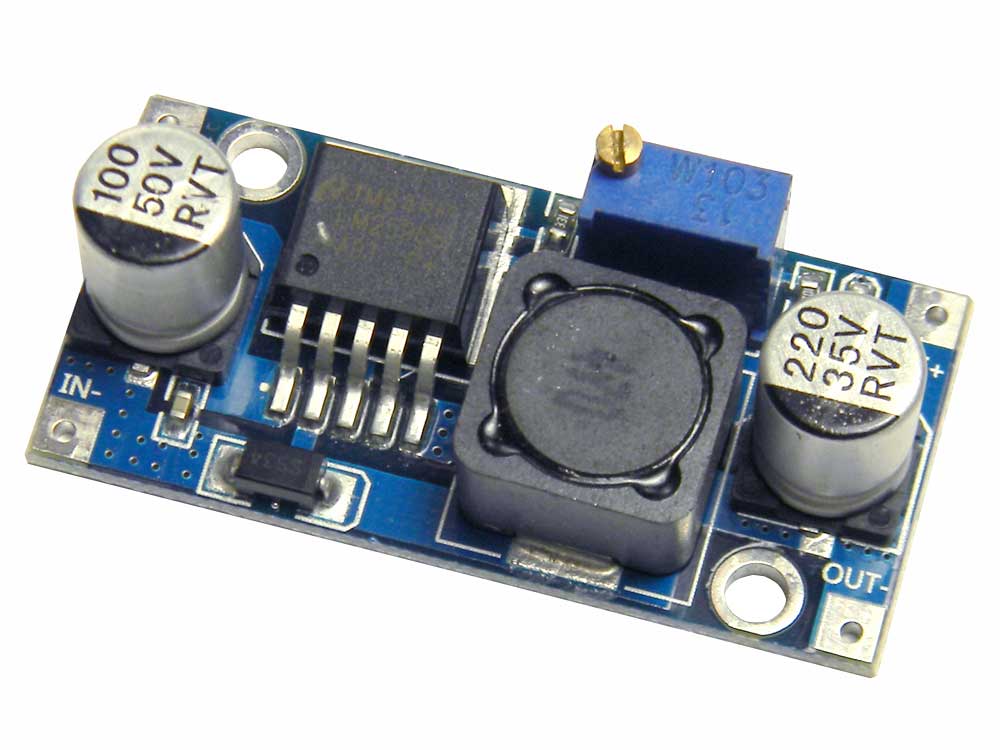

Non Isolated, LM2596 Buck (Step Down) adjustable DC/DC Converter, switching Regulator board. Ideal Point-of-Use regulator
Input: 4.5-40VDC
Output: 1.5-37VDC
Note Input Must Be 1.5V Higher than Output
Rated Current: 2A (Heatsink Required above 10W)
Regulation: 0.5%
L: 1-3/4" W: 13/16" H: 1/2” WT: .02

View PDF Data Sheet

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

 Product ReviewsClick here to review this item
Luck of the draw.
Ordered 2 of them. One been working fine for a few weeks. The other one was dead on arrival. Complete short on the input. Removed input cap and it checked OK. The LM2596 IC was an input short.
- James Schings, KY
Easy to Use
Easy to hook up and adjust. Potentiometer is touchy but you can get almost any voltage setting you want. I am running a ESP8266 from three Lithium Ion batteries. 12.3 volts in set to 5.1 volts out.
- Sidewinder, AR
Wrong Components
I ordered 3 and all 3 did not work. The feedback resistor to ground needs to be 1000 ohms not the 330 ohms installed. With the 1k resistor as suggested by the LM2596 manufacturer, it works fine, but you can waste a day finding the problem.
Saw a cold solder joint on regulator chip
I received one of these that was intermittent, and I found a cold solder joint on one of the pins of the regulator chip. If yours isnt working, use a pointed tool to see if you can lift any of the pins off its pad. Its hard to get the iron tip in to fix it, but that fixed my problem. Otherwise, its a really handy converter at a good price.
Problem with Circuit Board
I have 3 of these same units which I have just found to be defective. There is no connection from Vout to the inside. I found I could get output by taking it from the top of the output capacitor. I do have an earlier one..slightly different that works fine?
- Barry Malowanchuk, INT
Great voltage controller
I replaced the 10-turn pot with a regular pot on 3 leads, and built the whole thing into a box. I use these as remote controls for my Garden Train layout, and they do work wonderfully!
Tom W
Stable for Raspberry Pi
Been working solid for about 2-3 months now. Powering a Raspberry Pi and Raspberry Pi 2 B+ with these guys. Adjusted voltage to about 5.18 volts and it barley drops below 5 volts, even with a 1 watt Wifi adapter. My Servos have there own LM2596 as well, all running from a 12Volt UPS Battery.
