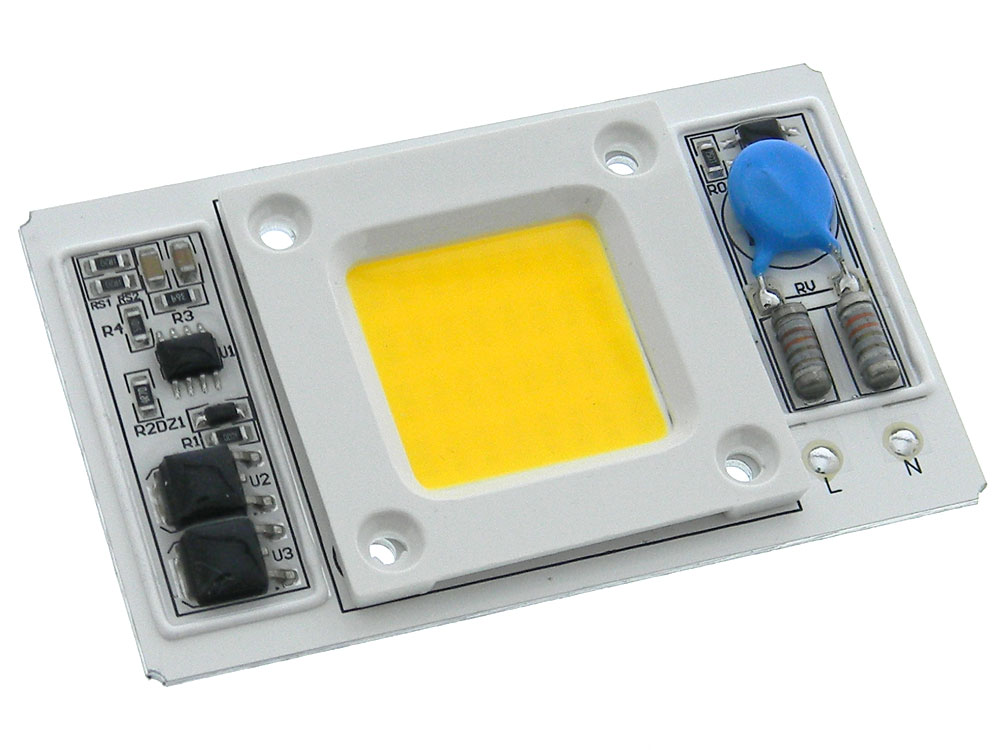

High-power 50W LED Warm White Light module with constant power regulation, over Temperature and Voltage protection Designed to be hardwired into a fixture with ~600sqIn of Heatsink
Entire back of module should be coated with thermal compound and contact heatsink
Sealed to IP65
Color Temperature: 3000-3500K
Lumens: 5000min. L: 3-1/16" W: 1-3/4" T: 1/4" WT: .05
WARNING: This product can expose you to chemicals including Chromium which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the Prop 65 law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
600 sq. in.? If my calculations are even close... Using fins that are 1/10 of an inch thick and 3.0625 wide -- one side of back -- and with 1/10 inch spacing between, about 9 fins will fit along the 1.75 side -- the other side of the back. That is 18 sides with surfaces totaling... 600 sq. in. / 18 sides ==> 33.3 Sq In. Per Surface REQUIRED. 33.3 sq. in. / 3.0625 in. ==> 10.8 in. as the REQUIRED Height of EACH Fin.
So, the Heat Sink would have to be 3.0625 X 1.75 X 10.8 INCHES Minimum with rather tight,thin and long fins -- perhaps too long, too tight [packed] & thin to produce the best heat sinking???.
I dont think so. Please Verify Requirement. ----
Jim Faulkner / Jim@BizCity.com
- James Faulkner, IN
Heat sink compatibility
Would your fan equipped heat sink item number 17045HK provide sufficient cooling?
Sorry these LED Modules are NOT dimmable.
- - MPJA Response, FL
Are these modules dimmable?
Yes, you need to count the total surface area of the heat sink both sides of the fins. Example: Our stock # 32088 HK is 400 square inch at L:5-7/8 W:2-3/4 H:1-7/16
Thank You MPJA Inc
- MPJA Response, FL
Question about heatsink
The description says 600 sq inches of heatsink required. This is over 4 sq feet. Is this correct?
