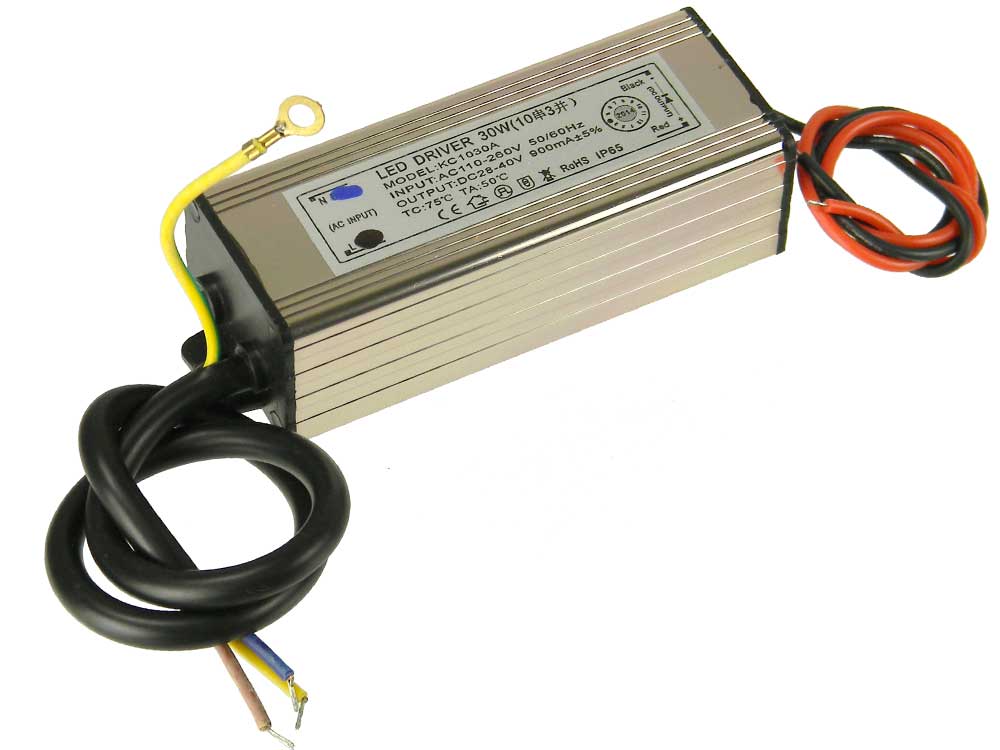

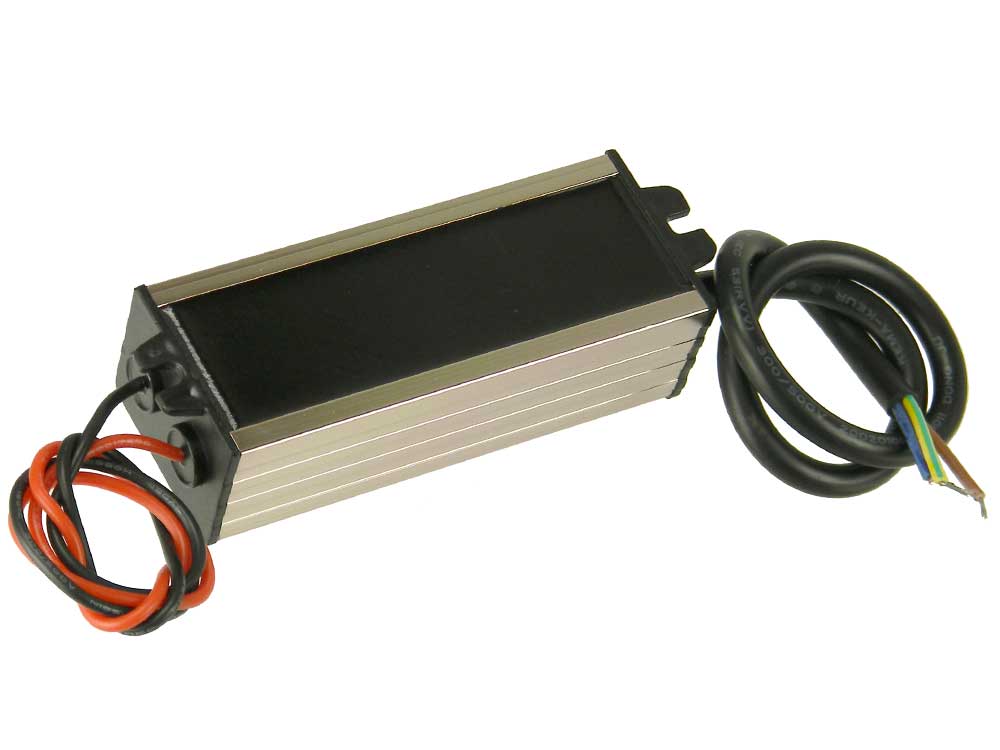

Input: 110-260VAC 50-60Hz Output: 28V-40VDC @ 900mA +- 5% Specifications/Features: Sealed metal & plastic cased, Mini Switching constant current LED driver for driving one 30W, Three 10W connected in series or ten 3W series/parallel LEDs. 12 AC leads, 10 DC Leads.
IP65 sealed for damp locations.
Not for use with Dimmers. L: 4-1/4" W: 1-7/16" T: 1-1/8" WT: .5
WARNING: This product can expose you to chemicals including Chromium which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here?
As of August 2018 the State of California has changed the requirements of the Prop 65 law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.
As an example:
ABS plastic contains styrene
PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
electrolytic capacitors can contain Ethylene glycol
Brass can contain Lead
flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
Aluminum alloys can contain Chromium
To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!
I have three 10 watt gro-lite LEDs 34610 OP running in series powered by this driver. This array is mounted in and on the middle cover of a standard 48 flourescent four bulb fixture. I have completed 3 of these fixtures. So I have four 32 watt flouros plus three 10 watt LEDs in each fixture. Started plants seem to love it. One has been running for 3 weeks and the other two fixtures will be added in about two weeks. I have had no problems. Just be careful when working with the input and output wires. The black plastic end plates tend to pop off easily.
IT failed after 8 hours of continous use
Used three 10W leds and mounted to sufficient heat sinks. Used the setup to light a dark passageway in my basement. I am wondering about the quality.. Heres a link http://www.valhallatreefarm.com/LEDfixt/ledfixture.htm
- david ingebright, WA
Works with my LEDs
Works great with my LEDs, now they can be regulated.
