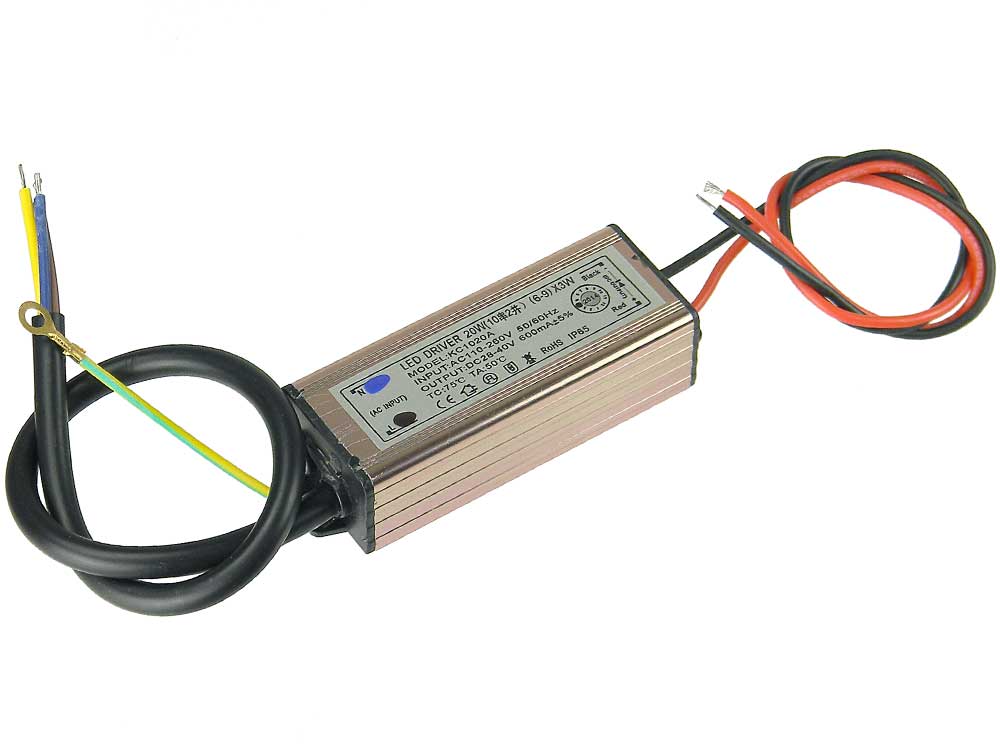

LED Driver, 20W, 110-260VAC Input


LED Driver, 20W, 110-260VAC Input
Images/31538-large.jpg Images/31538-1.jpg   California Proposition 65 Warning
Stock Number: 31538 PS
 Review Average:
 Number of Reviews: 1
 View Reviews | Review this item

Did we sell out of a part and you want to buy more? You can possible buy directly from our overseas supplier. Some restrictions apply: general rule $50 per line item and a minimum $100 per order.

You can contact our source at:
Supplier: Aqua Jiang - aquajiang1@outlook.com

In your email, your Subject needs to be MPJA Customer and reference the MPJA stock number and quantity required. They will get back to you with pricing, lead time and shipping cost.

SHARE

     Email this to a friend

Detailed Description

Input: 110-260VAC 50-60Hz
Output: 28V-40VDC @600mA +- 5%
Specifications/Features: Sealed metal & plastic cased, Mini Switching constant current LED driver for driving one 20W, Two 10W connected in series or six -nine 3W series/parallel LEDs. 12” AC leads, 10” DC Leads.
CE/RoHS Listed
IP65 sealed for damp locations.
Not for use with Dimmers.
L: 3-5/8" W: 1-3/16" T: 7/8" WT: .22

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Chromium which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Click to see Why is this here? As of August 2018 the State of California has changed the requirements of the “Prop 65” law. We now must list on our website any possible chemicals the can cause cancer, birth defects or reproductive problem.

As an example:
   ABS plastic contains styrene
   PVC wire insulation can contain Di(2-ethylhexyl)phthalate (DEHP)
   electrolytic capacitors can contain Ethylene glycol
   Brass can contain Lead
   flame retardant pc boards can contain Tetrabromobisphenol A (TBBPA)
   Aluminum alloys can contain Chromium

To put it simply we are a small company and do not have the resources to test every single part, so we list every thing as hazardous. Please recycle all electronic parts responsibly and under no circumstance eat, drink or smoke these parts and wash your hands after touching!


 Product ReviewsClick here to review this item

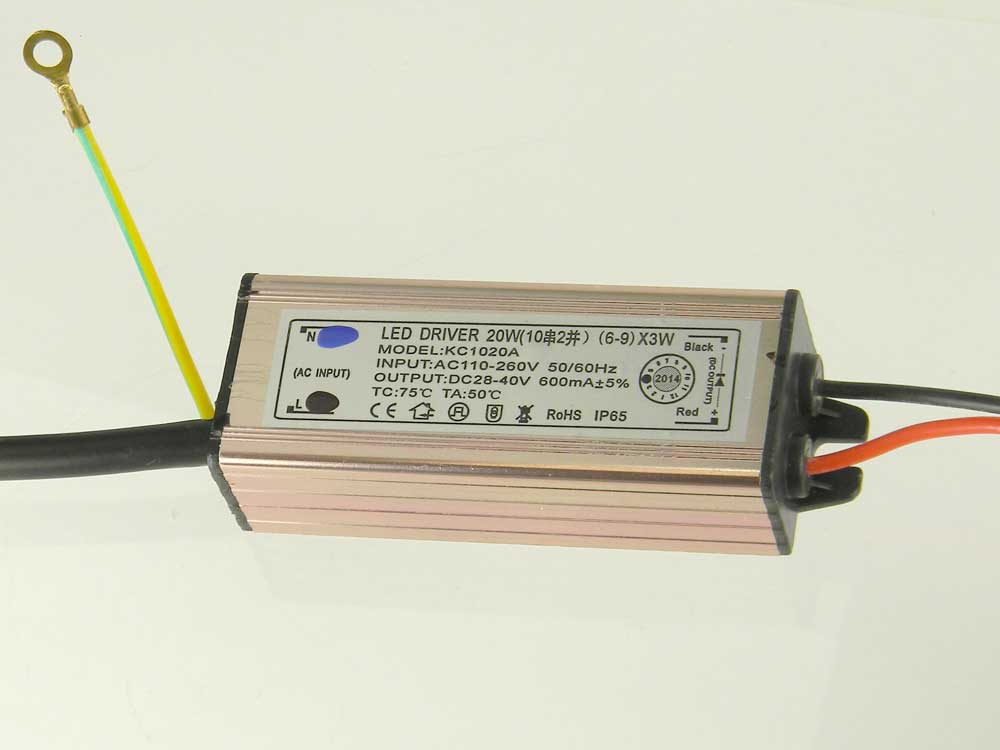

20 Watt L.E.D. Driver KC1020A
I bench tested 2 of 6 units i purchased. The output current is 500 mA +- 1 mA this meets the 5% at 500 mA but not 600 mA as stated on the units placard. With a 60 ohm 50 watt load on the output the current is constant from 110 vac to 250 vac on the on the input. Good regulation but not at 600 mA.
Stephen Sr.
