We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).

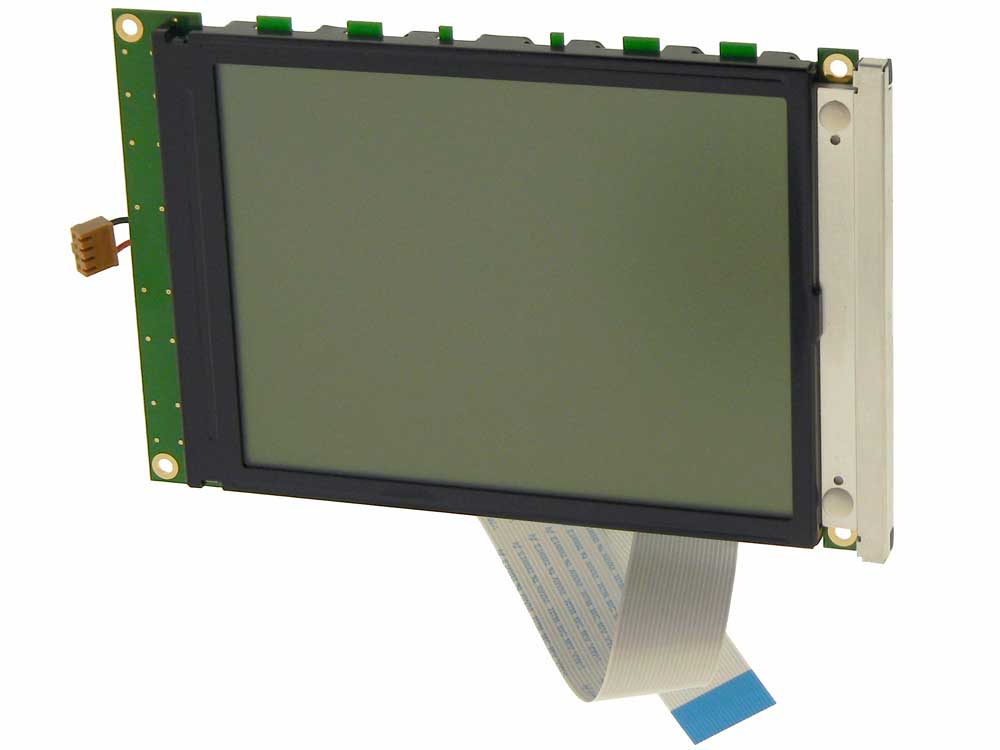

MFG: Microtips Technology P/M: NMTG-F32240PFWHSGW Resolution: 320X240 Dots Dot Size: .34 X .34mm Dot Pitch: .36mm Specifications/Features: 122mm X 91mmView area,.

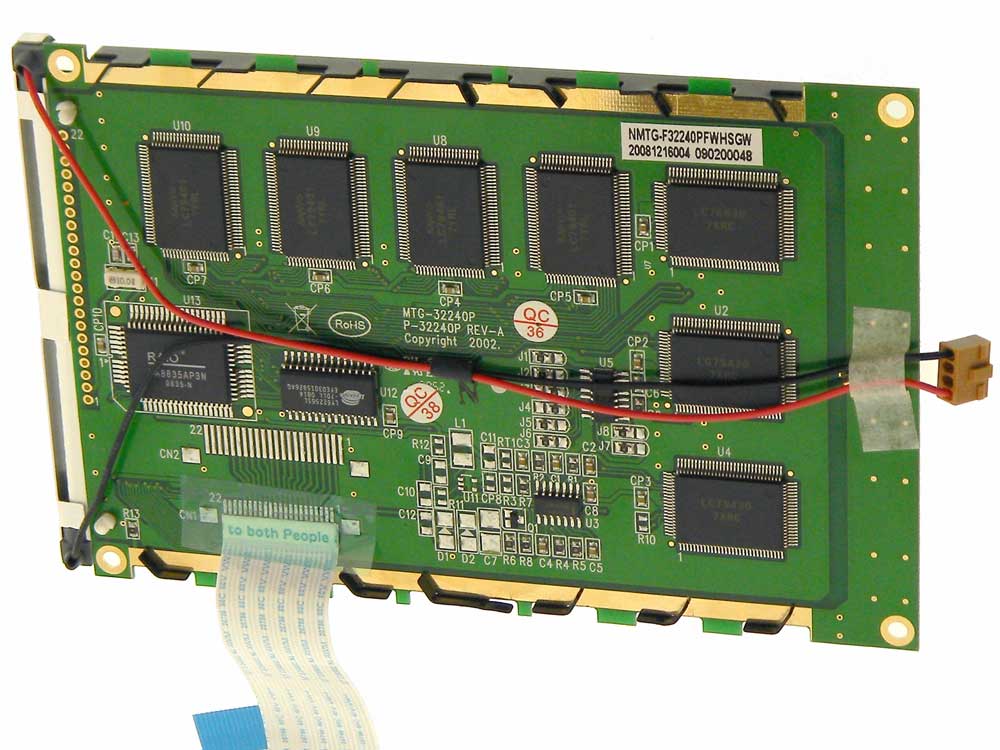

FSTN type,Transflective type (Black on White) Dot Matrix display with white LED Backlight. Built in RAIO RA8835A controller.
Power: +5V logic (Vdd) and -12 to -30V drive (Vee) supplies.
I/O: TTL, 8bit Parallel; Selectable 8080 or 6800 format
Max Forward Current 140mA,
Max Reverse Voltage: 5VDC.
Requires current Limit Resistor (Not Supplied)
8in. 22 conductor flat (FFC) cable for Data,
6in. leads for Backlight. L: 6-9/16" W: 4-1/4" O/A T: 1/2" WT:.5
