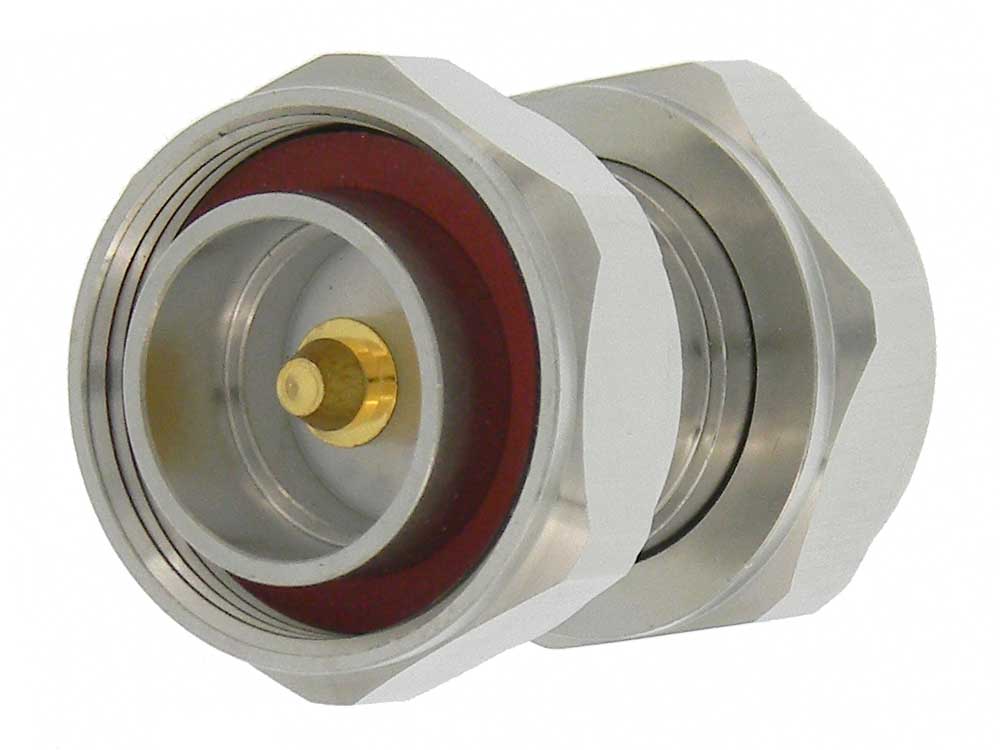

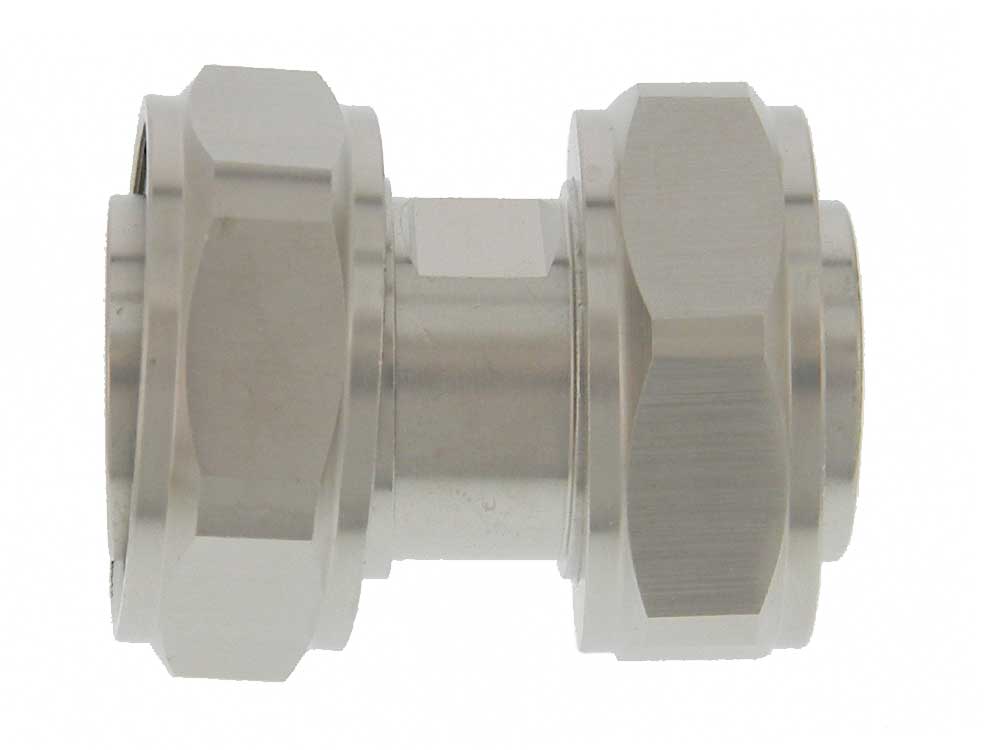

L29 7-16 Male to L29 7-16 Male Coupler


L29 7-16 Male to L29 7-16 Male Coupler
Images/36597-large.jpg Images/36597-1.jpg   California Proposition 65 Warning
Stock Number: 36597 RC
  Be the first to review this item
$13.95


Availibilty: In Stock   Units: 2
Quantity



SHARE

     Email this to a friend

Detailed Description

IP67 rated, L29 7-16 (DIN) Male to L29 7-16 Male coupler. Used in Test Equipment, Base Station mobile radio system (GSM) and others. The L29 internal thread is Left Hand, 29mm, 1.5mm pitch.
Impedance: 50 Ohms
Frequency: DC to >5GHz
VSWR: <1.05 DC-3GHz <1.2 3-6GHz
Loss: <0.1dB
Temp. Range: -45°C to +85°C
Insulator: Teflon
L: 1-3/4" WT: .26

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
