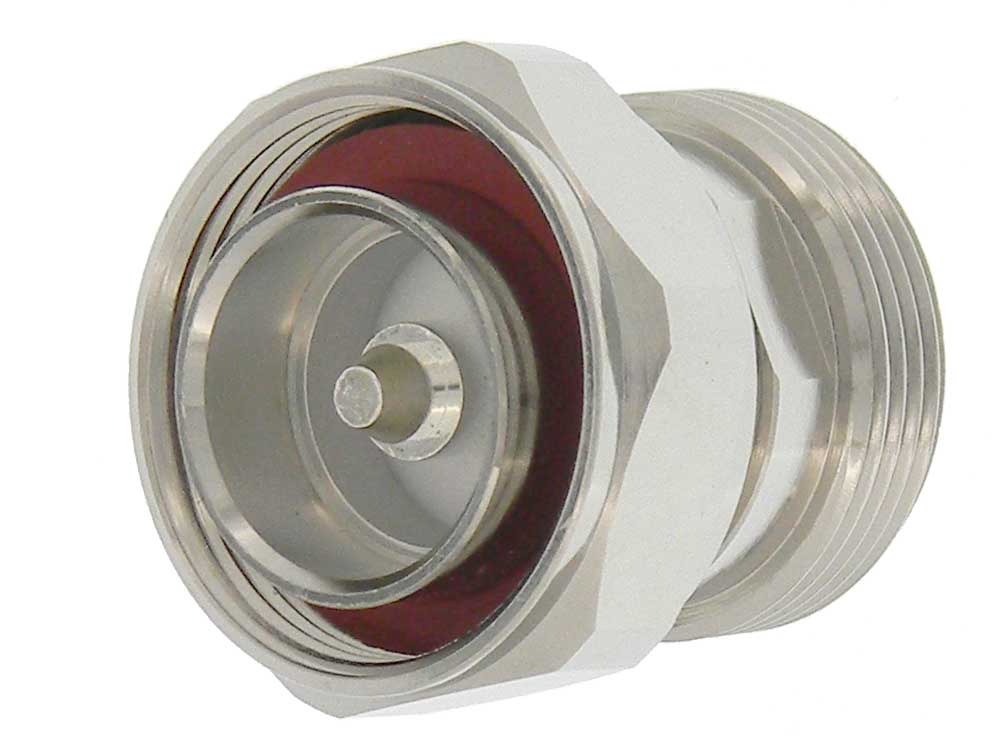

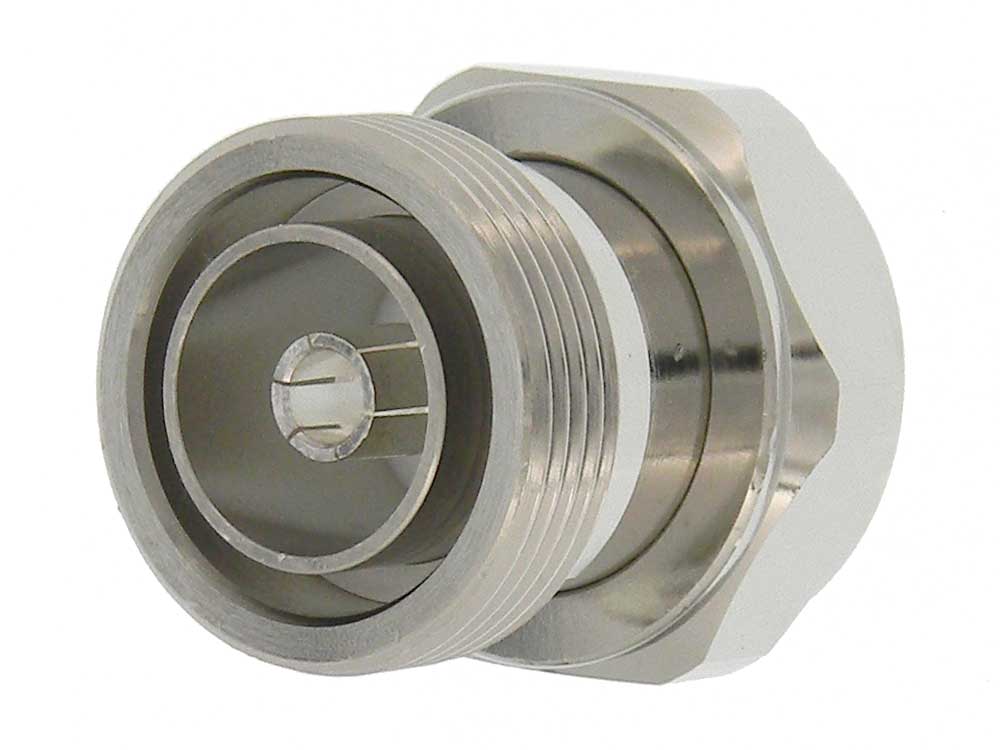

IP67 rated, L29 7-16 (DIN) Male to L29 7-16 Female coupler. Used in Test Equipment, Base Station mobile radio system (GSM) and others. The L29 internal thread is Left Hand, 29mm, 1.5mm pitch.
Impedance: 50 Ohms
Frequency: DC to >5GHz
VSWR: <1.05 DC-3GHz <1.2 3-6GHz
Temp. Range: -45°C to +85°C
Insulator: Teflon L: 1-1/2" WT: .2
