"Ideal Diode" Very Low Drop Rectifier



35486-large.jpg  35486-1.jpg    California Proposition 65 Warning
Stock No: 35486 DI
 Review Average:
 Number of Reviews: 1
 View ReviewsReview this item
$4.95


Availibilty: In Stock   Units: 133
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description

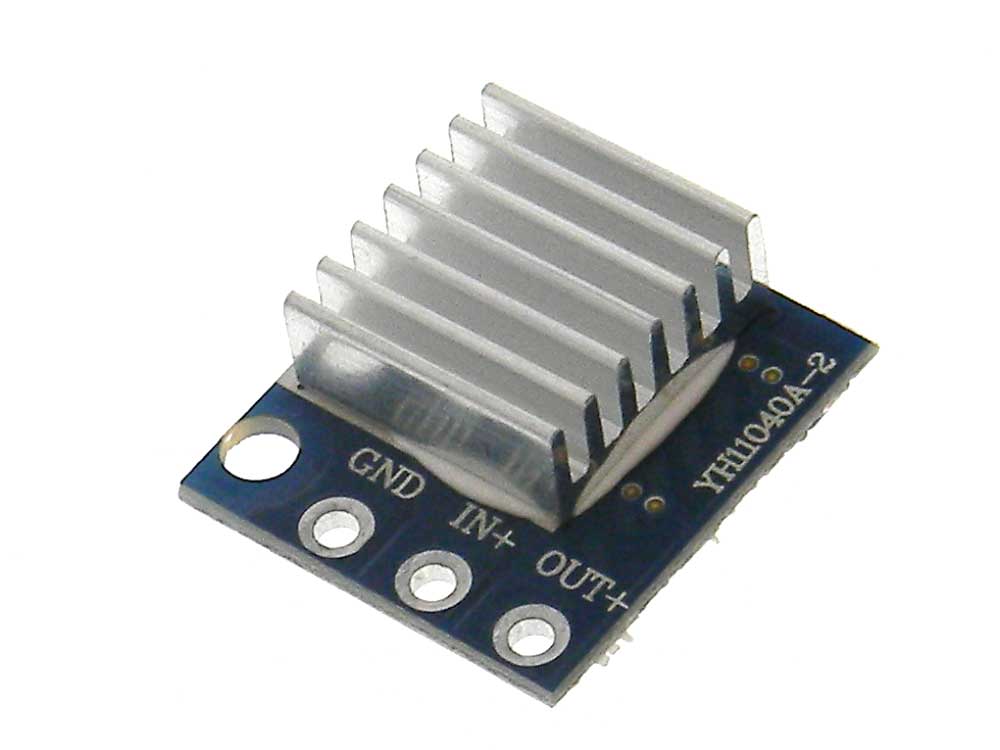

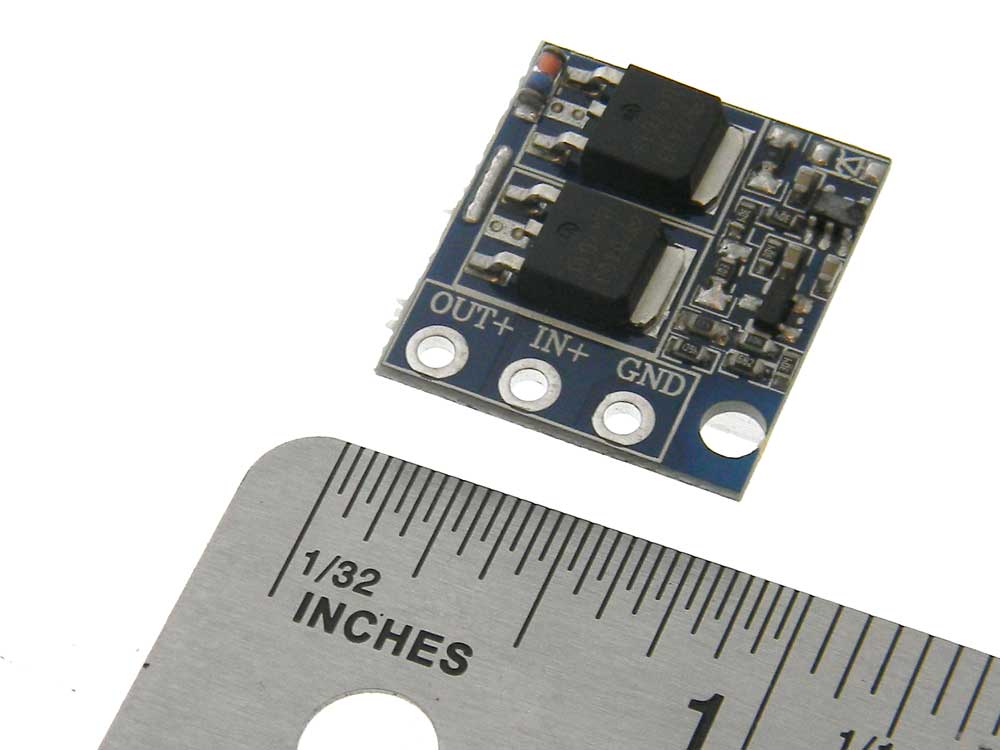

Small module designed as a "Ideal Diode" with a very low Vf (Forward Drop). Features 2 D403 very low resistance P-Channel MOS transistors with associated components.
Used to prevent reverse current in Solar Systems, Chargers, Parallel Battery systems.
Input: 4-28VDC
Current: 10A Rated 15A (max.) Surge: 18A
Additional Heatsinking recommended at >10A
Operating Current: .7mA @ 12VDC
Operating Temperature: - 40 ~ + 85 C
Connection: Solder Terminals
Typical Forward Drop:
Load 2A: voltage drop 0.0086 V
Load 5A: voltage drop 0.022 V
Load 8A: voltage drop 0.036 V
Load 10A: voltage drop 0.042 V
Load 12A: voltage drop 0.052 V
Load 15A: voltage drop 0.075 V
L: 22mm W: 20mm T: 8mm WT: .01

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Chromium which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov


 Product ReviewsClick here to review this item
Excellant for following a buck or boost converter that backfeeds!
I used this to follow a 20A buck converter, that was draining over 60mA from a 12V VRLA battery, when de-energized. I only observed about a 200uA burden, with the supply off, and <30mV across it with a 4A load. CAUTION: Unlike a real diode, this device will allow reverse current for the first second or two if the output is connected to a battery!
- Joe Stanko, IL
