Reflective Obstacle Sensor

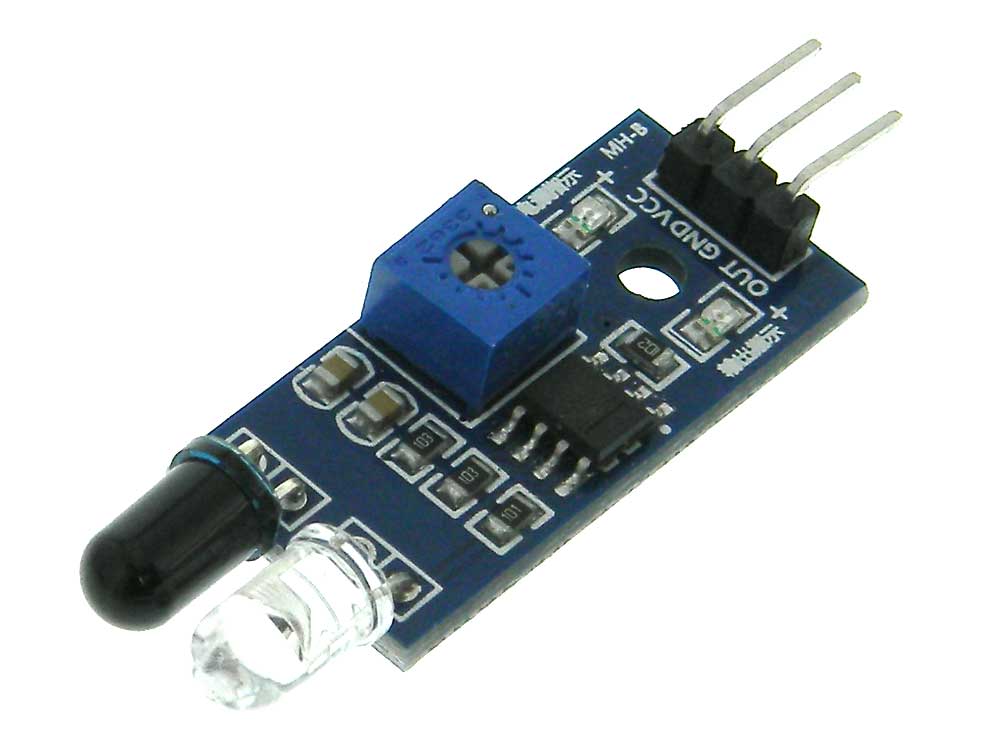

The sensor has a I/R LED and a I/R detecting photo transistor. Transistor is connected to a LM393 voltage comparator IC with adjustable trigger level. The detection distance is a function of target reflectivity and shape. The LED indicator turns on when an object is detected (Output switches LOW). The output can be connected directly to a microcontroller port or add a driver transistor to the output, & it could switch a relay or other loads exceeding 20mA.
Power: 3.3V to 5V
Supply Current < 1mA (LEDs off)
LEDs: 2: Red for Power and Green for Detection
Output: Digital TTL Current sink 20mA, 10K Pull-up
Connections: 3Pin, .1in. Pitch Header. L: 47mm OA W: 14mm H: 8mm WT: .02
