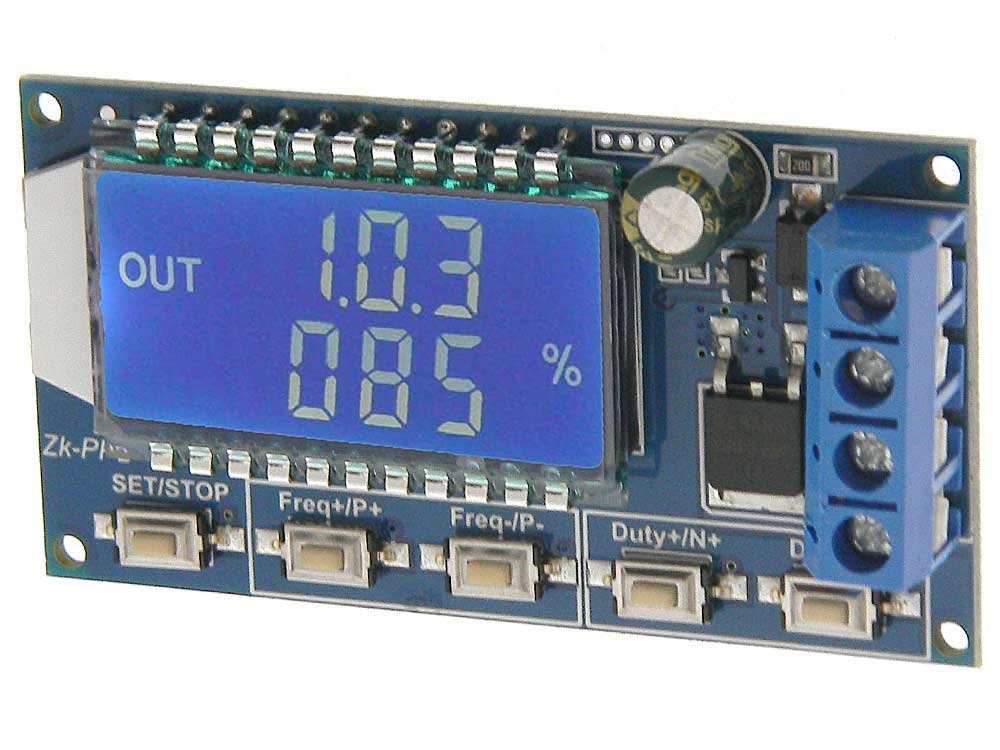

High-power PWM dimming speed control module

High-power PWM dimming speed control module

36128-large.jpg    California Proposition 65 Warning
Stock No: 36128 MD
 Review Average:
 Number of Reviews: 3
 View ReviewsReview this item
$8.95
$6.95


Availibilty: In Stock   Units: 50
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description

View PDF Data Sheet
DATA SHEET



Dual mode generator that you can select PWM or PULSE with adjust frequency and Duty Cycle. Direct drive LEDs, Motor, solenoid valve
Retains settings with power off.
Backlit LCD display.
Input: 3.3V-30VDC
Output: 8A max
Output Amplitude: ~Same as Input Voltage
Frequency range:1Hz~150KHz +-2%
Duty Cycle Range: 0.00%-99%
PULSE MODE
Adj, Number of pulses:1~9999 or Infinite
Adj. Pulse Delay:0.000s~9999s
Adj: Pulse Width:0.000s~9999s
Timing Accuracy: ~1ms
Temperature Range:-40C~85C
Humidity:0%~95%RH
L: 2-3/3" W: 1-1/4" H: 1/2" WT: .04

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov


 Product ReviewsClick here to review this item
Works great
I used this to control the speed of my DC box fan. Cheap, easy to install, and works great!
- Frank K, OR

Great Idea
It uses a AOB4184 transistor so you can drive small motors directly form the part.
- Doyle S, CT

Failed
Evidently not short circuit protected. I hooked it up to a 12V 1A current limit supply. Output got shorted during test with DC motor. The output transistor open circuited.
CA
