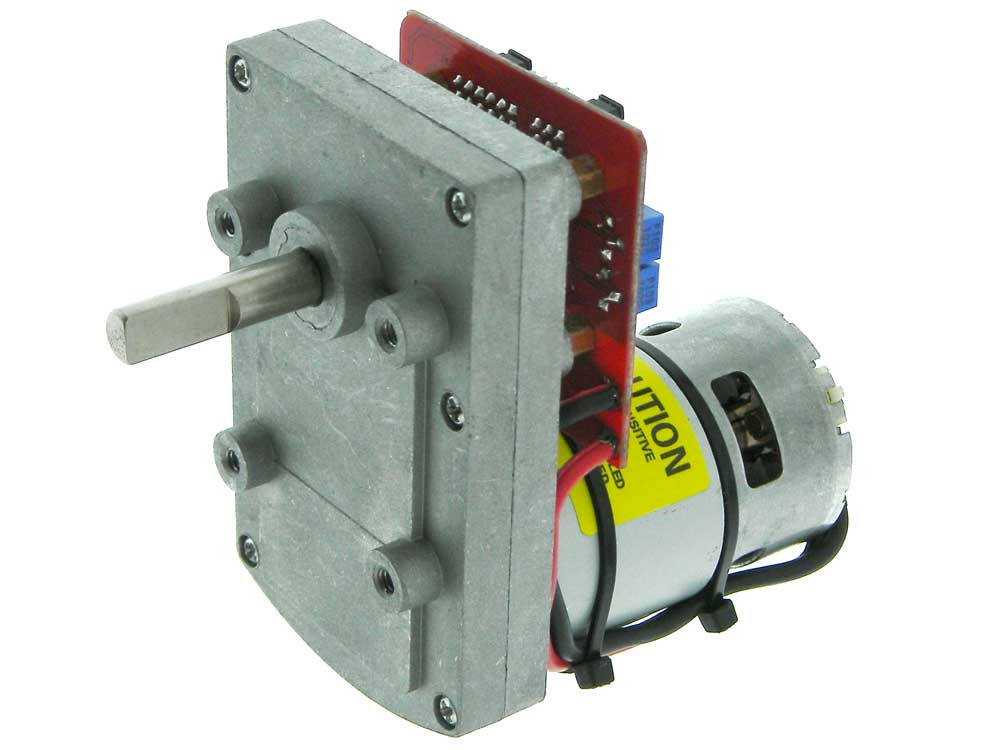

High Torque Servo Motor for Robotics
Heavy duty servo motor with metal case & metal gears for robotic arms etc.
Rated
Voltage: 12-24VDC
Current: 500mA No Load
Shaft: 8mm Dia. X 30mm (15mm "D")
Max Torque: 380kg/cm @ 24V,
190kg/cm @ 12V,
Speed: 0.5Sec/60deg @ 24V 1.0sec/60deg @12V
Rotation: 300deg. Max Adjustable
Control Accuracy: 0.32deg.
Input: Dual Modes:
PWM: Digital from R/C servo controller or Microcontroller
Selectable: 0.5mS-2.5mS for wide range servo controllers
1mS-2mS for Microcontrollers (Arduino etc)
Analog Voltage: 0-5VDC with external variable resistor >10k
Connections:
Terminal Strip for Power
3 X 0.1”Pitch Header Pins for Analog Pot
3 X 0.1”Pitch Header Pins for PWM from Controller
4x M4-0.7 mounting Holes H: 3-7/8” O/A W: 2-38” T: 5” O/A WT: 1.7
