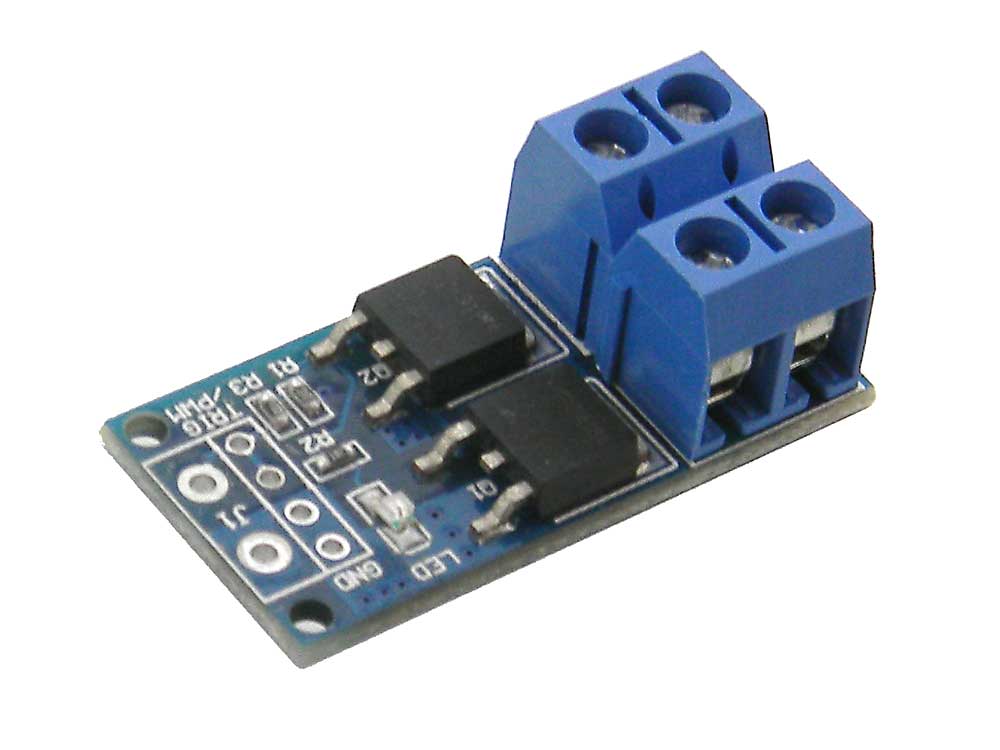

High Power MOS Driver Module 400W

High Power MOS Driver Module 400W

35379-large.jpg  35379-1.jpg    California Proposition 65 Warning
Stock No: 35379 MP
 Review Average:
 Number of Reviews: 2
 View ReviewsReview this item
$1.95
$1.20


Availibilty: In Stock   Units: 370
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description

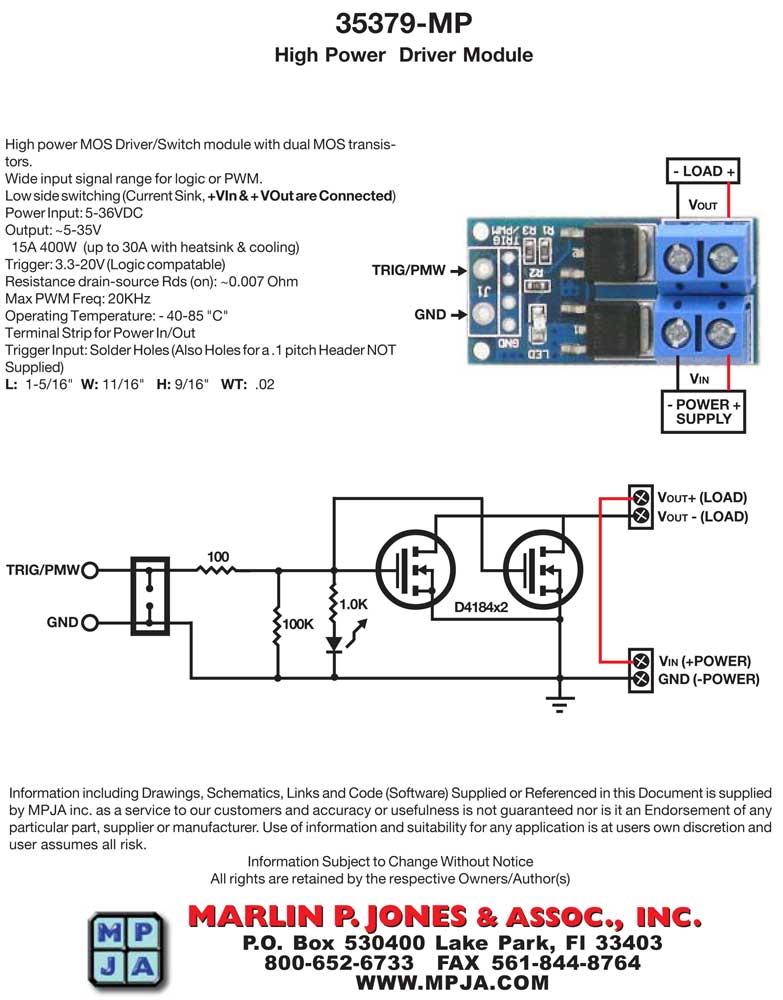

View PDF Data Sheet
DATA SHEET


High power MOS Driver/Switch module with dual MOS transistors.
Wide input signal range for logic or PWM.
Low side switching ( Current Sink, +In & + Out are Connected)
Power Input: 5-36VDC
Output: ~5-35V
15A 400W (up to 30A with heatsink & cooling)
Trigger: 3.3-20V (Logic compatable)
Resistance drain-source Rds (on): ~0.007 Ohm
Max PWM Freq: 20KHz
Operating Temperature: - 40-85 "C"
Terminal Strip for Power In/Out
Trigger Input: Solder Holes (Also Holes for a .1 pitch Header NOT Supplied)
L: 1-5/16" W: 11/16" H: 9/16" WT: .02

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov


 Product ReviewsClick here to review this item
Nice!
Great module for the price. Worked perfectly for controlling a Peltier cooler from an Arduino.

Verified Purchase
Positive feedback rating Great item. Great price. Fast shipping
