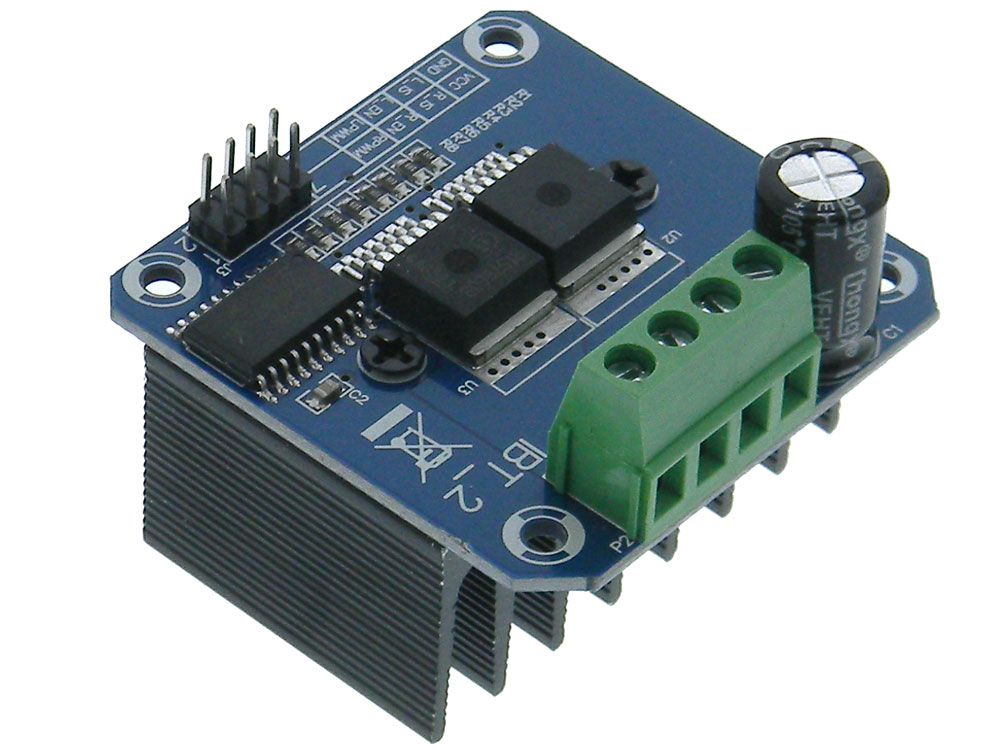

High current "H" bridge module for motor drive applications using dual BTS7960 chips. Built-in themperature & current protection. Logic level inputs to interface to a microcontroller.
Only four wires (GND, 5V, RPWM & LPWM) are needed from the microcontroller to the drive module.
Logic: 5V (From Microcontroller)
Motor supply & Logic share common Ground.
Maximum current: 43A
Logic level Inputs: 3.3-5V
Control method: PWM (Up to 25KHz) or logic level
Duty cycle: 0-100%
Terminal Strip for Motor & Motor Power.
2x4 0.1" Pitch header for logic & 5V SQ: 2" H: 1-1/2" WT: .15 SQ: 2" H: 1-1/2" WT: .15
