Hi-Gain Micro/Millivolt Amplifier Module

Hi-Gain Micro/Millivolt Amplifier Module

35489-large.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 35489 MP

Be the first to review this item
$7.95


Availibilty: In Stock   Units: 53
Quantity


SHARE
   Share
Email this to a friend

 Detailed Description
View PDF Data Sheet
DATA SHEET

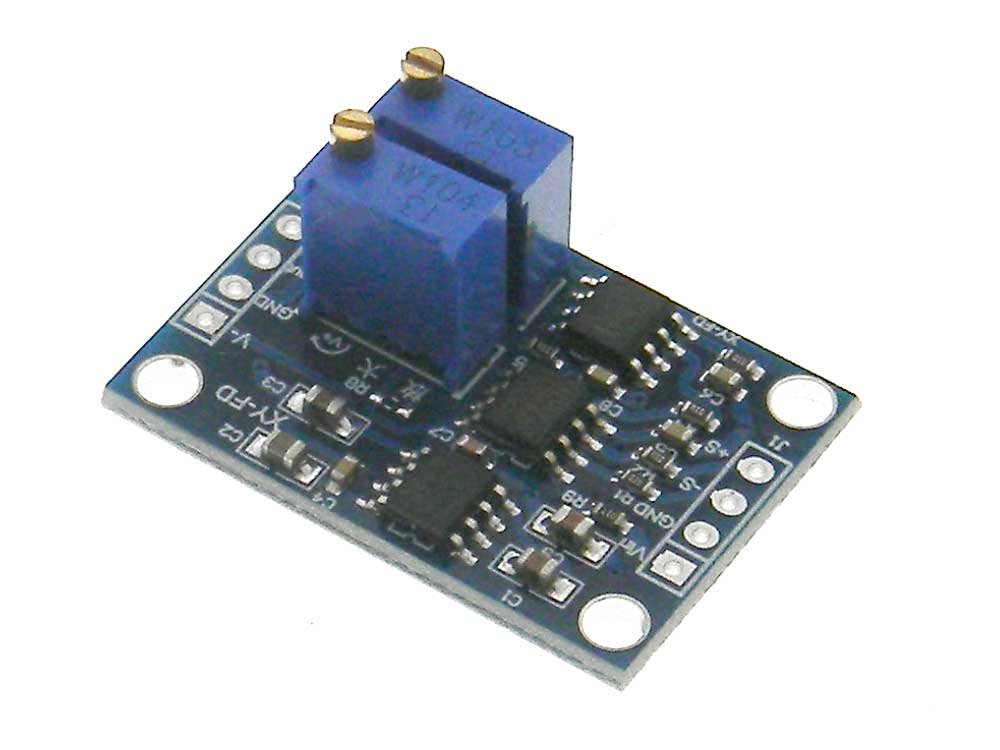

High gain instrumentation amplifier designed around the AD620. Capable of amplifying V/millivolt AC or DC signals.
Single ended or Differential iinput
(Differential Mode is used with sensors with differential output)
This is a High Gain/Sensitive amp; Careful shielding, power filtering and connections should be observed
On Board Voltage minus voltage generator TP7660
to power external sensors requiring a -V (Mirrors+Vin)
Output Buffer Amp LM358
Adjustable gain Pot.
Adjustable Offset ("Zero") Pot.
Supply Range: 3-12VDC
Gain: 1.5-1000 times
Signal Input Voltage: 100uV - 300mV DC/AC
Signal Output Range: (Vin-2V)
Offset Voltage: 50V
Input Bias Current: 1.0nA (max)
Common Mode Rejection Ratio: 100 dB
Offset Voltage Drift: 0.6V/"C" (maximum)
Stability: 2V/month maximum
L: 32mm W: 22mm H: 45 mm WT: .01

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
