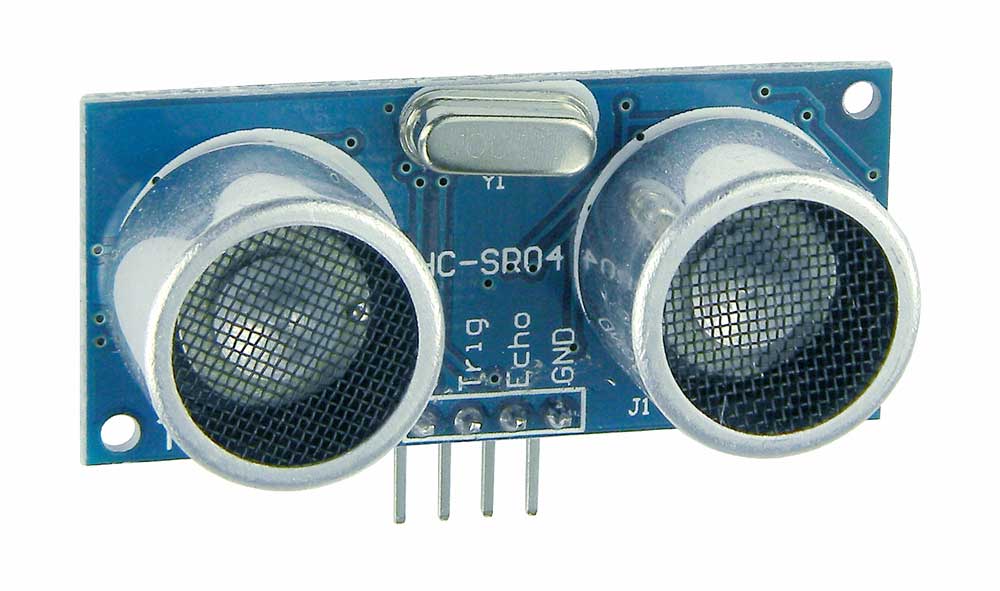

HC-SR04 Ultrasonic Ranging for Arduino

HC-SR04 Ultrasonic Ranging for Arduino

19605-large.jpg  360-3D.jpg    California Proposition 65 Warning
Stock No: 19605 UT
 Review Average:
 Number of Reviews: 3
 View ReviewsReview this item

Availibilty: In Stock   Units: 79

Email this to a friend

 Detailed Description
We do not include any printed materials of the following "Data Sheets". You will need to print from the following Document(s).
View PDF Data Sheet

40KHz Ultrasonic ranging module. Designed for incorporation in equipment, robots etc. Used to determine the distance to a target. Features high accuracy, non-contact, stable measurements in a simple 4 connection +5VDC module. Module "Pings" a target when triggered then outputs a logic pulse proportional to the distance.
Power: 5VDC
Range: ~2cm-~2.5m
Resolution: >0.5cm
L: 1-3/4" W: 7/8" HT: 5/8" WT: .02

California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

 Product ReviewsClick here to review this item
Datasheet needs correction
I bought two of these for an upcoming automotive project. Neither unit would trigger when following the info in the datasheet. The trigger pulse is actually a high-to-low transition and not visa-versa. After I discovered this, they work fine and will likely be suitable for my intended purpose. Five stars for the product, four stars for the incorrect info.
- Chadwick Pryson, TN
Lots of applications !
Built one for the garage for parking. Built one for the RV to measure distance in front for parking. Built one for a Stamp Robot. Works great and I have a few more ready for other apps.
- Jim Schings, KY
The possibilities are endless with this sensor.
So far, I have used these sensors for two projects using Arduinos. 1. I have one set up to let me know how far Ive backed into the garage. 2. I made a Fast-Pitch game for parties. The sensor can measure the distance of a baseball between two intervals and then calculate the speed of the ball. Lots of fun.
- William Justic, IL
