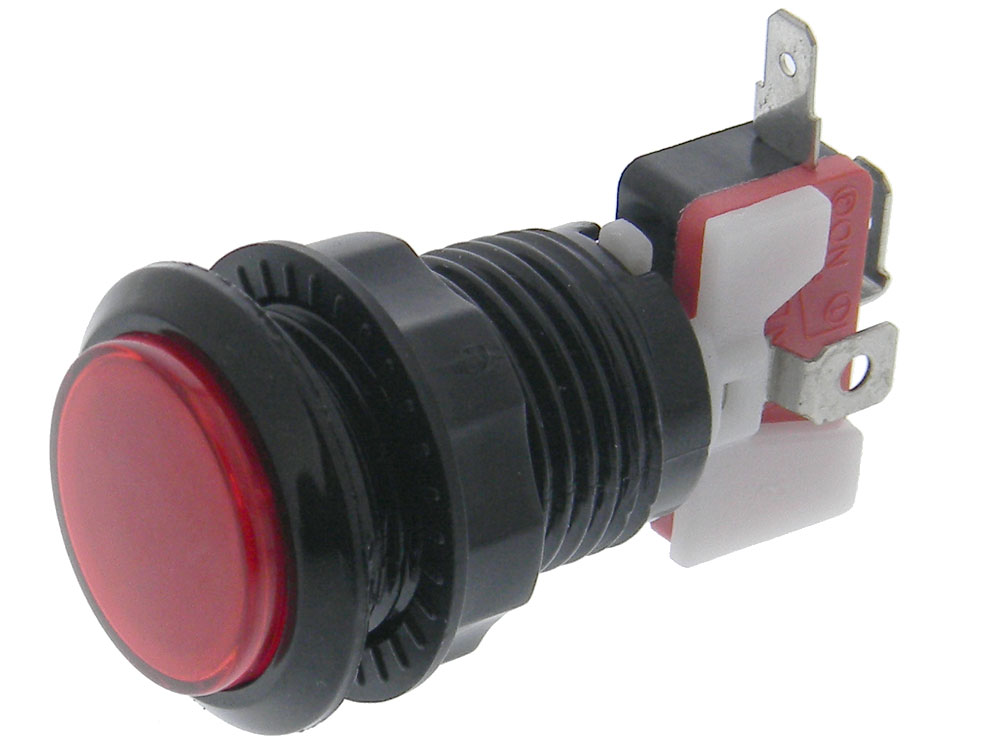

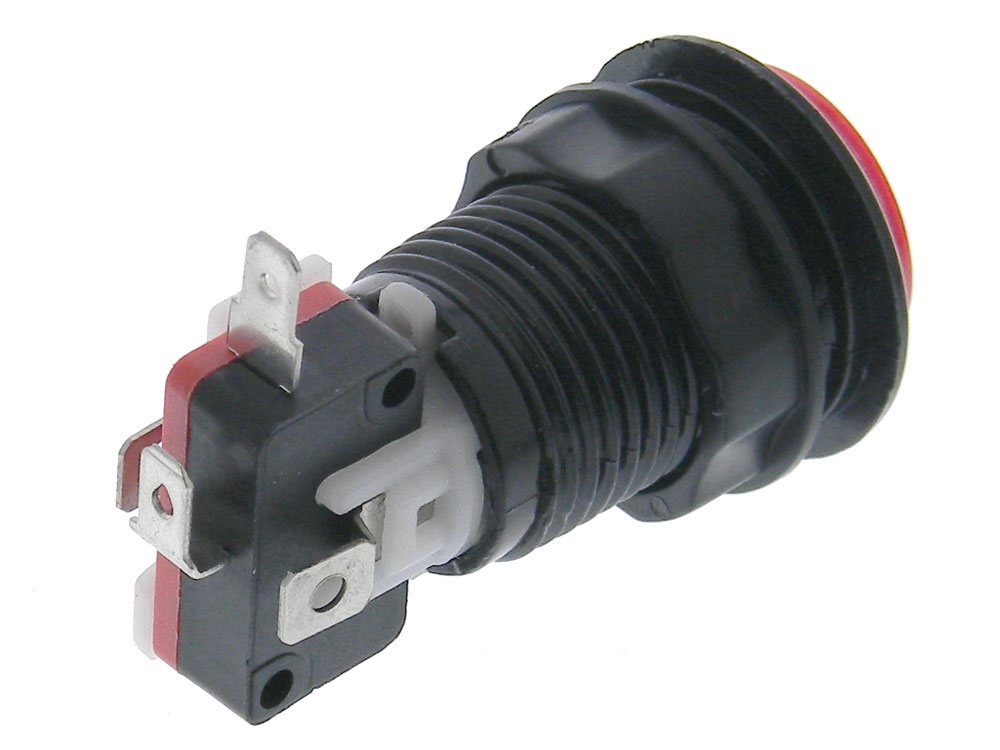

Large SPST-NO Pushbutton switch for game consoles, Control Panels etc. Snap Switch & LED have Separate Terminals.
12VDC rated Red LED.
Switch Contacts: 3A @ 250VAC.
NOTE: You must check and note LED polarity when assembling.

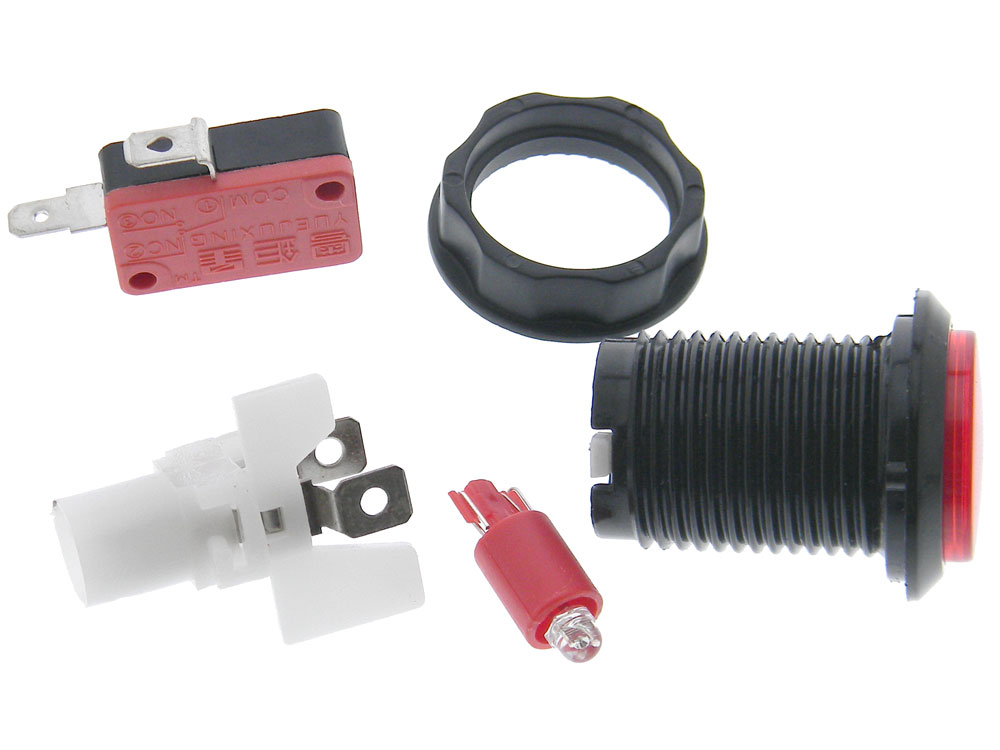

Body must mount through panel before attaching LED/Switch assembly.
Terminals: .250 Quick Connect
Mounts in a 24mm hole. Dia: 33mm L: 64mm O/A WT: .06
