Detailed Description

View PDF Data Sheet
DATA SHEET

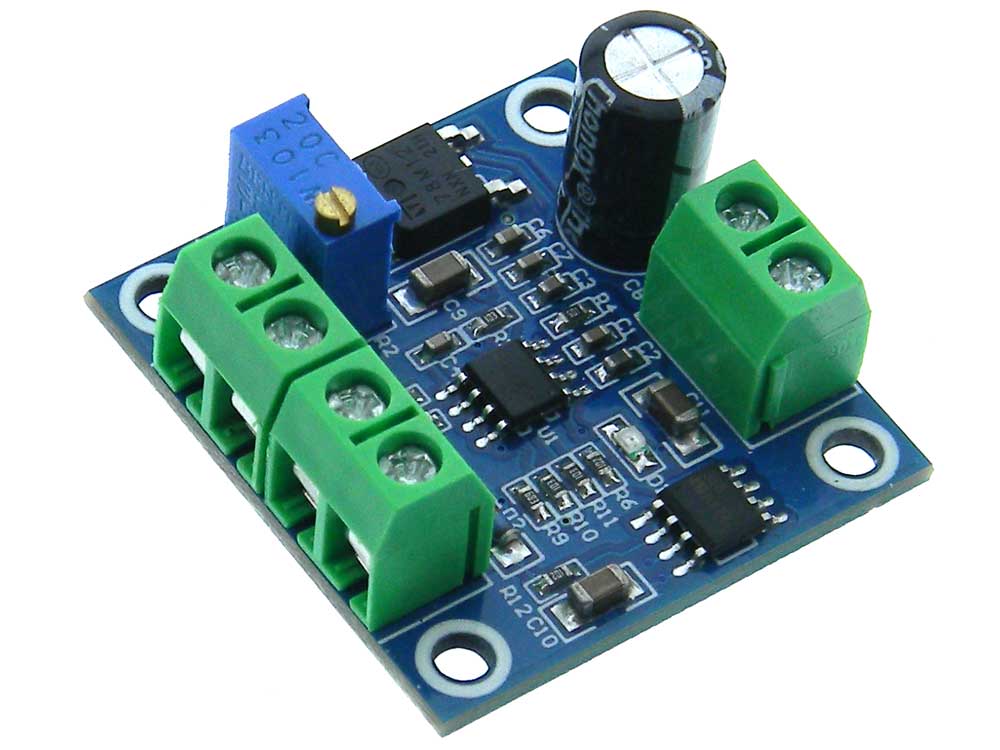

Small module used tto convert a low frequency pulse signal into analog voltage signal.
Power: 13.5 - 30VDC
Input Pulse Voltage: 5-24V (On Board Opto-coupler)
Input Frquency Range: 0-1KHz
Output Analog Voltage: 0-10VDC
Accuracy: ~1%
Response Time: <0.5sec.
L: 34mm (1-5/16") W: 32.6mm (1-3/8") H: 16mm (9/16") WT: .02



California Proposition 65 Warning WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer and which is known to the State of California to cause birth defects and/or other reproductive harm. For more information, go to www.P65Warnings.ca.gov



 Product ReviewsClick here to review this item
OK, But response time real poor.
Meets the claimed specs EXCEPT for response time. It claims a response time of less than .5 seconds. Not even close. To go from 100 Hz to 1Khz, is more like 20 or 30 seconds before stabilized. (Up or down.) I checked at all the different frequencies and at different supply voltages.
james schings
